Showing:

Annotations
Attributes
Diagrams
Instances
Model
Properties
Source
Used by
Main schema StrategicPlanISOVersion20140401.xsd
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Properties
attribute form default unqualified
element form default qualified
version 1.1

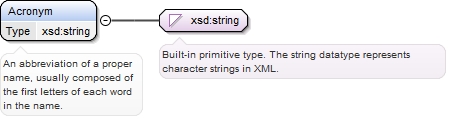

Element stratml:Acronym
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Annotations

documentation

An abbreviation of a proper name, usually composed of the first letters of each word in the name.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source
<xsd:element name="Acronym" type="xsd:string" id="uuid-a21e6dc4-b67c-4120-b881-ce72882fc958">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">An abbreviation of a proper name, usually composed of the first letters of each word in the name.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

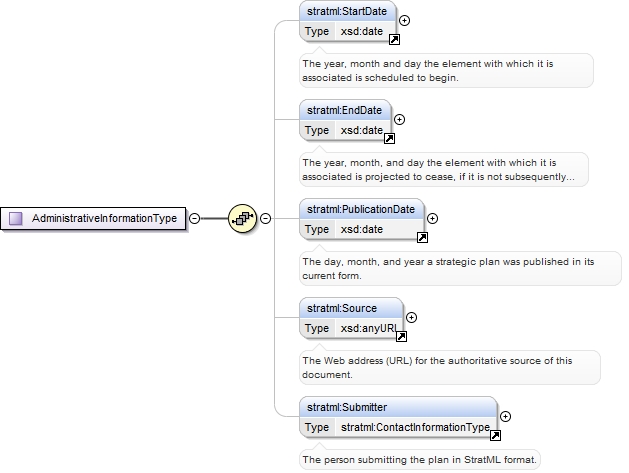

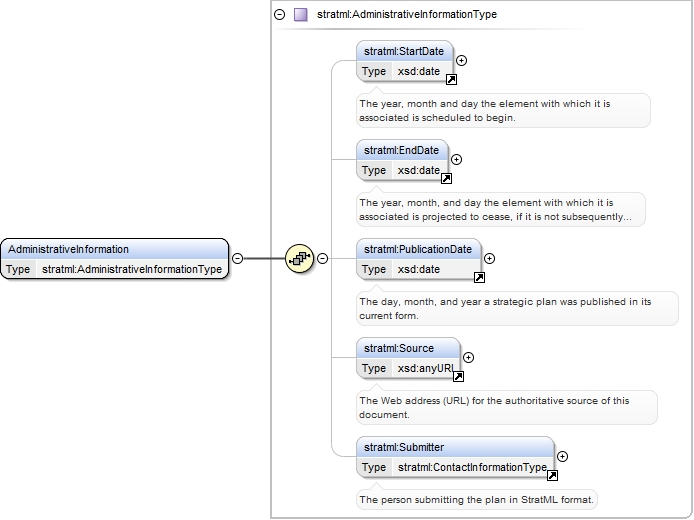

Element stratml:AdministrativeInformation
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Diagram
Diagram urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#StartDate urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#EndDate urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#PublicationDate urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Source urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Submitter urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#AdministrativeInformationType
Type stratml:AdministrativeInformationType
Properties
content complex
Used by
Model
Children stratml:EndDate, stratml:PublicationDate, stratml:Source, stratml:StartDate, stratml:Submitter
Instance
<stratml:AdministrativeInformation xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:stratml_core">
  <stratml:StartDate>{0,1}</stratml:StartDate>
  <stratml:EndDate>{0,1}</stratml:EndDate>
  <stratml:PublicationDate>{0,1}</stratml:PublicationDate>
  <stratml:Source>{0,1}</stratml:Source>
  <stratml:Submitter>{0,1}</stratml:Submitter>
</stratml:AdministrativeInformation>
Source
<xsd:element name="AdministrativeInformation" type="stratml:AdministrativeInformationType" id="uuid-9d240214-9768-4dd9-b98a-c62448b63f26"/>

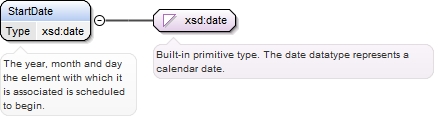

Element stratml:StartDate
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Annotations

documentation

The year, month and day the element with which it is associated is scheduled to begin.
Diagram
Diagram
Type xsd:date
Properties
content simple
Used by
Source
<xsd:element name="StartDate" type="xsd:date" id="uuid-11a1e9c3-959b-4c2e-b3de-5e1296eb6ab3">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">The year, month and day the element with which it is associated is scheduled to begin.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

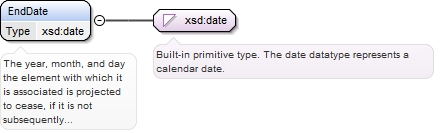

Element stratml:EndDate
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Annotations

documentation

The year, month, and day the element with which it is associated is projected to cease, if it is not subsequently extended. Typically the end of a calendar or fiscal year.
Diagram
Diagram
Type xsd:date
Properties
content simple
Used by
Source
<xsd:element name="EndDate" type="xsd:date" id="uuid-19977fd4-556d-41bc-be29-477e05e4c971">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">The year, month, and day the element with which it is associated is projected to cease, if it is not subsequently extended. Typically the end of a calendar or fiscal year.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

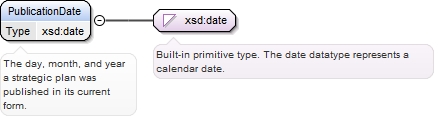

Element stratml:PublicationDate
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Annotations

documentation

The day, month, and year a strategic plan was published in its current form.
Diagram
Diagram
Type xsd:date
Properties
content simple
Used by
Source
<xsd:element name="PublicationDate" type="xsd:date" id="uuid-04d8f96c-b5fc-458e-8de4-f5e2746e8b8b">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">The day, month, and year a strategic plan was published in its current form.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

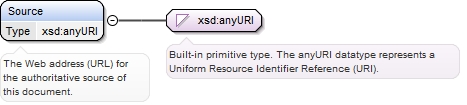

Element stratml:Source
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Annotations

documentation

The Web address (URL) for the authoritative source of this document.
Diagram
Diagram
Type xsd:anyURI
Properties
content simple
Used by
Source
<xsd:element name="Source" type="xsd:anyURI" id="uuid-03b90177-d13b-4e32-ada9-7c7a1eb1703b">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">The Web address (URL) for the authoritative source of this document.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

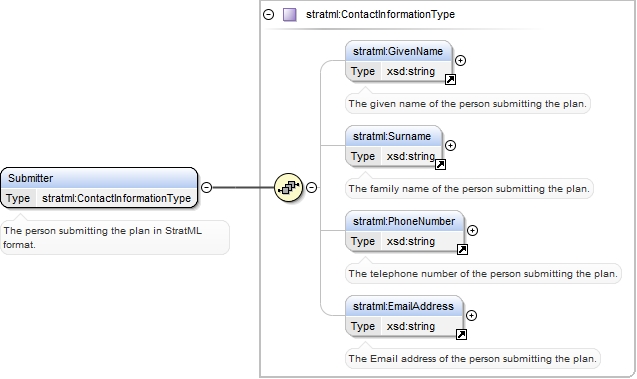

Element stratml:Submitter
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Annotations

documentation

The person submitting the plan in StratML format.
Diagram
Diagram urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#GivenName urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Surname urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#PhoneNumber urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#EmailAddress urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#ContactInformationType

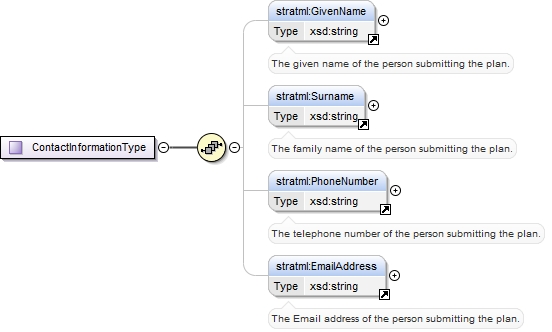

Type stratml:ContactInformationType
Properties
content complex
Used by
Model
Children stratml:EmailAddress, stratml:GivenName, stratml:PhoneNumber, stratml:Surname
Instance
<stratml:Submitter xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:stratml_core">
  <stratml:GivenName>{0,1}</stratml:GivenName>
  <stratml:Surname>{0,1}</stratml:Surname>
  <stratml:PhoneNumber>{0,1}</stratml:PhoneNumber>
  <stratml:EmailAddress>{0,1}</stratml:EmailAddress>
</stratml:Submitter>
Source
<xsd:element name="Submitter" type="stratml:ContactInformationType" id="uuid-1dec258f-1656-4173-acfe-677c1cf24bf3">
  <xsd:annotation>
    <xsd:documentation source="documentation">The person submitting the plan in StratML format.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:GivenName
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Annotations

documentation

The given name of the person submitting the plan.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source
<xsd:element name="GivenName" type="xsd:string" id="uuid-a8c3e55c-96f2-404a-97b5-16022d9369ac">
  <xsd:annotation>
    <xsd:documentation source="documentation">The given name of the person submitting the plan.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:Surname
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Annotations

documentation

The family name of the person submitting the plan.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source
<xsd:element name="Surname" type="xsd:string" id="uuid-d48842b4-9324-4f71-9502-1a991b707b38">
  <xsd:annotation>
    <xsd:documentation source="documentation">The family name of the person submitting the plan.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

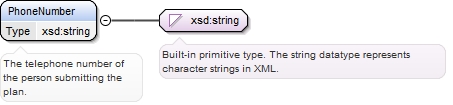

Element stratml:PhoneNumber
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Annotations

documentation

The telephone number of the person submitting the plan.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source
<xsd:element name="PhoneNumber" type="xsd:string" id="uuid-9084c2d2-4b7e-4189-a784-a86a4469a01c">
  <xsd:annotation>
    <xsd:documentation source="documentation">The telephone number of the person submitting the plan.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:EmailAddress
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Annotations

documentation

The Email address of the person submitting the plan.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source
<xsd:element name="EmailAddress" type="xsd:string" id="uuid-412bb450-d116-4dec-9269-a92209232df1">
  <xsd:annotation>
    <xsd:documentation source="documentation">The Email address of the person submitting the plan.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

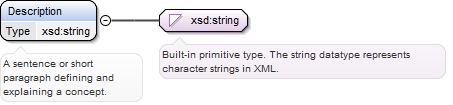

Element stratml:Description
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Annotations

documentation

A sentence or short paragraph defining and explaining a concept.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source
<xsd:element name="Description" type="xsd:string" id="uuid-6289635d-98a7-40bd-978c-37ae6ede5f7e">
  <xsd:annotation>
    <xsd:documentation source="documentation">A sentence or short paragraph defining and explaining a concept.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

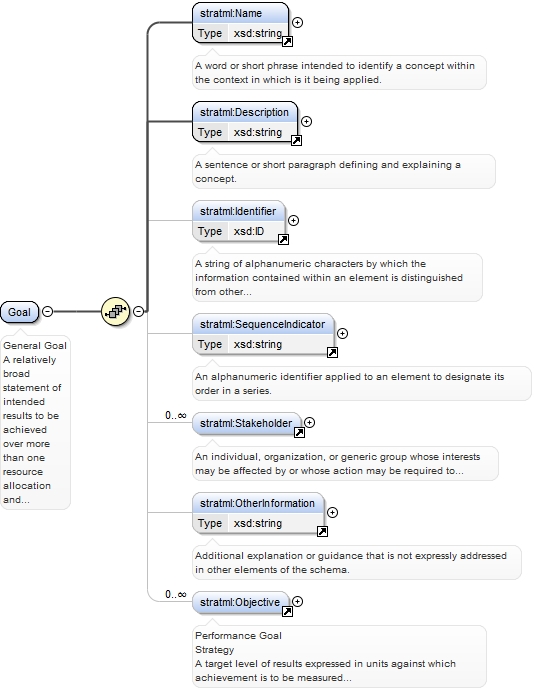

Element stratml:Goal
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Annotations

documentation

General Goal

documentation

A relatively broad statement of intended results to be achieved over more than one resource allocation and performance measurement cycle.

documentation

Supports Mission
Diagram
Diagram urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Name urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Description urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Identifier urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#SequenceIndicator urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Stakeholder urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#OtherInformation urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Objective
Properties
content complex
Used by
Model
Children stratml:Description, stratml:Identifier, stratml:Name, stratml:Objective, stratml:OtherInformation, stratml:SequenceIndicator, stratml:Stakeholder
Instance
<stratml:Goal xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:stratml_core">
  <stratml:Name>{1,1}</stratml:Name>
  <stratml:Description>{1,1}</stratml:Description>
  <stratml:Identifier>{0,1}</stratml:Identifier>
  <stratml:SequenceIndicator>{0,1}</stratml:SequenceIndicator>
  <stratml:Stakeholder StakeholderTypeType="">{0,unbounded}</stratml:Stakeholder>
  <stratml:OtherInformation>{0,1}</stratml:OtherInformation>
  <stratml:Objective>{0,unbounded}</stratml:Objective>
</stratml:Goal>
Source
<xsd:element name="Goal" id="uuid-1e56b2c9-c6d6-4f79-8ad7-cdb1508a9614">
  <xsd:annotation>
    <xsd:documentation source="documentation">General Goal</xsd:documentation>
    <xsd:documentation source="documentation">A relatively broad statement of intended results to be achieved over more than one resource allocation and performance measurement cycle.</xsd:documentation>
    <xsd:documentation source="documentation">Supports Mission</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:Name" id="uuid-0b19dff1-b98e-470f-ac80-92a755d8aa37"/>
      <xsd:element ref="stratml:Description" id="uuid-b454f40f-721c-42a1-ba43-3a56ef37766e"/>
      <xsd:element ref="stratml:Identifier" id="uuid-f0543f96-c5be-4d77-a86d-d2f04122a5ea" minOccurs="0"/>
      <xsd:element ref="stratml:SequenceIndicator" id="uuid-af23adab-d9d6-46b2-a627-8cd2547d8192" minOccurs="0"/>
      <xsd:element ref="stratml:Stakeholder" id="uuid-93270a8d-75b5-4052-974e-19e5bd9c5931" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="stratml:OtherInformation" id="uuid-edd05fe8-91ca-4511-8f5b-c360ac07ebe8" minOccurs="0"/>
      <xsd:element ref="stratml:Objective" id="uuid-f0648650-fa4d-49a3-bb6e-e1ca03894334" minOccurs="0" maxOccurs="unbounded"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

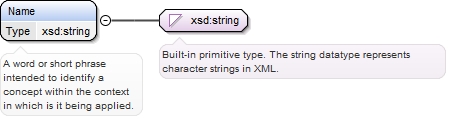

Element stratml:Name
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Annotations

documentation

A word or short phrase intended to identify a concept within the context in which is it being applied.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source
<xsd:element name="Name" type="xsd:string" id="uuid-f6300ca4-40bc-455c-a963-dfef45f558d3">
  <xsd:annotation>
    <xsd:documentation source="documentation">A word or short phrase intended to identify a concept within the context in which is it being applied.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

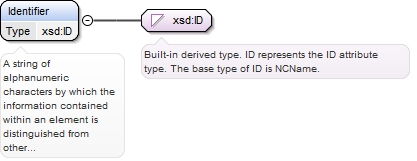

Element stratml:Identifier
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Annotations

documentation

A string of alphanumeric characters by which the information contained within an element is distinguished from other versions of the same information as well as information contained in other instances of the same element.
Diagram
Diagram
Type xsd:ID
Properties
content simple
Used by
Source
<xsd:element name="Identifier" type="xsd:ID" id="uuid-a9cee972-59f3-42a9-8876-03bd0166689c">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A string of alphanumeric characters by which the information contained within an element is distinguished from other versions of the same information as well as information contained in other instances of the same element.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

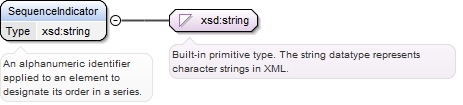

Element stratml:SequenceIndicator
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Annotations

documentation

An alphanumeric identifier applied to an element to designate its order in a series.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source
<xsd:element name="SequenceIndicator" type="xsd:string" id="uuid-7f10f639-e7cf-4513-804c-5f4f7592c5e5">
  <xsd:annotation>
    <xsd:documentation source="documentation">An alphanumeric identifier applied to an element to designate its order in a series.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

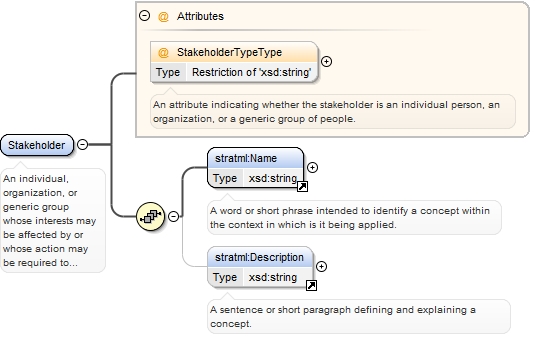

Element stratml:Stakeholder
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Annotations

documentation

An individual, organization, or generic group whose interests may be affected by or whose action may be required to achieve a goal or objective.
Diagram
Diagram NO_NAMESPACE.tmp#Stakeholder_StakeholderTypeType urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Name urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Description
Properties
content complex
Used by
Model
Children stratml:Description, stratml:Name
Instance
<stratml:Stakeholder StakeholderTypeType="" xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:stratml_core">
  <stratml:Name>{1,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:Stakeholder>
Attributes
QName Type Use Annotation
StakeholderTypeType restriction of xsd:string optional

documentation

An attribute indicating whether the stakeholder is an individual person, an organization, or a generic group of people.
Source
<xsd:element name="Stakeholder" id="uuid-1effcb49-9462-4c9b-bdc2-92971c9fc9cf">
  <xsd:annotation>
    <xsd:documentation source="documentation">An individual, organization, or generic group whose interests may be affected by or whose action may be required to achieve a goal or objective.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:Name" id="uuid-35cc454d-43d4-46b2-a548-eeb3ff8605dd"/>
      <xsd:element ref="stratml:Description" id="uuid-7e18eb24-475c-4bcf-a3c4-1c43adaf127c" minOccurs="0"/>
    </xsd:sequence>
    <xsd:attribute name="StakeholderTypeType" use="optional" id="uuid-F64605F4-D372-487C-9C5D-D68F1031BA86">
      <xsd:annotation>
        <xsd:documentation source="documentation" xml:lang="EN">An attribute indicating whether the stakeholder is an individual person, an organization, or a generic group of people.</xsd:documentation>
      </xsd:annotation>
      <xsd:simpleType>
        <xsd:restriction base="xsd:string">
          <xsd:enumeration value="Person"/>
          <xsd:enumeration value="Organization"/>
          <xsd:enumeration value="Generic_Group"/>
        </xsd:restriction>
      </xsd:simpleType>
    </xsd:attribute>
  </xsd:complexType>
</xsd:element>

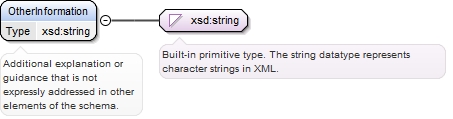

Element stratml:OtherInformation
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Annotations

documentation

Additional explanation or guidance that is not expressly addressed in other elements of the schema.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source
<xsd:element name="OtherInformation" type="xsd:string" id="uuid-2cfca418-05c2-4fa1-b233-d1bd60d0d86a">
  <xsd:annotation>
    <xsd:documentation source="documentation">Additional explanation or guidance that is not expressly addressed in other elements of the schema.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

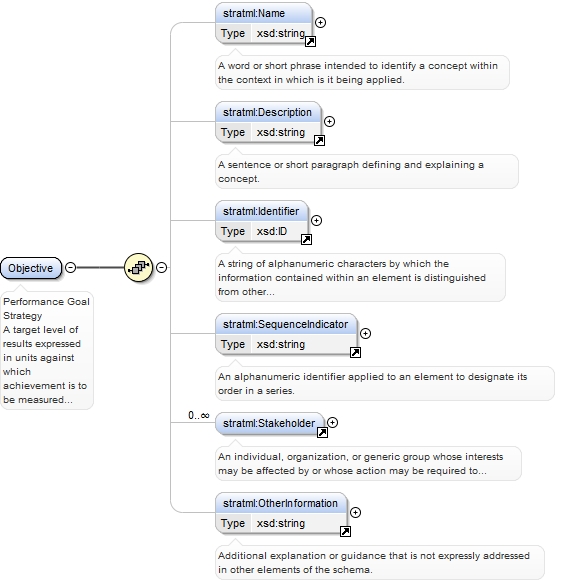

Element stratml:Objective
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Annotations

documentation

Performance Goal

documentation

Strategy

documentation

A target level of results expressed in units against which achievement is to be measured within a single resource allocation and performance execution cycle.
Diagram
Diagram urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Name urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Description urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Identifier urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#SequenceIndicator urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Stakeholder urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#OtherInformation
Properties
content complex
Used by
Element stratml:Goal
Model
Children stratml:Description, stratml:Identifier, stratml:Name, stratml:OtherInformation, stratml:SequenceIndicator, stratml:Stakeholder
Instance
<stratml:Objective xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:stratml_core">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
  <stratml:Identifier>{0,1}</stratml:Identifier>
  <stratml:SequenceIndicator>{0,1}</stratml:SequenceIndicator>
  <stratml:Stakeholder StakeholderTypeType="">{0,unbounded}</stratml:Stakeholder>
  <stratml:OtherInformation>{0,1}</stratml:OtherInformation>
</stratml:Objective>
Source
<xsd:element name="Objective" id="uuid-2c39ac60-63c1-4c50-8ec6-26ea646c173b">
  <xsd:annotation>
    <xsd:documentation source="documentation">Performance Goal</xsd:documentation>
    <xsd:documentation source="documentation">Strategy</xsd:documentation>
    <xsd:documentation source="documentation">A target level of results expressed in units against which achievement is to be measured within a single resource allocation and performance execution cycle.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:Name" id="uuid-36e8852b-2761-460d-b911-0c01c7bdecd3" minOccurs="0"/>
      <xsd:element ref="stratml:Description" id="uuid-687daacf-3b29-4e91-b1e7-8e9191d17338" minOccurs="0"/>
      <xsd:element ref="stratml:Identifier" id="uuid-8e762c3e-85b6-4f5c-93d1-a2513667507f" minOccurs="0"/>
      <xsd:element ref="stratml:SequenceIndicator" id="uuid-abbc7e84-6083-4c89-9c8e-30a9d09616d2" minOccurs="0"/>
      <xsd:element ref="stratml:Stakeholder" id="uuid-3c9c0a38-4d9b-4641-a0f0-f05e722e6f4c" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="stratml:OtherInformation" id="uuid-75d113e5-ae18-4c6f-87ca-1811557471fb" minOccurs="0"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

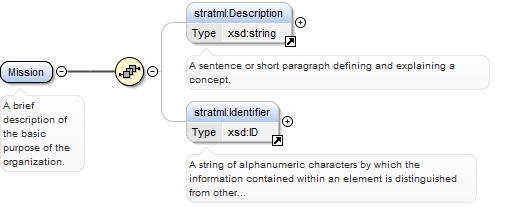

Element stratml:Mission
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Annotations

documentation

A brief description of the basic purpose of the organization.
Diagram
Diagram urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Description urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Identifier
Properties
content complex
Used by
Model
Children stratml:Description, stratml:Identifier
Instance
<stratml:Mission xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:stratml_core">
  <stratml:Description>{0,1}</stratml:Description>
  <stratml:Identifier>{0,1}</stratml:Identifier>
</stratml:Mission>
Source
<xsd:element name="Mission" id="uuid-755706ea-40d6-40f0-a8e5-998b91390620">
  <xsd:annotation>
    <xsd:documentation source="documentation">A brief description of the basic purpose of the organization.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:Description" id="uuid-d4000d59-fc40-4f93-bbae-f92de9808818" minOccurs="0"/>
      <xsd:element ref="stratml:Identifier" id="uuid-e8484845-ea0e-47f3-8fe2-55b54db21202" minOccurs="0"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

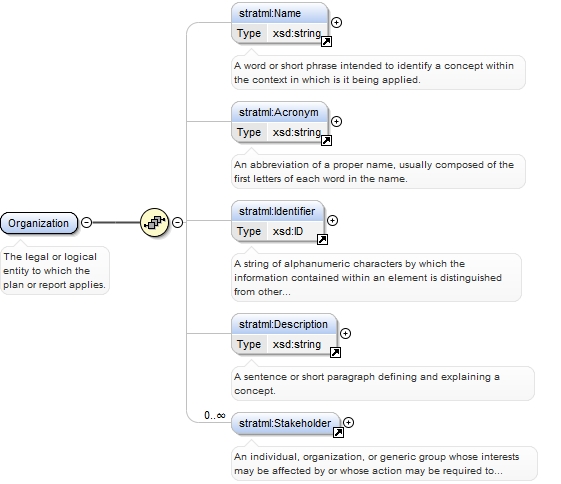

Element stratml:Organization
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Annotations

documentation

The legal or logical entity to which the plan or report applies.
Diagram
Diagram urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Name urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Acronym urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Identifier urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Description urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Stakeholder
Properties
content complex
Used by
Model
Children stratml:Acronym, stratml:Description, stratml:Identifier, stratml:Name, stratml:Stakeholder
Instance
<stratml:Organization xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:stratml_core">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Acronym>{0,1}</stratml:Acronym>
  <stratml:Identifier>{0,1}</stratml:Identifier>
  <stratml:Description>{0,1}</stratml:Description>
  <stratml:Stakeholder StakeholderTypeType="">{0,unbounded}</stratml:Stakeholder>
</stratml:Organization>
Source
<xsd:element name="Organization" id="uuid-9d589d53-ec24-4c18-b5db-5be8075c1be5">
  <xsd:annotation>
    <xsd:documentation source="documentation">The legal or logical entity to which the plan or report applies.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:Name" id="uuid-e871651e-e943-4414-b0b6-eb1f5754f3be" minOccurs="0"/>
      <xsd:element ref="stratml:Acronym" id="uuid-eb510ea2-9d70-40ec-95f1-abdf6644e002" minOccurs="0"/>
      <xsd:element ref="stratml:Identifier" id="uuid-d5b4b082-8326-46a8-a475-533813a4ed29" minOccurs="0"/>
      <xsd:element ref="stratml:Description" id="uuid-2741f038-8123-4644-a649-dcf19a773673" minOccurs="0"/>
      <xsd:element ref="stratml:Stakeholder" id="uuid-d9bccbbf-67ae-402c-8914-56d12c1a7190" minOccurs="0" maxOccurs="unbounded"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

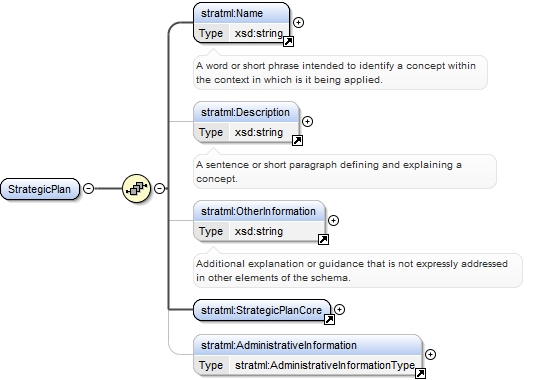

Element stratml:StrategicPlan
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Diagram
Diagram urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Name urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Description urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#OtherInformation urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#StrategicPlanCore urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#AdministrativeInformation
Properties
content complex
Model
Children stratml:AdministrativeInformation, stratml:Description, stratml:Name, stratml:OtherInformation, stratml:StrategicPlanCore
Instance
<stratml:StrategicPlan xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:stratml_core">
  <stratml:Name>{1,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
  <stratml:OtherInformation>{0,1}</stratml:OtherInformation>
  <stratml:StrategicPlanCore>{1,1}</stratml:StrategicPlanCore>
  <stratml:AdministrativeInformation>{0,1}</stratml:AdministrativeInformation>
</stratml:StrategicPlan>
Source
<xsd:element name="StrategicPlan" id="uuid-63a6e34c-737d-4d24-955b-bbf72d8c1511">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:Name" id="uuid-eeb5b011-9843-4fa3-a280-1af6bb3477f4"/>
      <xsd:element ref="stratml:Description" id="uuid-8e497247-1d8b-4f09-8332-06d3666f1dae" minOccurs="0"/>
      <xsd:element ref="stratml:OtherInformation" id="uuid-63f013cf-6bd3-4050-a4b3-0eaa33bea69a" minOccurs="0"/>
      <xsd:element ref="stratml:StrategicPlanCore" id="uuid-314a1a55-714a-4b74-85da-4fc705457800"/>
      <xsd:element ref="stratml:AdministrativeInformation" id="uuid-1453760d-6cf8-4916-8c45-862adde59002" minOccurs="0"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

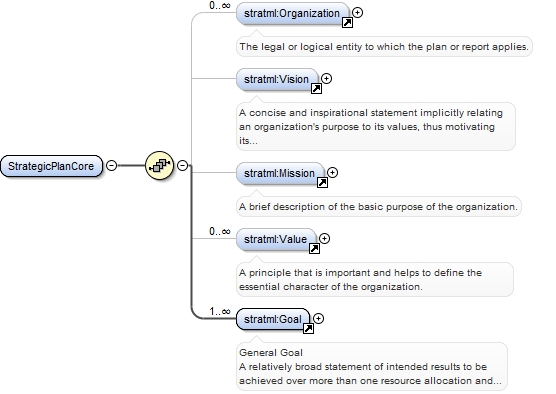

Element stratml:StrategicPlanCore
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Diagram
Diagram urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Organization urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Vision urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Mission urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Value urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Goal
Properties
content complex
Used by
Model
Children stratml:Goal, stratml:Mission, stratml:Organization, stratml:Value, stratml:Vision
Instance
<stratml:StrategicPlanCore xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:stratml_core">
  <stratml:Organization>{0,unbounded}</stratml:Organization>
  <stratml:Vision>{0,1}</stratml:Vision>
  <stratml:Mission>{0,1}</stratml:Mission>
  <stratml:Value>{0,unbounded}</stratml:Value>
  <stratml:Goal>{1,unbounded}</stratml:Goal>
</stratml:StrategicPlanCore>
Source
<xsd:element name="StrategicPlanCore" id="uuid-ce9c9293-e374-4800-8d62-9ee87d0c9887">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:Organization" id="uuid-f8d6372e-52e8-4a60-ab1c-274aad8bcf33" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="stratml:Vision" id="uuid-d4dbdad8-0cdd-4294-b091-b8bec961d03b" minOccurs="0"/>
      <xsd:element ref="stratml:Mission" id="uuid-f66bec3e-2714-49ec-8e15-8820cecba9ae" minOccurs="0"/>
      <xsd:element ref="stratml:Value" id="uuid-1ab0aa31-a42f-410e-8b2c-29c22eed8a77" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="stratml:Goal" id="uuid-294b80a3-7288-4477-9458-35292f7a47c3" maxOccurs="unbounded"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

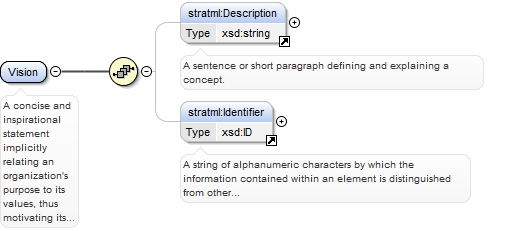

Element stratml:Vision
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Annotations

documentation

A concise and inspirational statement implicitly relating an organization's purpose to its values, thus motivating its actions toward a future state it strives to achieve.
Diagram
Diagram urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Description urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Identifier
Properties
content complex
Used by
Model
Children stratml:Description, stratml:Identifier
Instance
<stratml:Vision xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:stratml_core">
  <stratml:Description>{0,1}</stratml:Description>
  <stratml:Identifier>{0,1}</stratml:Identifier>
</stratml:Vision>
Source
<xsd:element name="Vision" id="uuid-5e02d6ec-d669-47c4-b443-e7716bd27528">
  <xsd:annotation>
    <xsd:documentation source="documentation">A concise and inspirational statement implicitly relating an organization's purpose to its values, thus motivating its actions toward a future state it strives to achieve.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:Description" id="uuid-8201c15c-8206-49f3-9bd3-d816209a8b3c" minOccurs="0"/>
      <xsd:element ref="stratml:Identifier" id="uuid-333e71c6-6b27-4bd2-bf39-c6e7b69d0404" minOccurs="0"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

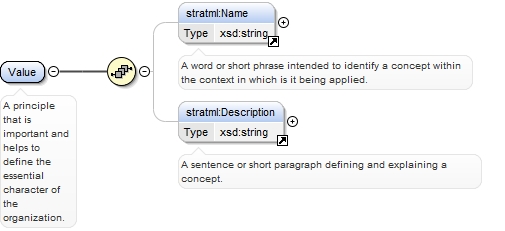

Element stratml:Value
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Annotations

documentation

A principle that is important and helps to define the essential character of the organization.
Diagram
Diagram urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Name urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Description
Properties
content complex
Used by
Model
Children stratml:Description, stratml:Name
Instance
<stratml:Value xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:stratml_core">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:Value>
Source
<xsd:element name="Value" id="uuid-50f98ade-573c-4afa-8696-1d0e4a2c7ff3">
  <xsd:annotation>
    <xsd:documentation source="documentation">A principle that is important and helps to define the essential character of the organization.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:Name" id="uuid-54768289-ad1d-4983-8b30-081f6b1fdeb3" minOccurs="0"/>
      <xsd:element ref="stratml:Description" id="uuid-f285ccf3-d061-47a5-ac0d-873a8971883b" minOccurs="0"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>
Complex Type stratml:AdministrativeInformationType
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Diagram
Diagram urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#StartDate urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#EndDate urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#PublicationDate urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Source urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Submitter
Used by
Model
Children stratml:EndDate, stratml:PublicationDate, stratml:Source, stratml:StartDate, stratml:Submitter
Source
<xsd:complexType name="AdministrativeInformationType" id="uuid-32864389-230a-4f77-9c09-c083386fcad9">
  <xsd:sequence>
    <xsd:element ref="stratml:StartDate" id="uuid-9bafe734-ca3f-4d53-bbb1-2d904412a09e" minOccurs="0"/>
    <xsd:element ref="stratml:EndDate" id="uuid-42642fba-a33a-469b-b1e0-d37b8782a741" minOccurs="0"/>
    <xsd:element ref="stratml:PublicationDate" id="uuid-6ebfbf00-e08c-4118-8980-aba1f91c3936" minOccurs="0"/>
    <xsd:element ref="stratml:Source" id="uuid-f2e49267-3f70-497a-827e-3b65644badd8" minOccurs="0"/>
    <xsd:element ref="stratml:Submitter" id="uuid-6db73538-b4f3-449c-8715-90bb794a6caa" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>
Complex Type stratml:ContactInformationType
Namespace urn:ISO:std:iso:17469:tech:xsd:stratml_core
Diagram
Diagram urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#GivenName urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#Surname urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#PhoneNumber urn_ISO_std_iso_17469_tech_xsd_stratml_core.tmp#EmailAddress
Used by
Model
Children stratml:EmailAddress, stratml:GivenName, stratml:PhoneNumber, stratml:Surname
Source
<xsd:complexType name="ContactInformationType" id="uuid-b07e1586-6676-4212-8a6a-4a365a4977ec">
  <xsd:sequence>
    <xsd:element ref="stratml:GivenName" id="uuid-be2396f2-cdf9-498c-82ef-1ce1b9209086" minOccurs="0"/>
    <xsd:element ref="stratml:Surname" id="uuid-3d5034e0-328a-46a0-b5fb-776e070cca5f" minOccurs="0"/>
    <xsd:element ref="stratml:PhoneNumber" id="uuid-160fe527-9d1d-423a-bc95-ad48f3257276" minOccurs="0"/>
    <xsd:element ref="stratml:EmailAddress" id="uuid-9e408a3b-034a-486f-b045-7cc74505b44d" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>
