urn:oasis:names:tc:emergency:EDXL:DE:2.0

Elements
Complex Types
Simple Types

urn:oasis:names:tc:emergency:edxl:ct:1.0

Resource hierarchy:

Main schema edxl-de-v2.0-wd09.xsd
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Properties
attribute form default unqualified
element form default qualified
version 1.0CD
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Imported schema edxl-de-dvl-v2.0-wd09.xsd
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Properties
attribute form default unqualified
element form default qualified
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Element EDXLDistribution
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#DEEnvelopeType_DistributionID edxl-de-v2.0-wd09.tmp#DEEnvelopeType_SenderID edxl-de-v2.0-wd09.tmp#DEEnvelopeType_DateTimeSent edxl-de-v2.0-wd09.tmp#DEEnvelopeType_DateTimeExpires edxl-de-v2.0-wd09.tmp#DEEnvelopeType_DistributionStatus edxl-de-v2.0-wd09.tmp#DEEnvelopeType_DistributionKind edxl-de-v2.0-wd09.tmp#DEEnvelopeType edxl-de-v2.0-wd09.tmp#Descriptor edxl-de-v2.0-wd09.tmp#Content edxl-de-v2.0-wd09.tmp#DEDistributionType_Other edxl-de-v2.0-wd09.tmp#DEDistributionType
Type DEDistributionType
Type hierarchy
Properties
content complex
Model
Children Content, DateTimeExpires, DateTimeSent, Descriptor, DistributionID, DistributionKind, DistributionStatus, Other, SenderID
Instance

<EDXLDistribution xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0">
  <DistributionID>{1,1}</DistributionID>
  <SenderID>{1,1}</SenderID>
  <DateTimeSent>{1,1}</DateTimeSent>
  <DateTimeExpires>{1,1}</DateTimeExpires>
  <DistributionStatus>{1,1}</DistributionStatus>
  <DistributionKind>{1,1}</DistributionKind>
  <Descriptor>{0,1}</Descriptor>
  <Content>{0,1}</Content>
  <Other>{0,unbounded}</Other>
</EDXLDistribution>
Source

<xs:element name="EDXLDistribution" type="DEDistributionType"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DEEnvelopeType / DistributionID
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type EDXLStringType
Properties
content simple
minOccurs 1
Source

<xs:element name="DistributionID" type="ct:EDXLStringType" minOccurs="1"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DEEnvelopeType / SenderID
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type EDXLStringType
Properties
content simple
minOccurs 1
Source

<xs:element name="SenderID" type="ct:EDXLStringType" minOccurs="1"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DEEnvelopeType / DateTimeSent
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type EDXLDateTimeType
Properties
content simple
minOccurs 1
Source

<xs:element name="DateTimeSent" type="ct:EDXLDateTimeType" minOccurs="1"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DEEnvelopeType / DateTimeExpires
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type EDXLDateTimeType
Properties
content simple
minOccurs 1
Source

<xs:element name="DateTimeExpires" type="ct:EDXLDateTimeType" minOccurs="1"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]

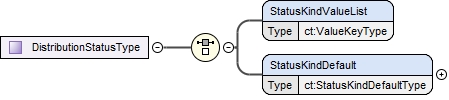

Element DEEnvelopeType / DistributionStatus
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#DistributionStatusType_StatusKindValueList edxl-de-v2.0-wd09.tmp#DistributionStatusType_StatusKindDefault edxl-de-v2.0-wd09.tmp#DistributionStatusType
Type DistributionStatusType
Properties
content complex
minOccurs 1
Model
Children StatusKindDefault, StatusKindValueList
Instance

<DistributionStatus xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0">
  <StatusKindValueList>{1,1}</StatusKindValueList>
  <StatusKindDefault>{1,1}</StatusKindDefault>
</DistributionStatus>
Source

<xs:element name="DistributionStatus" type="DistributionStatusType" minOccurs="1"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DistributionStatusType / StatusKindValueList
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type ValueKeyType
Properties
content simple
Source

<xs:element name="StatusKindValueList" type="ct:ValueKeyType"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DistributionStatusType / StatusKindDefault
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#StatusKindDefaultType_ValueListURI edxl-de-v2.0-wd09.tmp#StatusKindDefaultType_Value edxl-de-v2.0-wd09.tmp#StatusKindDefaultType
Type ct:StatusKindDefaultType
Type hierarchy
Properties
content complex
Model
Children ct:Value, ct:ValueListURI
Instance

<StatusKindDefault xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0" xmlns:ct="urn:oasis:names:tc:emergency:edxl:ct:1.0">
  <ct:ValueListURI>{1,1}</ct:ValueListURI>
  <ct:Value>{1,1}</ct:Value>
</StatusKindDefault>
Source

<xs:element name="StatusKindDefault" type="ct:StatusKindDefaultType"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element ct:StatusKindDefaultType / ct:ValueListURI
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#StatusKindDefaultURI
Type ct:StatusKindDefaultURI
Type hierarchy
Properties
content simple
Source

<xs:element name="ValueListURI" type="ct:StatusKindDefaultURI"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Element ct:StatusKindDefaultType / ct:Value
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#StatusKindDefaultValues
Type ct:StatusKindDefaultValues
Type hierarchy
Properties
content simple
Source

<xs:element name="Value" type="ct:StatusKindDefaultValues"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]

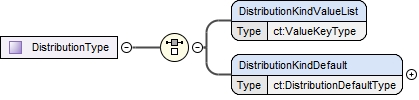

Element DEEnvelopeType / DistributionKind
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#DistributionType_DistributionKindValueList edxl-de-v2.0-wd09.tmp#DistributionType_DistributionKindDefault edxl-de-v2.0-wd09.tmp#DistributionType
Type DistributionType
Properties
content complex
minOccurs 1
Model
Children DistributionKindDefault, DistributionKindValueList
Instance

<DistributionKind xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0">
  <DistributionKindValueList>{1,1}</DistributionKindValueList>
  <DistributionKindDefault>{1,1}</DistributionKindDefault>
</DistributionKind>
Source

<xs:element name="DistributionKind" type="DistributionType" minOccurs="1"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DistributionType / DistributionKindValueList
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type ValueKeyType
Properties
content simple
Source

<xs:element name="DistributionKindValueList" type="ct:ValueKeyType"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DistributionType / DistributionKindDefault
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#DistributionDefaultType_ValueListURI edxl-de-v2.0-wd09.tmp#DistributionDefaultType_Value edxl-de-v2.0-wd09.tmp#DistributionDefaultType
Type ct:DistributionDefaultType
Type hierarchy
Properties
content complex
Model
Children ct:Value, ct:ValueListURI
Instance

<DistributionKindDefault xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0" xmlns:ct="urn:oasis:names:tc:emergency:edxl:ct:1.0">
  <ct:ValueListURI>{1,1}</ct:ValueListURI>
  <ct:Value>{1,1}</ct:Value>
</DistributionKindDefault>
Source

<xs:element name="DistributionKindDefault" type="ct:DistributionDefaultType"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element ct:DistributionDefaultType / ct:ValueListURI
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#DisTypeDefaultURI
Type ct:DisTypeDefaultURI
Type hierarchy
Properties
content simple
Source

<xs:element name="ValueListURI" type="ct:DisTypeDefaultURI"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Element ct:DistributionDefaultType / ct:Value
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#DistTypeDefaultValues
Type ct:DistTypeDefaultValues
Type hierarchy
Properties
content simple
Source

<xs:element name="Value" type="ct:DistTypeDefaultValues"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]

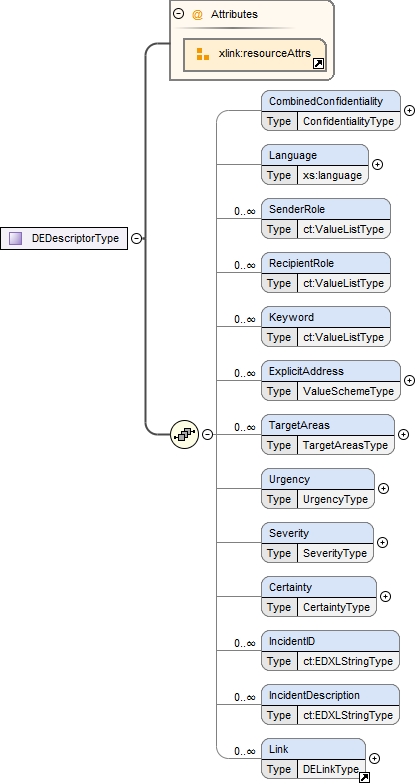

Element Descriptor
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#DEDescriptorType_CombinedConfidentiality edxl-de-v2.0-wd09.tmp#DEDescriptorType_Language edxl-de-v2.0-wd09.tmp#DEDescriptorType_SenderRole edxl-de-v2.0-wd09.tmp#DEDescriptorType_RecipientRole edxl-de-v2.0-wd09.tmp#DEDescriptorType_Keyword edxl-de-v2.0-wd09.tmp#DEDescriptorType_ExplicitAddress edxl-de-v2.0-wd09.tmp#DEDescriptorType_TargetAreas edxl-de-v2.0-wd09.tmp#DEDescriptorType_Urgency edxl-de-v2.0-wd09.tmp#DEDescriptorType_Severity edxl-de-v2.0-wd09.tmp#DEDescriptorType_Certainty edxl-de-v2.0-wd09.tmp#DEDescriptorType_IncidentID edxl-de-v2.0-wd09.tmp#DEDescriptorType_IncidentDescription edxl-de-v2.0-wd09.tmp#Link edxl-de-v2.0-wd09.tmp#DEDescriptorType
Type DEDescriptorType
Properties
content complex
Used by
Complex Type DEDistributionType
Model
Children Certainty, CombinedConfidentiality, ExplicitAddress, IncidentDescription, IncidentID, Keyword, Language, Link, RecipientRole, SenderRole, Severity, TargetAreas, Urgency
Instance

<Descriptor xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0">
  <CombinedConfidentiality>{0,1}</CombinedConfidentiality>
  <Language>{0,1}</Language>
  <SenderRole>{0,unbounded}</SenderRole>
  <RecipientRole>{0,unbounded}</RecipientRole>
  <Keyword>{0,unbounded}</Keyword>
  <ExplicitAddress>{0,unbounded}</ExplicitAddress>
  <TargetAreas>{0,unbounded}</TargetAreas>
  <Urgency>{0,1}</Urgency>
  <Severity>{0,1}</Severity>
  <Certainty>{0,1}</Certainty>
  <IncidentID>{0,unbounded}</IncidentID>
  <IncidentDescription>{0,unbounded}</IncidentDescription>
  <Link>{0,unbounded}</Link>
</Descriptor>
Source

<xs:element name="Descriptor" type="DEDescriptorType"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DEDescriptorType / CombinedConfidentiality
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#ConfidentialityType_ConfidentialityValueList edxl-de-v2.0-wd09.tmp#ConfidentialityType_ConfidentialityDefault edxl-de-v2.0-wd09.tmp#ConfidentialityType
Type ConfidentialityType
Properties
content complex
minOccurs 0
Model
Children ConfidentialityDefault, ConfidentialityValueList
Instance

<CombinedConfidentiality xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0">
  <ConfidentialityValueList>{1,1}</ConfidentialityValueList>
  <ConfidentialityDefault>{1,1}</ConfidentialityDefault>
</CombinedConfidentiality>
Source

<xs:element name="CombinedConfidentiality" type="ConfidentialityType" minOccurs="0"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element ConfidentialityType / ConfidentialityValueList
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type ValueKeyType
Properties
content simple
Source

<xs:element name="ConfidentialityValueList" type="ct:ValueKeyType"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element ConfidentialityType / ConfidentialityDefault
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#ConfidentialityDefaultType_ValueListURI edxl-de-v2.0-wd09.tmp#ConfidentialityDefaultType_Value edxl-de-v2.0-wd09.tmp#ConfidentialityDefaultType
Type ct:ConfidentialityDefaultType
Type hierarchy
Properties
content complex
Model
Children ct:Value, ct:ValueListURI
Instance

<ConfidentialityDefault xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0" xmlns:ct="urn:oasis:names:tc:emergency:edxl:ct:1.0">
  <ct:ValueListURI>{1,1}</ct:ValueListURI>
  <ct:Value>{1,1}</ct:Value>
</ConfidentialityDefault>
Source

<xs:element name="ConfidentialityDefault" type="ct:ConfidentialityDefaultType"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element ct:ConfidentialityDefaultType / ct:ValueListURI
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#ConfidentialityTypeDefaultURI
Type ct:ConfidentialityTypeDefaultURI
Type hierarchy
Properties
content simple
Source

<xs:element name="ValueListURI" type="ct:ConfidentialityTypeDefaultURI"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Element ct:ConfidentialityDefaultType / ct:Value
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#ConfidentialityTypeDefaultValues
Type ct:ConfidentialityTypeDefaultValues
Type hierarchy
Properties
content simple
Source

<xs:element name="Value" type="ct:ConfidentialityTypeDefaultValues"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Element DEDescriptorType / Language
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type xs:language
Properties
content simple
minOccurs 0
Source

<xs:element name="Language" type="xs:language" minOccurs="0"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DEDescriptorType / SenderRole
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type ValueListType
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source

<xs:element name="SenderRole" type="ct:ValueListType" minOccurs="0" maxOccurs="unbounded"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DEDescriptorType / RecipientRole
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type ValueListType
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source

<xs:element name="RecipientRole" type="ct:ValueListType" minOccurs="0" maxOccurs="unbounded"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DEDescriptorType / Keyword
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type ValueListType
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source

<xs:element name="Keyword" type="ct:ValueListType" minOccurs="0" maxOccurs="unbounded"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DEDescriptorType / ExplicitAddress
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram

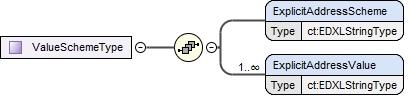

Diagram edxl-de-v2.0-wd09.tmp#ValueSchemeType_ExplicitAddressScheme edxl-de-v2.0-wd09.tmp#ValueSchemeType_ExplicitAddressValue edxl-de-v2.0-wd09.tmp#ValueSchemeType
Type ValueSchemeType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children ExplicitAddressScheme, ExplicitAddressValue
Instance

<ExplicitAddress xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0">
  <ExplicitAddressScheme>{1,1}</ExplicitAddressScheme>
  <ExplicitAddressValue>{1,unbounded}</ExplicitAddressValue>
</ExplicitAddress>
Source

<xs:element name="ExplicitAddress" type="ValueSchemeType" minOccurs="0" maxOccurs="unbounded"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element ValueSchemeType / ExplicitAddressScheme
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type EDXLStringType
Properties
content simple
Source

<xs:element name="ExplicitAddressScheme" type="ct:EDXLStringType"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element ValueSchemeType / ExplicitAddressValue
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type EDXLStringType
Properties
content simple
minOccurs 1
maxOccurs unbounded
Source

<xs:element name="ExplicitAddressValue" type="ct:EDXLStringType" minOccurs="1" maxOccurs="unbounded"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DEDescriptorType / TargetAreas
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#TargetAreasType_AreaKind edxl-de-v2.0-wd09.tmp#TargetAreasType_AreaGrouping edxl-de-v2.0-wd09.tmp#TargetAreasType_TargetArea edxl-de-v2.0-wd09.tmp#TargetAreasType
Type TargetAreasType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children AreaGrouping, AreaKind, TargetArea
Instance

<TargetAreas xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0">
  <AreaKind>{1,1}</AreaKind>
  <AreaGrouping>{1,1}</AreaGrouping>
  <TargetArea>{1,unbounded}</TargetArea>
</TargetAreas>
Source

<xs:element name="TargetAreas" type="TargetAreasType" minOccurs="0" maxOccurs="unbounded"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element TargetAreasType / AreaKind
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#AreaKindType_AreaKindValueList edxl-de-v2.0-wd09.tmp#AreaKindType_AreaKindDefault edxl-de-v2.0-wd09.tmp#AreaKindType
Type AreaKindType
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children AreaKindDefault, AreaKindValueList
Instance

<AreaKind xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0">
  <AreaKindValueList>{1,1}</AreaKindValueList>
  <AreaKindDefault>{1,1}</AreaKindDefault>
</AreaKind>
Source

<xs:element name="AreaKind" type="AreaKindType" minOccurs="1" maxOccurs="1"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element AreaKindType / AreaKindValueList
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type ValueKeyType
Properties
content simple
Source

<xs:element name="AreaKindValueList" type="ct:ValueKeyType"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element AreaKindType / AreaKindDefault
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#AreaKindDefaultType_ValueListURI edxl-de-v2.0-wd09.tmp#AreaKindDefaultType_Value edxl-de-v2.0-wd09.tmp#AreaKindDefaultType
Type ct:AreaKindDefaultType
Type hierarchy
Properties
content complex
Model
Children ct:Value, ct:ValueListURI
Instance

<AreaKindDefault xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0" xmlns:ct="urn:oasis:names:tc:emergency:edxl:ct:1.0">
  <ct:ValueListURI>{1,1}</ct:ValueListURI>
  <ct:Value>{1,1}</ct:Value>
</AreaKindDefault>
Source

<xs:element name="AreaKindDefault" type="ct:AreaKindDefaultType"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element ct:AreaKindDefaultType / ct:ValueListURI
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#AreaKindTypeDefaultURI
Type ct:AreaKindTypeDefaultURI
Type hierarchy
Properties
content simple
Source

<xs:element name="ValueListURI" type="ct:AreaKindTypeDefaultURI"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Element ct:AreaKindDefaultType / ct:Value
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#AreaKindTypeDefaultValues
Type ct:AreaKindTypeDefaultValues
Type hierarchy
Properties
content simple
Source

<xs:element name="Value" type="ct:AreaKindTypeDefaultValues"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Element TargetAreasType / AreaGrouping
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#AreaGroupingType
Type AreaGroupingType
Properties
content simple
minOccurs 1
maxOccurs 1
Facets
enumeration Intersection
enumeration Union
enumeration ExclusiveOr
enumeration Complement
enumeration OtherGroupingType
Source

<xs:element name="AreaGrouping" type="AreaGroupingType" minOccurs="1" maxOccurs="1"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element TargetAreasType / TargetArea
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#TargetAreaType_GeoPoliticalLocation edxl-de-v2.0-wd09.tmp#TargetAreaType
Type TargetAreaType
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
EDXLGeoLocation | GeoPoliticalLocation
Children EDXLGeoLocation, GeoPoliticalLocation
Instance

<TargetArea xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0">
  <EDXLGeoLocation>{1,1}</EDXLGeoLocation>
  <GeoPoliticalLocation>{1,1}</GeoPoliticalLocation>
</TargetArea>
Source

<xs:element name="TargetArea" type="TargetAreaType" minOccurs="1" maxOccurs="unbounded"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element TargetAreaType / GeoPoliticalLocation
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type EDXLGeoPoliticalLocationType
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element name="GeoPoliticalLocation" type="ct:EDXLGeoPoliticalLocationType" minOccurs="1" maxOccurs="1"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DEDescriptorType / Urgency
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#UrgencyType_UrgencyValueList edxl-de-v2.0-wd09.tmp#UrgencyType_UrgencyDefault edxl-de-v2.0-wd09.tmp#UrgencyType
Type UrgencyType
Properties
content complex
minOccurs 0
Model
Children UrgencyDefault, UrgencyValueList
Instance

<Urgency xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0">
  <UrgencyValueList>{1,1}</UrgencyValueList>
  <UrgencyDefault>{1,1}</UrgencyDefault>
</Urgency>
Source

<xs:element name="Urgency" type="UrgencyType" minOccurs="0"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element UrgencyType / UrgencyValueList
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type ValueKeyType
Properties
content simple
Source

<xs:element name="UrgencyValueList" type="ct:ValueKeyType"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element UrgencyType / UrgencyDefault
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#UrgencyDefaultType_ValueListURI edxl-de-v2.0-wd09.tmp#UrgencyDefaultType_Value edxl-de-v2.0-wd09.tmp#UrgencyDefaultType
Type ct:UrgencyDefaultType
Type hierarchy
Properties
content complex
Model
Children ct:Value, ct:ValueListURI
Instance

<UrgencyDefault xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0" xmlns:ct="urn:oasis:names:tc:emergency:edxl:ct:1.0">
  <ct:ValueListURI>{1,1}</ct:ValueListURI>
  <ct:Value>{1,1}</ct:Value>
</UrgencyDefault>
Source

<xs:element name="UrgencyDefault" type="ct:UrgencyDefaultType"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element ct:UrgencyDefaultType / ct:ValueListURI
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#UrgencyTypeDefaultURI
Type ct:UrgencyTypeDefaultURI
Type hierarchy
Properties
content simple
Source

<xs:element name="ValueListURI" type="ct:UrgencyTypeDefaultURI"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Element ct:UrgencyDefaultType / ct:Value
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#UrgencyTypeDefaultValues
Type ct:UrgencyTypeDefaultValues
Type hierarchy
Properties
content simple
Source

<xs:element name="Value" type="ct:UrgencyTypeDefaultValues"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Element DEDescriptorType / Severity
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#SeverityType_SeverityValueList edxl-de-v2.0-wd09.tmp#SeverityType_SeverityDefault edxl-de-v2.0-wd09.tmp#SeverityType
Type SeverityType
Properties
content complex
minOccurs 0
Model
Children SeverityDefault, SeverityValueList
Instance

<Severity xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0">
  <SeverityValueList>{1,1}</SeverityValueList>
  <SeverityDefault>{1,1}</SeverityDefault>
</Severity>
Source

<xs:element name="Severity" type="SeverityType" minOccurs="0"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element SeverityType / SeverityValueList
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type ValueKeyType
Properties
content simple
Source

<xs:element name="SeverityValueList" type="ct:ValueKeyType"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element SeverityType / SeverityDefault
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#SeverityDefaultType_ValueListURI edxl-de-v2.0-wd09.tmp#SeverityDefaultType_Value edxl-de-v2.0-wd09.tmp#SeverityDefaultType
Type ct:SeverityDefaultType
Type hierarchy
Properties
content complex
Model
Children ct:Value, ct:ValueListURI
Instance

<SeverityDefault xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0" xmlns:ct="urn:oasis:names:tc:emergency:edxl:ct:1.0">
  <ct:ValueListURI>{1,1}</ct:ValueListURI>
  <ct:Value>{1,1}</ct:Value>
</SeverityDefault>
Source

<xs:element name="SeverityDefault" type="ct:SeverityDefaultType"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element ct:SeverityDefaultType / ct:ValueListURI
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#SeverityTypeDefaultURI
Type ct:SeverityTypeDefaultURI
Type hierarchy
Properties
content simple
Source

<xs:element name="ValueListURI" type="ct:SeverityTypeDefaultURI"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Element ct:SeverityDefaultType / ct:Value
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#SeverityTypeDefaultValues
Type ct:SeverityTypeDefaultValues
Type hierarchy
Properties
content simple
Source

<xs:element name="Value" type="ct:SeverityTypeDefaultValues"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Element DEDescriptorType / Certainty
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#CertaintyType_CertaintyValueList edxl-de-v2.0-wd09.tmp#CertaintyType_CertaintyDefault edxl-de-v2.0-wd09.tmp#CertaintyType
Type CertaintyType
Properties
content complex
minOccurs 0
Model
Children CertaintyDefault, CertaintyValueList
Instance

<Certainty xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0">
  <CertaintyValueList>{1,1}</CertaintyValueList>
  <CertaintyDefault>{1,1}</CertaintyDefault>
</Certainty>
Source

<xs:element name="Certainty" type="CertaintyType" minOccurs="0"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element CertaintyType / CertaintyValueList
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type ValueKeyType
Properties
content simple
Source

<xs:element name="CertaintyValueList" type="ct:ValueKeyType"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element CertaintyType / CertaintyDefault
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#CertaintyDefaultType_ValueListURI edxl-de-v2.0-wd09.tmp#CertaintyDefaultType_Value edxl-de-v2.0-wd09.tmp#CertaintyDefaultType
Type ct:CertaintyDefaultType
Type hierarchy
Properties
content complex
Model
Children ct:Value, ct:ValueListURI
Instance

<CertaintyDefault xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0" xmlns:ct="urn:oasis:names:tc:emergency:edxl:ct:1.0">
  <ct:ValueListURI>{1,1}</ct:ValueListURI>
  <ct:Value>{1,1}</ct:Value>
</CertaintyDefault>
Source

<xs:element name="CertaintyDefault" type="ct:CertaintyDefaultType"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element ct:CertaintyDefaultType / ct:ValueListURI
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#CertaintyTypeDefaultURI
Type ct:CertaintyTypeDefaultURI
Type hierarchy
Properties
content simple
Source

<xs:element name="ValueListURI" type="ct:CertaintyTypeDefaultURI"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Element ct:CertaintyDefaultType / ct:Value
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#CertaintyTypeDefaultValues
Type ct:CertaintyTypeDefaultValues
Type hierarchy
Properties
content simple
Source

<xs:element name="Value" type="ct:CertaintyTypeDefaultValues"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Element DEDescriptorType / IncidentID
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type EDXLStringType
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source

<xs:element name="IncidentID" type="ct:EDXLStringType" minOccurs="0" maxOccurs="unbounded"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DEDescriptorType / IncidentDescription
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type EDXLStringType
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source

<xs:element name="IncidentDescription" type="ct:EDXLStringType" minOccurs="0" maxOccurs="unbounded"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]

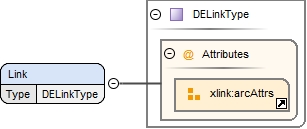

Element Link
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Type DELinkType
Properties
Used by
Source
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element Content
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#ContentObject edxl-de-v2.0-wd09.tmp#Link edxl-de-v2.0-wd09.tmp#DEContentType
Type DEContentType
Properties
content complex
Used by
Complex Type DEDistributionType
Model
ContentObject+ , Link*
Children ContentObject, Link
Instance

<Content xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0">
  <ContentObject>{1,unbounded}</ContentObject>
  <Link>{0,unbounded}</Link>
</Content>
Source

<xs:element name="Content" type="DEContentType"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]

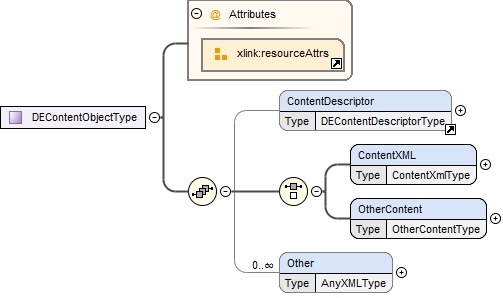

Element ContentObject
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#ContentDescriptor edxl-de-v2.0-wd09.tmp#DEContentObjectType_ContentXML edxl-de-v2.0-wd09.tmp#DEContentObjectType_OtherContent edxl-de-v2.0-wd09.tmp#DEContentObjectType_Other edxl-de-v2.0-wd09.tmp#DEContentObjectType
Type DEContentObjectType
Properties
content complex
Used by
Complex Type DEContentType
Model
Children ContentDescriptor, ContentXML, Other, OtherContent
Instance

<ContentObject xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0">
  <ContentDescriptor>{0,1}</ContentDescriptor>
  <ContentXML>{1,1}</ContentXML>
  <OtherContent>{1,1}</OtherContent>
  <Other>{0,unbounded}</Other>
</ContentObject>
Source

<xs:element name="ContentObject" type="DEContentObjectType"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]

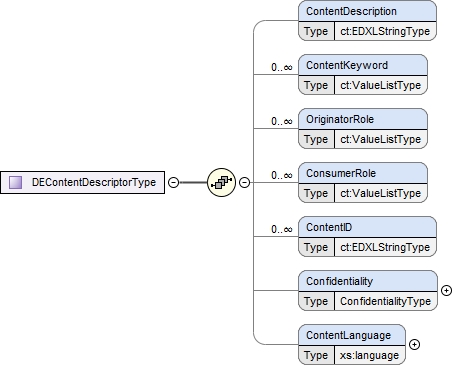

Element ContentDescriptor
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#DEContentDescriptorType_ContentDescription edxl-de-v2.0-wd09.tmp#DEContentDescriptorType_ContentKeyword edxl-de-v2.0-wd09.tmp#DEContentDescriptorType_OriginatorRole edxl-de-v2.0-wd09.tmp#DEContentDescriptorType_ConsumerRole edxl-de-v2.0-wd09.tmp#DEContentDescriptorType_ContentID edxl-de-v2.0-wd09.tmp#DEContentDescriptorType_Confidentiality edxl-de-v2.0-wd09.tmp#DEContentDescriptorType_ContentLanguage edxl-de-v2.0-wd09.tmp#DEContentDescriptorType
Type DEContentDescriptorType
Properties
content complex
Used by
Complex Type DEContentObjectType
Model
Children Confidentiality, ConsumerRole, ContentDescription, ContentID, ContentKeyword, ContentLanguage, OriginatorRole
Instance

<ContentDescriptor xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0">
  <ContentDescription>{0,1}</ContentDescription>
  <ContentKeyword>{0,unbounded}</ContentKeyword>
  <OriginatorRole>{0,unbounded}</OriginatorRole>
  <ConsumerRole>{0,unbounded}</ConsumerRole>
  <ContentID>{0,unbounded}</ContentID>
  <Confidentiality>{0,1}</Confidentiality>
  <ContentLanguage>{0,1}</ContentLanguage>
</ContentDescriptor>
Source

<xs:element name="ContentDescriptor" type="DEContentDescriptorType"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DEContentDescriptorType / ContentDescription
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type EDXLStringType
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="ContentDescription" type="ct:EDXLStringType" minOccurs="0" maxOccurs="1"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DEContentDescriptorType / ContentKeyword
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type ValueListType
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source

<xs:element name="ContentKeyword" type="ct:ValueListType" minOccurs="0" maxOccurs="unbounded"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DEContentDescriptorType / OriginatorRole
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type ValueListType
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source

<xs:element name="OriginatorRole" type="ct:ValueListType" minOccurs="0" maxOccurs="unbounded"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DEContentDescriptorType / ConsumerRole
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type ValueListType
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source

<xs:element name="ConsumerRole" type="ct:ValueListType" minOccurs="0" maxOccurs="unbounded"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DEContentDescriptorType / ContentID
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type EDXLStringType
Properties
content simple
minOccurs 0
maxOccurs unbounded
Source

<xs:element name="ContentID" type="ct:EDXLStringType" minOccurs="0" maxOccurs="unbounded"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DEContentDescriptorType / Confidentiality
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#ConfidentialityType_ConfidentialityValueList edxl-de-v2.0-wd09.tmp#ConfidentialityType_ConfidentialityDefault edxl-de-v2.0-wd09.tmp#ConfidentialityType
Type ConfidentialityType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children ConfidentialityDefault, ConfidentialityValueList
Instance

<Confidentiality xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0">
  <ConfidentialityValueList>{1,1}</ConfidentialityValueList>
  <ConfidentialityDefault>{1,1}</ConfidentialityDefault>
</Confidentiality>
Source

<xs:element name="Confidentiality" type="ConfidentialityType" minOccurs="0" maxOccurs="1"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DEContentDescriptorType / ContentLanguage
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type xs:language
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element name="ContentLanguage" type="xs:language" minOccurs="0" maxOccurs="1"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]

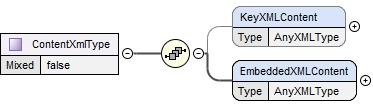

Element DEContentObjectType / ContentXML
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#ContentXmlType_KeyXMLContent edxl-de-v2.0-wd09.tmp#ContentXmlType_EmbeddedXMLContent edxl-de-v2.0-wd09.tmp#ContentXmlType
Type ContentXmlType
Properties
content complex
mixed false
Model
Children EmbeddedXMLContent, KeyXMLContent
Instance

<ContentXML xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0">
  <KeyXMLContent>{0,1}</KeyXMLContent>
  <EmbeddedXMLContent>{1,1}</EmbeddedXMLContent>
</ContentXML>
Source

<xs:element name="ContentXML" type="ContentXmlType"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element ContentXmlType / KeyXMLContent
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#AnyXMLType
Type AnyXMLType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
ANY element from ANY namespace OTHER than 'urn:oasis:names:tc:emergency:EDXL:DE:2.0'
Attributes
Wildcard: ANY attribute from ANY namespace OTHER than 'urn:oasis:names:tc:emergency:EDXL:DE:2.0'
Source

<xs:element name="KeyXMLContent" type="AnyXMLType" minOccurs="0" maxOccurs="1"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element ContentXmlType / EmbeddedXMLContent
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#AnyXMLType
Type AnyXMLType
Properties
content complex
minOccurs 1
maxOccurs 1
Model
ANY element from ANY namespace OTHER than 'urn:oasis:names:tc:emergency:EDXL:DE:2.0'
Attributes
Wildcard: ANY attribute from ANY namespace OTHER than 'urn:oasis:names:tc:emergency:EDXL:DE:2.0'
Source

<xs:element name="EmbeddedXMLContent" type="AnyXMLType" minOccurs="1" maxOccurs="1"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DEContentObjectType / OtherContent
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#OtherContentType_MimeType edxl-de-v2.0-wd09.tmp#OtherContentType_Size edxl-de-v2.0-wd09.tmp#OtherContentType_Digest edxl-de-v2.0-wd09.tmp#OtherContentType_Uri edxl-de-v2.0-wd09.tmp#OtherContentType_ContentData edxl-de-v2.0-wd09.tmp#OtherContentType
Type OtherContentType
Properties
content complex
mixed false
Model
Children ContentData, Digest, MimeType, Size, Uri
Instance

<OtherContent xmlns="urn:oasis:names:tc:emergency:EDXL:DE:2.0">
  <MimeType>{1,1}</MimeType>
  <Size>{0,1}</Size>
  <Digest>{0,1}</Digest>
  <Uri>{0,1}</Uri>
  <ContentData>{0,1}</ContentData>
</OtherContent>
Source

<xs:element name="OtherContent" type="OtherContentType"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element OtherContentType / MimeType
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type EDXLStringType
Properties
content simple
minOccurs 1
Source

<xs:element name="MimeType" type="ct:EDXLStringType" minOccurs="1"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element OtherContentType / Size
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type xs:integer
Properties
content simple
minOccurs 0
Source

<xs:element name="Size" type="xs:integer" minOccurs="0"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element OtherContentType / Digest
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type xs:base64Binary
Properties
content simple
minOccurs 0
Source

<xs:element name="Digest" type="xs:base64Binary" minOccurs="0"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element OtherContentType / Uri
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type xs:anyURI
Properties
content simple
minOccurs 0
Source

<xs:element name="Uri" type="xs:anyURI" minOccurs="0"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element OtherContentType / ContentData
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type xs:base64Binary
Properties
content simple
minOccurs 0
Source

<xs:element name="ContentData" type="xs:base64Binary" minOccurs="0"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DEContentObjectType / Other
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#AnyXMLType
Type AnyXMLType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
ANY element from ANY namespace OTHER than 'urn:oasis:names:tc:emergency:EDXL:DE:2.0'
Attributes
Wildcard: ANY attribute from ANY namespace OTHER than 'urn:oasis:names:tc:emergency:EDXL:DE:2.0'
Source

<xs:element name="Other" type="AnyXMLType" minOccurs="0" maxOccurs="unbounded"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Element DEDistributionType / Other
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#AnyXMLType
Type AnyXMLType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
ANY element from ANY namespace OTHER than 'urn:oasis:names:tc:emergency:EDXL:DE:2.0'
Attributes
Wildcard: ANY attribute from ANY namespace OTHER than 'urn:oasis:names:tc:emergency:EDXL:DE:2.0'
Source

<xs:element name="Other" type="AnyXMLType" minOccurs="0" maxOccurs="unbounded"/>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Complex Type DEDistributionType
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#DEEnvelopeType_DistributionID edxl-de-v2.0-wd09.tmp#DEEnvelopeType_SenderID edxl-de-v2.0-wd09.tmp#DEEnvelopeType_DateTimeSent edxl-de-v2.0-wd09.tmp#DEEnvelopeType_DateTimeExpires edxl-de-v2.0-wd09.tmp#DEEnvelopeType_DistributionStatus edxl-de-v2.0-wd09.tmp#DEEnvelopeType_DistributionKind edxl-de-v2.0-wd09.tmp#DEEnvelopeType edxl-de-v2.0-wd09.tmp#Descriptor edxl-de-v2.0-wd09.tmp#Content edxl-de-v2.0-wd09.tmp#DEDistributionType_Other
Type extension of DEEnvelopeType
Type hierarchy
Used by
Model
Children Content, DateTimeExpires, DateTimeSent, Descriptor, DistributionID, DistributionKind, DistributionStatus, Other, SenderID
Source

<xs:complexType name="DEDistributionType">
  <xs:complexContent>
    <xs:extension base="DEEnvelopeType">
      <xs:sequence>
        <xs:element ref="Descriptor" minOccurs="0" maxOccurs="1"/>
        <xs:element ref="Content" minOccurs="0" maxOccurs="1"/>
        <xs:element name="Other" type="AnyXMLType" minOccurs="0" maxOccurs="unbounded"/>
      </xs:sequence>
      <xs:attributeGroup ref="xlink:extendedAttrs"/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Complex Type DEEnvelopeType
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#DEEnvelopeType_DistributionID edxl-de-v2.0-wd09.tmp#DEEnvelopeType_SenderID edxl-de-v2.0-wd09.tmp#DEEnvelopeType_DateTimeSent edxl-de-v2.0-wd09.tmp#DEEnvelopeType_DateTimeExpires edxl-de-v2.0-wd09.tmp#DEEnvelopeType_DistributionStatus edxl-de-v2.0-wd09.tmp#DEEnvelopeType_DistributionKind
Used by
Complex Type DEDistributionType
Model
Children DateTimeExpires, DateTimeSent, DistributionID, DistributionKind, DistributionStatus, SenderID
Source

<xs:complexType name="DEEnvelopeType">
  <xs:sequence>
    <xs:element name="DistributionID" type="ct:EDXLStringType" minOccurs="1"/>
    <xs:element name="SenderID" type="ct:EDXLStringType" minOccurs="1"/>
    <xs:element name="DateTimeSent" type="ct:EDXLDateTimeType" minOccurs="1"/>
    <xs:element name="DateTimeExpires" type="ct:EDXLDateTimeType" minOccurs="1"/>
    <xs:element name="DistributionStatus" type="DistributionStatusType" minOccurs="1"/>
    <xs:element name="DistributionKind" type="DistributionType" minOccurs="1"/>
  </xs:sequence>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Complex Type DistributionStatusType
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#DistributionStatusType_StatusKindValueList edxl-de-v2.0-wd09.tmp#DistributionStatusType_StatusKindDefault
Used by
Model
Children StatusKindDefault, StatusKindValueList
Source

<xs:complexType name="DistributionStatusType">
  <xs:choice>
    <xs:element name="StatusKindValueList" type="ct:ValueKeyType"/>
    <xs:element name="StatusKindDefault" type="ct:StatusKindDefaultType"/>
  </xs:choice>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Complex Type ct:StatusKindDefaultType
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#StatusKindDefaultType_ValueListURI edxl-de-v2.0-wd09.tmp#StatusKindDefaultType_Value
Type restriction of ValueKeyType
Type hierarchy
Used by
Model
Children ct:Value, ct:ValueListURI
Source

<xs:complexType name="StatusKindDefaultType">
  <xs:complexContent>
    <xs:restriction base="ct:ValueKeyType">
      <xs:sequence maxOccurs="1">
        <xs:element name="ValueListURI" type="ct:StatusKindDefaultURI"/>
        <xs:element name="Value" type="ct:StatusKindDefaultValues"/>
      </xs:sequence>
    </xs:restriction>
  </xs:complexContent>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Simple Type ct:StatusKindDefaultURI
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram
Type restriction of ValueListURIType
Type hierarchy
Used by
Source

<xs:simpleType name="StatusKindDefaultURI">
  <xs:restriction base="ct:ValueListURIType">
    <xs:enumeration value="urn:oasis:names:tc:emergency:EDXL:DE:2.0:Defaults:StatusKind"/>
  </xs:restriction>
</xs:simpleType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Simple Type ct:StatusKindDefaultValues
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram
Type restriction of ValueType
Type hierarchy
Used by
Source

<xs:simpleType name="StatusKindDefaultValues">
  <xs:restriction base="ct:ValueType">
    <xs:enumeration value="Actual"/>
    <xs:enumeration value="Exercise"/>
    <xs:enumeration value="System"/>
    <xs:enumeration value="Test"/>
  </xs:restriction>
</xs:simpleType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Complex Type DistributionType
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#DistributionType_DistributionKindValueList edxl-de-v2.0-wd09.tmp#DistributionType_DistributionKindDefault
Used by
Model
Children DistributionKindDefault, DistributionKindValueList
Source

<xs:complexType name="DistributionType">
  <xs:choice>
    <xs:element name="DistributionKindValueList" type="ct:ValueKeyType"/>
    <xs:element name="DistributionKindDefault" type="ct:DistributionDefaultType"/>
  </xs:choice>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Complex Type ct:DistributionDefaultType
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#DistributionDefaultType_ValueListURI edxl-de-v2.0-wd09.tmp#DistributionDefaultType_Value
Type restriction of ValueKeyType
Type hierarchy
Used by
Model
Children ct:Value, ct:ValueListURI
Source

<xs:complexType name="DistributionDefaultType">
  <xs:complexContent>
    <xs:restriction base="ct:ValueKeyType">
      <xs:sequence maxOccurs="1">
        <xs:element name="ValueListURI" type="ct:DisTypeDefaultURI"/>
        <xs:element name="Value" type="ct:DistTypeDefaultValues"/>
      </xs:sequence>
    </xs:restriction>
  </xs:complexContent>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Simple Type ct:DisTypeDefaultURI
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram
Type restriction of ValueListURIType
Type hierarchy
Used by
Source

<xs:simpleType name="DisTypeDefaultURI">
  <xs:restriction base="ct:ValueListURIType">
    <xs:enumeration value="urn:oasis:names:tc:emergency:EDXL:DE:2.0:Defaults:DistributionType"/>
  </xs:restriction>
</xs:simpleType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Simple Type ct:DistTypeDefaultValues
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram
Type restriction of ValueType
Type hierarchy
Used by
Source

<xs:simpleType name="DistTypeDefaultValues">
  <xs:restriction base="ct:ValueType">
    <xs:enumeration value="Report"/>
    <xs:enumeration value="Update"/>
    <xs:enumeration value="Cancel"/>
    <xs:enumeration value="Request"/>
    <xs:enumeration value="Response"/>
    <xs:enumeration value="Dispatch"/>
    <xs:enumeration value="Ack"/>
    <xs:enumeration value="Error"/>
    <xs:enumeration value="SensorConfiguration"/>
    <xs:enumeration value="SensorControl"/>
    <xs:enumeration value="SensorStatus"/>
    <xs:enumeration value="SensorDetection"/>
  </xs:restriction>
</xs:simpleType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Complex Type DEDescriptorType
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#DEDescriptorType_CombinedConfidentiality edxl-de-v2.0-wd09.tmp#DEDescriptorType_Language edxl-de-v2.0-wd09.tmp#DEDescriptorType_SenderRole edxl-de-v2.0-wd09.tmp#DEDescriptorType_RecipientRole edxl-de-v2.0-wd09.tmp#DEDescriptorType_Keyword edxl-de-v2.0-wd09.tmp#DEDescriptorType_ExplicitAddress edxl-de-v2.0-wd09.tmp#DEDescriptorType_TargetAreas edxl-de-v2.0-wd09.tmp#DEDescriptorType_Urgency edxl-de-v2.0-wd09.tmp#DEDescriptorType_Severity edxl-de-v2.0-wd09.tmp#DEDescriptorType_Certainty edxl-de-v2.0-wd09.tmp#DEDescriptorType_IncidentID edxl-de-v2.0-wd09.tmp#DEDescriptorType_IncidentDescription edxl-de-v2.0-wd09.tmp#Link
Used by
Element Descriptor
Model
Children Certainty, CombinedConfidentiality, ExplicitAddress, IncidentDescription, IncidentID, Keyword, Language, Link, RecipientRole, SenderRole, Severity, TargetAreas, Urgency
Source

<xs:complexType name="DEDescriptorType">
  <xs:sequence>
    <xs:element name="CombinedConfidentiality" type="ConfidentialityType" minOccurs="0"/>
    <xs:element name="Language" type="xs:language" minOccurs="0"/>
    <xs:element name="SenderRole" type="ct:ValueListType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="RecipientRole" type="ct:ValueListType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="Keyword" type="ct:ValueListType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="ExplicitAddress" type="ValueSchemeType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="TargetAreas" type="TargetAreasType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="Urgency" type="UrgencyType" minOccurs="0"/>
    <xs:element name="Severity" type="SeverityType" minOccurs="0"/>
    <xs:element name="Certainty" type="CertaintyType" minOccurs="0"/>
    <xs:element name="IncidentID" type="ct:EDXLStringType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="IncidentDescription" type="ct:EDXLStringType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="Link" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
  <xs:attributeGroup ref="xlink:resourceAttrs"/>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Complex Type ConfidentialityType
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#ConfidentialityType_ConfidentialityValueList edxl-de-v2.0-wd09.tmp#ConfidentialityType_ConfidentialityDefault
Used by
Model
Children ConfidentialityDefault, ConfidentialityValueList
Source

<xs:complexType name="ConfidentialityType">
  <xs:choice>
    <xs:element name="ConfidentialityValueList" type="ct:ValueKeyType"/>
    <xs:element name="ConfidentialityDefault" type="ct:ConfidentialityDefaultType"/>
  </xs:choice>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Complex Type ct:ConfidentialityDefaultType
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#ConfidentialityDefaultType_ValueListURI edxl-de-v2.0-wd09.tmp#ConfidentialityDefaultType_Value
Type restriction of ValueKeyType
Type hierarchy
Used by
Model
Children ct:Value, ct:ValueListURI
Source

<xs:complexType name="ConfidentialityDefaultType">
  <xs:complexContent>
    <xs:restriction base="ct:ValueKeyType">
      <xs:sequence maxOccurs="1">
        <xs:element name="ValueListURI" type="ct:ConfidentialityTypeDefaultURI"/>
        <xs:element name="Value" type="ct:ConfidentialityTypeDefaultValues"/>
      </xs:sequence>
    </xs:restriction>
  </xs:complexContent>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Simple Type ct:ConfidentialityTypeDefaultURI
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram
Type restriction of ValueListURIType
Type hierarchy
Used by
Source

<xs:simpleType name="ConfidentialityTypeDefaultURI">
  <xs:restriction base="ct:ValueListURIType">
    <xs:enumeration value="urn:oasis:names:tc:emergency:EDXL:DE:2.0:Defaults:ConfidentialityType"/>
  </xs:restriction>
</xs:simpleType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Simple Type ct:ConfidentialityTypeDefaultValues
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram
Type restriction of ValueType
Type hierarchy
Used by
Source

<xs:simpleType name="ConfidentialityTypeDefaultValues">
  <xs:restriction base="ct:ValueType">
    <xs:enumeration value="Unclassified"/>
    <xs:enumeration value="Classified"/>
  </xs:restriction>
</xs:simpleType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Complex Type ValueSchemeType
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#ValueSchemeType_ExplicitAddressScheme edxl-de-v2.0-wd09.tmp#ValueSchemeType_ExplicitAddressValue
Used by
Model
Children ExplicitAddressScheme, ExplicitAddressValue
Source

<xs:complexType name="ValueSchemeType">
  <xs:sequence>
    <xs:element name="ExplicitAddressScheme" type="ct:EDXLStringType"/>
    <xs:element name="ExplicitAddressValue" type="ct:EDXLStringType" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Complex Type TargetAreasType
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#TargetAreasType_AreaKind edxl-de-v2.0-wd09.tmp#TargetAreasType_AreaGrouping edxl-de-v2.0-wd09.tmp#TargetAreasType_TargetArea
Used by
Model
Children AreaGrouping, AreaKind, TargetArea
Source

<xs:complexType name="TargetAreasType">
  <xs:sequence>
    <xs:element name="AreaKind" type="AreaKindType" minOccurs="1" maxOccurs="1"/>
    <xs:element name="AreaGrouping" type="AreaGroupingType" minOccurs="1" maxOccurs="1"/>
    <xs:element name="TargetArea" type="TargetAreaType" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Complex Type AreaKindType
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#AreaKindType_AreaKindValueList edxl-de-v2.0-wd09.tmp#AreaKindType_AreaKindDefault
Used by
Model
Children AreaKindDefault, AreaKindValueList
Source

<xs:complexType name="AreaKindType">
  <xs:choice>
    <xs:element name="AreaKindValueList" type="ct:ValueKeyType"/>
    <xs:element name="AreaKindDefault" type="ct:AreaKindDefaultType"/>
  </xs:choice>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Complex Type ct:AreaKindDefaultType
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#AreaKindDefaultType_ValueListURI edxl-de-v2.0-wd09.tmp#AreaKindDefaultType_Value
Type restriction of ValueKeyType
Type hierarchy
Used by
Model
Children ct:Value, ct:ValueListURI
Source

<xs:complexType name="AreaKindDefaultType">
  <xs:complexContent>
    <xs:restriction base="ct:ValueKeyType">
      <xs:sequence maxOccurs="1">
        <xs:element name="ValueListURI" type="ct:AreaKindTypeDefaultURI"/>
        <xs:element name="Value" type="ct:AreaKindTypeDefaultValues"/>
      </xs:sequence>
    </xs:restriction>
  </xs:complexContent>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Simple Type ct:AreaKindTypeDefaultURI
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram
Type restriction of ValueListURIType
Type hierarchy
Used by
Source

<xs:simpleType name="AreaKindTypeDefaultURI">
  <xs:restriction base="ct:ValueListURIType">
    <xs:enumeration value="urn:oasis:names:tc:emergency:EDXL:DE:2.0:Defaults:AreaKindType"/>
  </xs:restriction>
</xs:simpleType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Simple Type ct:AreaKindTypeDefaultValues
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram
Type restriction of ValueType
Type hierarchy
Used by
Source

<xs:simpleType name="AreaKindTypeDefaultValues">
  <xs:restriction base="ct:ValueType">
    <xs:enumeration value="SourceTargetArea"/>
    <xs:enumeration value="DistributionTargetArea"/>
    <xs:enumeration value="OtherTargetArea"/>
  </xs:restriction>
</xs:simpleType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Simple Type AreaGroupingType
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Intersection
enumeration Union
enumeration ExclusiveOr
enumeration Complement
enumeration OtherGroupingType
Used by
Source

<xs:simpleType name="AreaGroupingType">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Intersection"/>
    <xs:enumeration value="Union"/>
    <xs:enumeration value="ExclusiveOr"/>
    <xs:enumeration value="Complement"/>
    <xs:enumeration value="OtherGroupingType"/>
  </xs:restriction>
</xs:simpleType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Complex Type TargetAreaType
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#TargetAreaType_GeoPoliticalLocation
Used by
Model
EDXLGeoLocation | GeoPoliticalLocation
Children EDXLGeoLocation, GeoPoliticalLocation
Source

<xs:complexType name="TargetAreaType">
  <xs:choice>
    <xs:element ref="edxl-gsf:EDXLGeoLocation" minOccurs="1" maxOccurs="1"/>
    <xs:element name="GeoPoliticalLocation" type="ct:EDXLGeoPoliticalLocationType" minOccurs="1" maxOccurs="1"/>
  </xs:choice>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Complex Type UrgencyType
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#UrgencyType_UrgencyValueList edxl-de-v2.0-wd09.tmp#UrgencyType_UrgencyDefault
Used by
Model
Children UrgencyDefault, UrgencyValueList
Source

<xs:complexType name="UrgencyType">
  <xs:choice>
    <xs:element name="UrgencyValueList" type="ct:ValueKeyType"/>
    <xs:element name="UrgencyDefault" type="ct:UrgencyDefaultType"/>
  </xs:choice>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Complex Type ct:UrgencyDefaultType
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#UrgencyDefaultType_ValueListURI edxl-de-v2.0-wd09.tmp#UrgencyDefaultType_Value
Type restriction of ValueKeyType
Type hierarchy
Used by
Model
Children ct:Value, ct:ValueListURI
Source

<xs:complexType name="UrgencyDefaultType">
  <xs:complexContent>
    <xs:restriction base="ct:ValueKeyType">
      <xs:sequence maxOccurs="1">
        <xs:element name="ValueListURI" type="ct:UrgencyTypeDefaultURI"/>
        <xs:element name="Value" type="ct:UrgencyTypeDefaultValues"/>
      </xs:sequence>
    </xs:restriction>
  </xs:complexContent>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Simple Type ct:UrgencyTypeDefaultURI
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram
Type restriction of ValueListURIType
Type hierarchy
Used by
Source

<xs:simpleType name="UrgencyTypeDefaultURI">
  <xs:restriction base="ct:ValueListURIType">
    <xs:enumeration value="urn:oasis:names:tc:emergency:EDXL:DE:2.0:Defaults:Urgency"/>
  </xs:restriction>
</xs:simpleType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Simple Type ct:UrgencyTypeDefaultValues
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram
Type restriction of ValueType
Type hierarchy
Used by
Source

<xs:simpleType name="UrgencyTypeDefaultValues">
  <xs:restriction base="ct:ValueType">
    <xs:enumeration value="Immediate"/>
    <xs:enumeration value="Expected"/>
    <xs:enumeration value="Future"/>
    <xs:enumeration value="Past"/>
    <xs:enumeration value="Unknown"/>
  </xs:restriction>
</xs:simpleType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Complex Type SeverityType
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#SeverityType_SeverityValueList edxl-de-v2.0-wd09.tmp#SeverityType_SeverityDefault
Used by
Model
Children SeverityDefault, SeverityValueList
Source

<xs:complexType name="SeverityType">
  <xs:choice>
    <xs:element name="SeverityValueList" type="ct:ValueKeyType"/>
    <xs:element name="SeverityDefault" type="ct:SeverityDefaultType"/>
  </xs:choice>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Complex Type ct:SeverityDefaultType
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#SeverityDefaultType_ValueListURI edxl-de-v2.0-wd09.tmp#SeverityDefaultType_Value
Type restriction of ValueKeyType
Type hierarchy
Used by
Model
Children ct:Value, ct:ValueListURI
Source

<xs:complexType name="SeverityDefaultType">
  <xs:complexContent>
    <xs:restriction base="ct:ValueKeyType">
      <xs:sequence maxOccurs="1">
        <xs:element name="ValueListURI" type="ct:SeverityTypeDefaultURI"/>
        <xs:element name="Value" type="ct:SeverityTypeDefaultValues"/>
      </xs:sequence>
    </xs:restriction>
  </xs:complexContent>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Simple Type ct:SeverityTypeDefaultURI
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram
Type restriction of ValueListURIType
Type hierarchy
Used by
Source

<xs:simpleType name="SeverityTypeDefaultURI">
  <xs:restriction base="ct:ValueListURIType">
    <xs:enumeration value="urn:oasis:names:tc:emergency:EDXL:DE:2.0:Defaults:Severity"/>
  </xs:restriction>
</xs:simpleType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Simple Type ct:SeverityTypeDefaultValues
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram
Type restriction of ValueType
Type hierarchy
Used by
Source

<xs:simpleType name="SeverityTypeDefaultValues">
  <xs:restriction base="ct:ValueType">
    <xs:enumeration value="Extreme"/>
    <xs:enumeration value="Severe"/>
    <xs:enumeration value="Moderate"/>
    <xs:enumeration value="Minor"/>
    <xs:enumeration value="Unknown"/>
  </xs:restriction>
</xs:simpleType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Complex Type CertaintyType
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#CertaintyType_CertaintyValueList edxl-de-v2.0-wd09.tmp#CertaintyType_CertaintyDefault
Used by
Model
Children CertaintyDefault, CertaintyValueList
Source

<xs:complexType name="CertaintyType">
  <xs:choice>
    <xs:element name="CertaintyValueList" type="ct:ValueKeyType"/>
    <xs:element name="CertaintyDefault" type="ct:CertaintyDefaultType"/>
  </xs:choice>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Complex Type ct:CertaintyDefaultType
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#CertaintyDefaultType_ValueListURI edxl-de-v2.0-wd09.tmp#CertaintyDefaultType_Value
Type restriction of ValueKeyType
Type hierarchy
Used by
Model
Children ct:Value, ct:ValueListURI
Source

<xs:complexType name="CertaintyDefaultType">
  <xs:complexContent>
    <xs:restriction base="ct:ValueKeyType">
      <xs:sequence maxOccurs="1">
        <xs:element name="ValueListURI" type="ct:CertaintyTypeDefaultURI"/>
        <xs:element name="Value" type="ct:CertaintyTypeDefaultValues"/>
      </xs:sequence>
    </xs:restriction>
  </xs:complexContent>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Simple Type ct:CertaintyTypeDefaultURI
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram
Type restriction of ValueListURIType
Type hierarchy
Used by
Source

<xs:simpleType name="CertaintyTypeDefaultURI">
  <xs:restriction base="ct:ValueListURIType">
    <xs:enumeration value="urn:oasis:names:tc:emergency:EDXL:DE:2.0:Defaults:Certainty"/>
  </xs:restriction>
</xs:simpleType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Simple Type ct:CertaintyTypeDefaultValues
Namespace urn:oasis:names:tc:emergency:edxl:ct:1.0
Diagram
Diagram
Type restriction of ValueType
Type hierarchy
Used by
Source

<xs:simpleType name="CertaintyTypeDefaultValues">
  <xs:restriction base="ct:ValueType">
    <xs:enumeration value="Observed"/>
    <xs:enumeration value="Likely"/>
    <xs:enumeration value="Possible"/>
    <xs:enumeration value="Unlikely"/>
    <xs:enumeration value="Unknown"/>
  </xs:restriction>
</xs:simpleType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-dvl-v2.0-wd09.xsd
[ top ]
Complex Type DELinkType
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Used by
Element Link
Source

<xs:complexType name="DELinkType">
  <xs:attributeGroup ref="xlink:arcAttrs"/>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Complex Type DEContentType
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#ContentObject edxl-de-v2.0-wd09.tmp#Link
Used by
Element Content
Model
Children ContentObject, Link
Source

<xs:complexType name="DEContentType">
  <xs:sequence>
    <xs:element ref="ContentObject" minOccurs="1" maxOccurs="unbounded"/>
    <xs:element ref="Link" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
  <xs:attributeGroup ref="xlink:resourceAttrs"/>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Complex Type DEContentObjectType
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#ContentDescriptor edxl-de-v2.0-wd09.tmp#DEContentObjectType_ContentXML edxl-de-v2.0-wd09.tmp#DEContentObjectType_OtherContent edxl-de-v2.0-wd09.tmp#DEContentObjectType_Other
Used by
Element ContentObject
Model
Children ContentDescriptor, ContentXML, Other, OtherContent
Source

<xs:complexType name="DEContentObjectType">
  <xs:sequence>
    <xs:element ref="ContentDescriptor" minOccurs="0" maxOccurs="1"/>
    <xs:choice minOccurs="1" maxOccurs="1">
      <xs:element name="ContentXML" type="ContentXmlType"/>
      <xs:element name="OtherContent" type="OtherContentType"/>
    </xs:choice>
    <xs:element name="Other" type="AnyXMLType" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
  <xs:attributeGroup ref="xlink:resourceAttrs"/>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Complex Type DEContentDescriptorType
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#DEContentDescriptorType_ContentDescription edxl-de-v2.0-wd09.tmp#DEContentDescriptorType_ContentKeyword edxl-de-v2.0-wd09.tmp#DEContentDescriptorType_OriginatorRole edxl-de-v2.0-wd09.tmp#DEContentDescriptorType_ConsumerRole edxl-de-v2.0-wd09.tmp#DEContentDescriptorType_ContentID edxl-de-v2.0-wd09.tmp#DEContentDescriptorType_Confidentiality edxl-de-v2.0-wd09.tmp#DEContentDescriptorType_ContentLanguage
Used by
Model
Children Confidentiality, ConsumerRole, ContentDescription, ContentID, ContentKeyword, ContentLanguage, OriginatorRole
Source

<xs:complexType name="DEContentDescriptorType">
  <xs:sequence>
    <xs:element name="ContentDescription" type="ct:EDXLStringType" minOccurs="0" maxOccurs="1"/>
    <xs:element name="ContentKeyword" type="ct:ValueListType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="OriginatorRole" type="ct:ValueListType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="ConsumerRole" type="ct:ValueListType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="ContentID" type="ct:EDXLStringType" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="Confidentiality" type="ConfidentialityType" minOccurs="0" maxOccurs="1"/>
    <xs:element name="ContentLanguage" type="xs:language" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Complex Type ContentXmlType
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#ContentXmlType_KeyXMLContent edxl-de-v2.0-wd09.tmp#ContentXmlType_EmbeddedXMLContent
Properties
mixed false
Used by
Model
Children EmbeddedXMLContent, KeyXMLContent
Source

<xs:complexType name="ContentXmlType" mixed="false">
  <xs:sequence>
    <xs:element name="KeyXMLContent" type="AnyXMLType" minOccurs="0" maxOccurs="1"/>
    <xs:element name="EmbeddedXMLContent" type="AnyXMLType" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Complex Type AnyXMLType
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram
Used by
Model
ANY element from ANY namespace OTHER than 'urn:oasis:names:tc:emergency:EDXL:DE:2.0'
Attributes
Wildcard: ANY attribute from ANY namespace OTHER than 'urn:oasis:names:tc:emergency:EDXL:DE:2.0'
Source

<xs:complexType name="AnyXMLType">
  <xs:sequence>
    <xs:any namespace="##other" processContents="lax" maxOccurs="1"/>
  </xs:sequence>
  <xs:anyAttribute namespace="##other" processContents="lax"/>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
Complex Type OtherContentType
Namespace urn:oasis:names:tc:emergency:EDXL:DE:2.0
Diagram
Diagram edxl-de-v2.0-wd09.tmp#OtherContentType_MimeType edxl-de-v2.0-wd09.tmp#OtherContentType_Size edxl-de-v2.0-wd09.tmp#OtherContentType_Digest edxl-de-v2.0-wd09.tmp#OtherContentType_Uri edxl-de-v2.0-wd09.tmp#OtherContentType_ContentData
Properties
mixed false
Used by
Model
Children ContentData, Digest, MimeType, Size, Uri
Source

<xs:complexType name="OtherContentType" mixed="false">
  <xs:sequence>
    <xs:element name="MimeType" type="ct:EDXLStringType" minOccurs="1"/>
    <xs:element name="Size" type="xs:integer" minOccurs="0"/>
    <xs:element name="Digest" type="xs:base64Binary" minOccurs="0"/>
    <xs:element name="Uri" type="xs:anyURI" minOccurs="0"/>
    <xs:element name="ContentData" type="xs:base64Binary" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
Schema location file:/F:/StratML Files/EDXL/edxl-de-v2.0-wd09.xsd
[ top ]
XML Schema documentation generated by ® XML Developer.
