Main schema Part3_20260718.xsd
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Properties
attribute form default unqualified
element form default qualified
version Part3_20260718

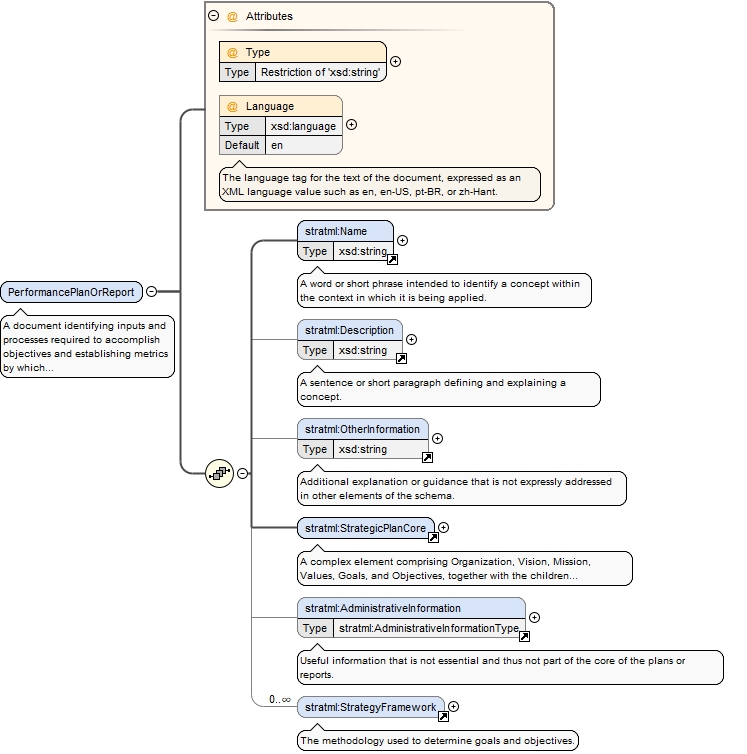

Element stratml:PerformancePlanOrReport
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

A document identifying inputs and processes required to accomplish
objectives and establishing metrics by which progress will be assessed within a single
budgetary planning and resource allocation cycle.
Diagram
DiagramPart3_20260718_xsd.tmp#PerformancePlanOrReport_TypePart3_20260718_xsd.tmp#PerformancePlanOrReport_LanguagePart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#OtherInformationPart3_20260718_xsd.tmp#StrategicPlanCorePart3_20260718_xsd.tmp#AdministrativeInformationPart3_20260718_xsd.tmp#StrategyFramework
Properties
content complex
Model
Children stratml:AdministrativeInformation, stratml:Description, stratml:Name, stratml:OtherInformation, stratml:StrategicPlanCore, stratml:StrategyFramework
Instance

<stratml:PerformancePlanOrReport Language="en" Type="" xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{1,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
  <stratml:OtherInformation>{0,1}</stratml:OtherInformation>
  <stratml:StrategicPlanCore>{1,1}</stratml:StrategicPlanCore>

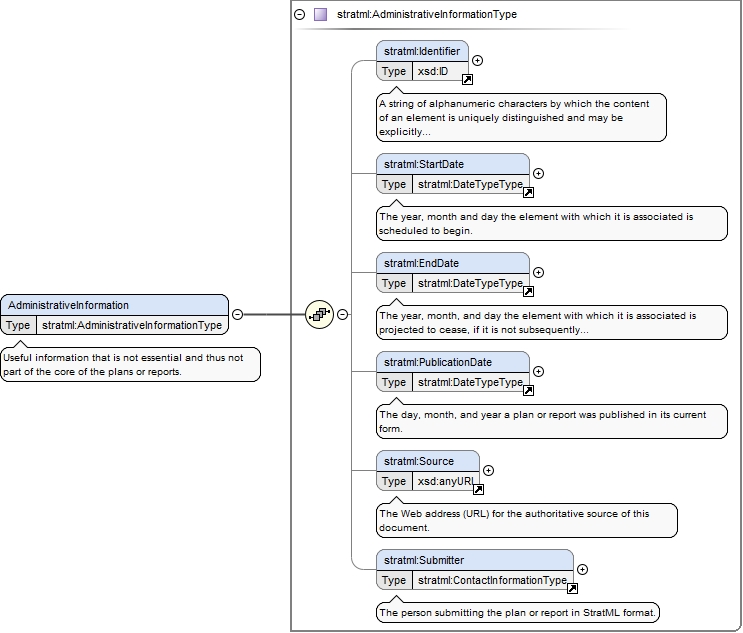

  <stratml:AdministrativeInformation>{0,1}</stratml:AdministrativeInformation>

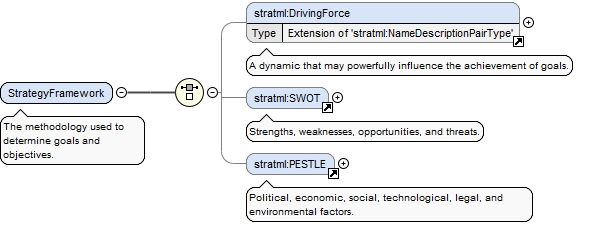

  <stratml:StrategyFramework>{0,unbounded}</stratml:StrategyFramework>
</stratml:PerformancePlanOrReport>
Attributes
QName Type Default Use Annotation
Language xsd:language en optional

documentation

The language tag for the text
of the document, expressed as an XML language value such as en, en-US, pt-BR, or
zh-Hant.
Type restriction of xsd:string required
Source

<xsd:element name="PerformancePlanOrReport" id="uuid-91D3FADB-E6CF-45a0-9676-34E1DBCFE10C">
  <xsd:annotation>
    <xsd:documentation>A document identifying inputs and processes required to accomplish objectives and establishing metrics by which progress will be assessed within a single budgetary planning and resource allocation cycle.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:Name" id="uuid-B1A2B247-56EF-4d0a-9A68-4AD35ED5DC1E"/>
      <xsd:element ref="stratml:Description" id="uuid-C1032E04-FA64-4810-9C84-8D49216BDFEE" minOccurs="0"/>
      <xsd:element ref="stratml:OtherInformation" id="uuid-C800A4FC-A36D-45d5-B862-70FBF6628156" minOccurs="0"/>
      <xsd:element ref="stratml:StrategicPlanCore" id="uuid-41F187FB-AA55-491b-8B0E-65B14A57A4C8"/>
      <xsd:element ref="stratml:AdministrativeInformation" id="uuid-29939A46-15F9-45a1-B865-D62FEEE9AB8C" minOccurs="0"/>

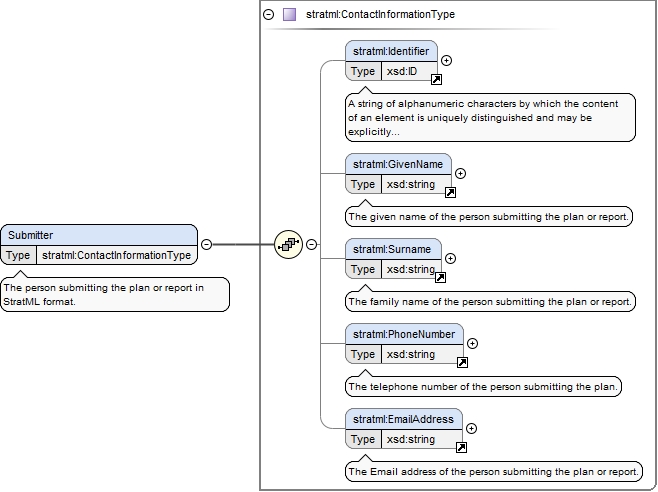

      <!-- Submitter removed from root: it belongs within AdministrativeInformation,
           conforming to the pattern in ISO 17469-1 (Part 1). -->
      <!-- New to Part 3: -->
      <xsd:element ref="stratml:StrategyFramework" minOccurs="0" maxOccurs="unbounded"/>
    </xsd:sequence>
    <xsd:attribute name="Type" use="required" id="uuid-F64605F4-D373-487C-9C5D-D68F1031BA86">
      <xsd:simpleType>
        <xsd:restriction base="xsd:string">
          <xsd:enumeration value="Strategic_Plan"/>
          <xsd:enumeration value="Performance_Plan"/>
          <xsd:enumeration value="Performance_Report"/>
        </xsd:restriction>
      </xsd:simpleType>
    </xsd:attribute>
    <!-- New to Part 3: -->
    <xsd:attribute name="Language" type="xsd:language" default="en">
      <xsd:annotation>
        <xsd:documentation source="documentation" xml:lang="EN">The language tag for the text of the document, expressed as an XML language value such as en, en-US, pt-BR, or zh-Hant.</xsd:documentation>
      </xsd:annotation>
    </xsd:attribute>
  </xsd:complexType>
</xsd:element>

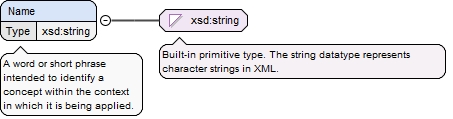

Element stratml:Name
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A word or short phrase intended to
identify a concept within the context in which it is being applied.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source

<xsd:element name="Name" type="xsd:string" id="uuid-f6300ca4-40bc-455c-a963-dfef45f558d3">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A word or short phrase intended to identify a concept within the context in which it is being applied.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

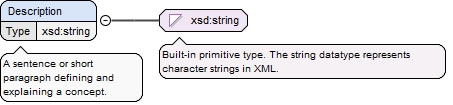

Element stratml:Description
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A sentence or short paragraph
defining and explaining a concept.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source

<xsd:element name="Description" type="xsd:string" id="uuid-6289635d-98a7-40bd-978c-37ae6ede5f7e">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A sentence or short paragraph defining and explaining a concept.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

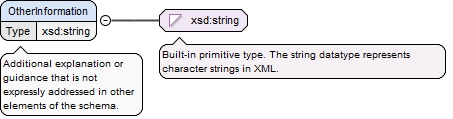

Element stratml:OtherInformation
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

Additional explanation or guidance
that is not expressly addressed in other elements of the schema.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source

<xsd:element name="OtherInformation" type="xsd:string" id="uuid-2cfca418-05c2-4fa1-b233-d1bd60d0d86a">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">Additional explanation or guidance that is not expressly addressed in other elements of the schema.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

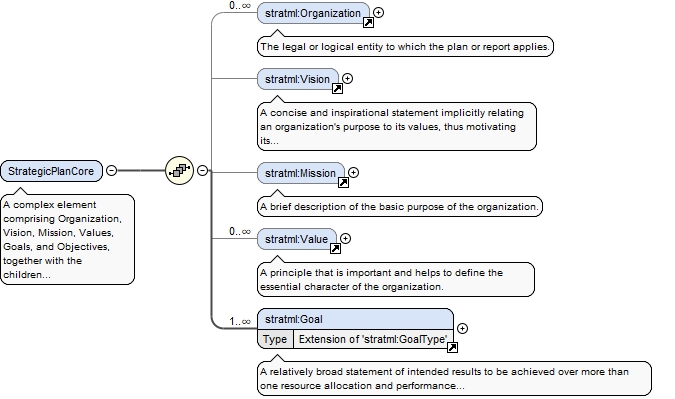

Element stratml:StrategicPlanCore
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A complex element comprising
Organization, Vision, Mission, Values, Goals, and Objectives, together with the children
of those core elements.
Diagram
DiagramPart3_20260718_xsd.tmp#OrganizationPart3_20260718_xsd.tmp#VisionPart3_20260718_xsd.tmp#MissionPart3_20260718_xsd.tmp#ValuePart3_20260718_xsd.tmp#Goal
Properties
content complex
Used by
Model
Children stratml:Goal, stratml:Mission, stratml:Organization, stratml:Value, stratml:Vision
Instance

<stratml:StrategicPlanCore xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Organization>{0,unbounded}</stratml:Organization>

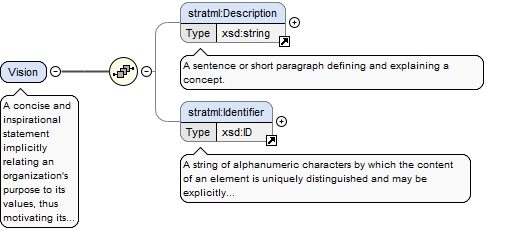

  <stratml:Vision>{0,1}</stratml:Vision>
  <stratml:Mission>{0,1}</stratml:Mission>

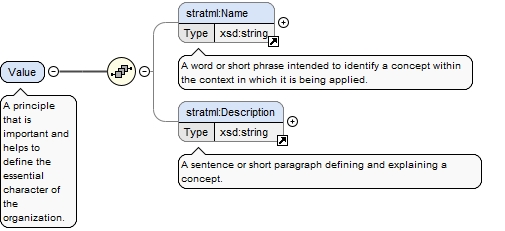

  <stratml:Value>{0,unbounded}</stratml:Value>
  <stratml:Goal Priority="">{1,unbounded}</stratml:Goal>
</stratml:StrategicPlanCore>
Source

<xsd:element name="StrategicPlanCore" id="uuid-ce9c9293-e374-4800-8d62-9ee87d0c9887">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A complex element comprising Organization, Vision, Mission, Values, Goals, and Objectives, together with the children of those core elements.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:Organization" id="uuid-f8d6372e-52e8-4a60-ab1c-274aad8bcf33" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="stratml:Vision" id="uuid-d4dbdad8-0cdd-4294-b091-b8bec961d03b" minOccurs="0"/>
      <xsd:element ref="stratml:Mission" id="uuid-f66bec3e-2714-49ec-8e15-8820cecba9ae" minOccurs="0"/>
      <xsd:element ref="stratml:Value" id="uuid-1ab0aa31-a42f-410e-8b2c-29c22eed8a77" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="stratml:Goal" id="uuid-294b80a3-7288-4477-9458-35292f7a47c3" maxOccurs="unbounded"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

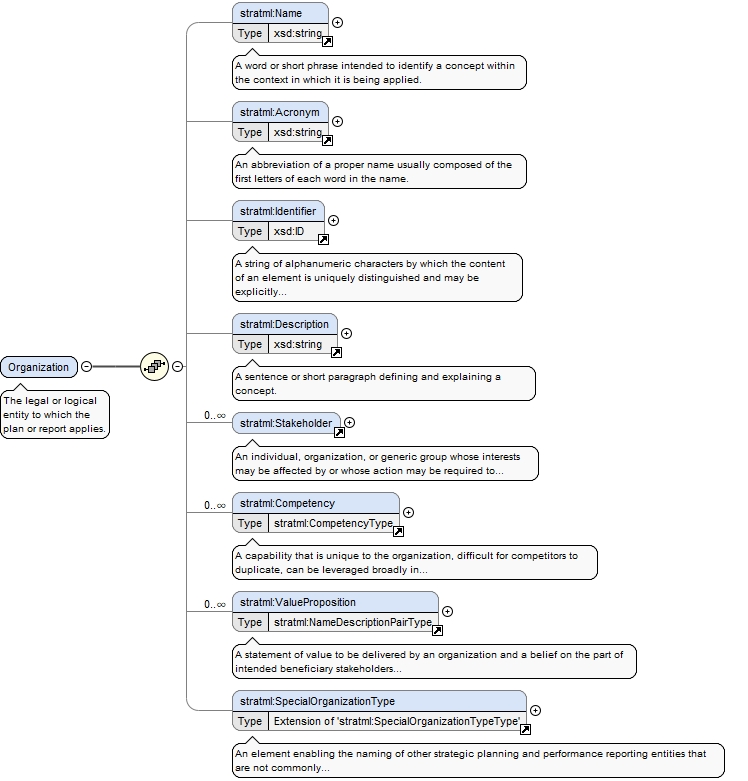

Element stratml:Organization
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

The legal or logical entity to which
the plan or report applies.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#AcronymPart3_20260718_xsd.tmp#IdentifierPart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#StakeholderPart3_20260718_xsd.tmp#CompetencyPart3_20260718_xsd.tmp#ValuePropositionPart3_20260718_xsd.tmp#SpecialOrganizationType
Properties
content complex
Used by
Model
Children stratml:Acronym, stratml:Competency, stratml:Description, stratml:Identifier, stratml:Name, stratml:SpecialOrganizationType, stratml:Stakeholder, stratml:ValueProposition
Instance

<stratml:Organization xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Acronym>{0,1}</stratml:Acronym>
  <stratml:Identifier>{0,1}</stratml:Identifier>
  <stratml:Description>{0,1}</stratml:Description>
  <stratml:Stakeholder StakeholderTypeType="">{0,unbounded}</stratml:Stakeholder>

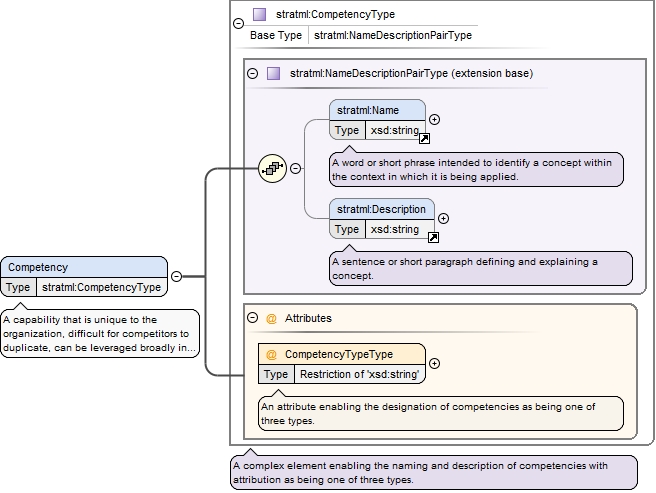

  <stratml:Competency CompetencyTypeType="">{0,unbounded}</stratml:Competency>

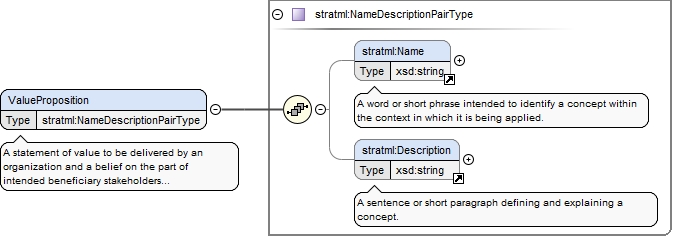

  <stratml:ValueProposition>{0,unbounded}</stratml:ValueProposition>

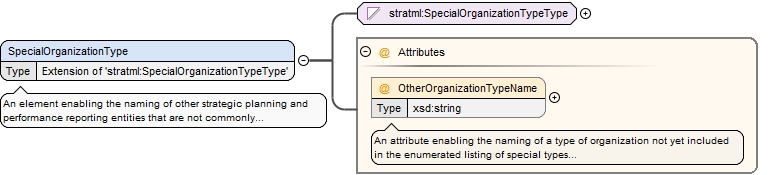

  <stratml:SpecialOrganizationType OtherOrganizationTypeName="">{0,1}</stratml:SpecialOrganizationType>
</stratml:Organization>
Source

<xsd:element name="Organization" id="uuid-9d589d53-ec24-4c18-b5db-5be8075c1be5">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">The legal or logical entity to which the plan or report applies.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:Name" id="uuid-e871651e-e943-4414-b0b6-eb1f5754f3be" minOccurs="0"/>
      <xsd:element ref="stratml:Acronym" id="uuid-eb510ea2-9d70-40ec-95f1-abdf6644e002" minOccurs="0"/>
      <xsd:element ref="stratml:Identifier" id="uuid-d5b4b082-8326-46a8-a475-533813a4ed29" minOccurs="0"/>
      <xsd:element ref="stratml:Description" id="uuid-2741f038-8123-4644-a649-dcf19a773673" minOccurs="0"/>
      <xsd:element ref="stratml:Stakeholder" id="uuid-d9bccbbf-67ae-402c-8914-56d12c1a7190" minOccurs="0" maxOccurs="unbounded"/>
      <!-- New to Part 3: -->
      <xsd:element ref="stratml:Competency" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="stratml:ValueProposition" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="stratml:SpecialOrganizationType" minOccurs="0"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

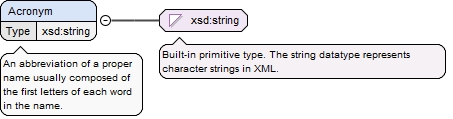

Element stratml:Acronym
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

An abbreviation of a proper name
usually composed of the first letters of each word in the name.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source

<xsd:element name="Acronym" type="xsd:string" id="uuid-a21e6dc4-b67c-4120-b881-ce72882fc958">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">An abbreviation of a proper name usually composed of the first letters of each word in the name.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

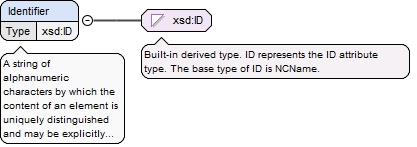

Element stratml:Identifier
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A string of alphanumeric characters
by which the content of an element is uniquely distinguished and may be explicitly referenced
on the Web.
Diagram
Diagram
Type xsd:ID
Properties
content simple
Used by
Source

<xsd:element name="Identifier" type="xsd:ID" id="uuid-a9cee972-59f3-42a9-8876-03bd0166689c">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A string of alphanumeric characters by which the content of an element is uniquely distinguished and may be explicitly referenced on the Web.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

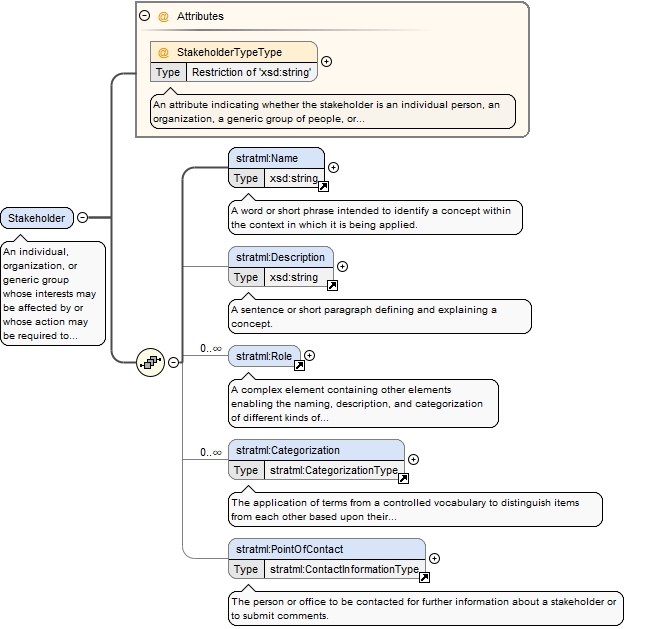

Element stratml:Stakeholder
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

An individual, organization, or
generic group whose interests may be affected by or whose action may be required to achieve
a goal or objective.
Diagram
DiagramPart3_20260718_xsd.tmp#Stakeholder_StakeholderTypeTypePart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#RolePart3_20260718_xsd.tmp#CategorizationPart3_20260718_xsd.tmp#PointOfContact
Properties
content complex
Used by
Model
Children stratml:Categorization, stratml:Description, stratml:Name, stratml:PointOfContact, stratml:Role
Instance

<stratml:Stakeholder StakeholderTypeType="" xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{1,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
  <stratml:Role RASCI="">{0,unbounded}</stratml:Role>
  <stratml:Categorization>{0,unbounded}</stratml:Categorization>

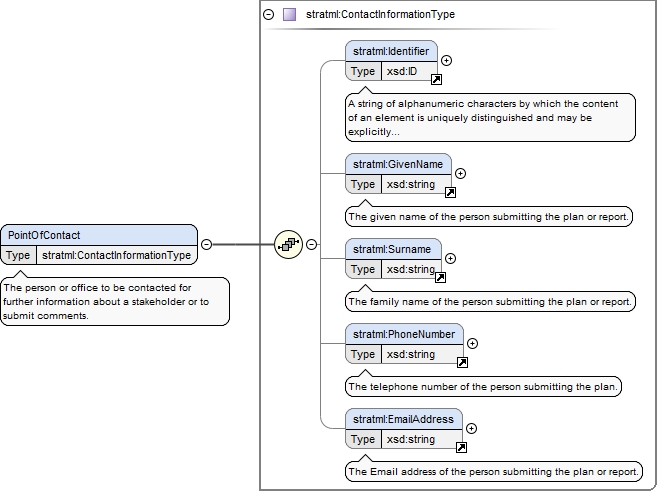

  <stratml:PointOfContact>{0,1}</stratml:PointOfContact>
</stratml:Stakeholder>
Attributes
QName Type Use Annotation
StakeholderTypeType restriction of xsd:string optional

documentation

An attribute indicating whether
the stakeholder is an individual person, an organization, a generic group of people,
or an AI agent.
Source

<xsd:element name="Stakeholder" id="uuid-1effcb49-9462-4c9b-bdc2-92971c9fc9cf">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">An individual, organization, or generic group whose interests may be affected by or whose action may be required to achieve a goal or objective.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:Name" id="uuid-35cc454d-43d4-46b2-a548-eeb3ff8605dd"/>
      <xsd:element ref="stratml:Description" id="uuid-7e18eb24-475c-4bcf-a3c4-1c43adaf127c" minOccurs="0"/>
      <xsd:element ref="stratml:Role" id="uuid-75B20BA6-6B35-490b-BE78-B98008D49CC2" minOccurs="0" maxOccurs="unbounded"/>
      <!-- New to Part 3: -->
      <xsd:element ref="stratml:Categorization" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="stratml:PointOfContact" minOccurs="0"/>
    </xsd:sequence>
    <xsd:attribute name="StakeholderTypeType" use="optional" id="uuid-F64605F4-D372-487C-9C5D-D68F1031BA86">
      <xsd:annotation>
        <xsd:documentation source="documentation" xml:lang="EN">An attribute indicating whether the stakeholder is an individual person, an organization, a generic group of people, or an AI agent.</xsd:documentation>
      </xsd:annotation>
      <xsd:simpleType>
        <xsd:restriction base="xsd:string">
          <xsd:enumeration value="Person"/>
          <xsd:enumeration value="Organization"/>
          <xsd:enumeration value="Generic_Group"/>
          <xsd:enumeration value="AI_Agent"/>
        </xsd:restriction>
      </xsd:simpleType>
    </xsd:attribute>
  </xsd:complexType>
</xsd:element>

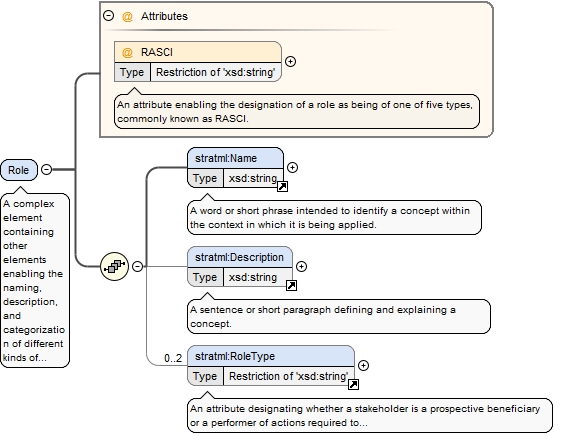

Element stratml:Role
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A complex element containing other
elements enabling the naming, description, and categorization of different kinds of interests
individuals and groups may have in the achievement of goals and objectives.
Diagram
DiagramPart3_20260718_xsd.tmp#Role_RASCIPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#RoleType
Properties
content complex
Used by
Model
Children stratml:Description, stratml:Name, stratml:RoleType
Instance

<stratml:Role RASCI="" xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{1,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
  <stratml:RoleType>{0,2}</stratml:RoleType>
</stratml:Role>
Attributes
QName Type Use Annotation
RASCI restriction of xsd:string optional

documentation

An attribute enabling the
designation of a role as being of one of five types, commonly known as
RASCI.
Source

<xsd:element name="Role" id="uuid-6BEF4BD5-C9DB-497c-A264-B81B443F36AA">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A complex element containing other elements enabling the naming, description, and categorization of different kinds of interests individuals and groups may have in the achievement of goals and objectives.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:Name" id="uuid-8AA40586-F938-44fd-8D84-873E6E172480"/>
      <xsd:element ref="stratml:Description" id="uuid-E7588067-5425-4087-AE9F-191CF2058B09" minOccurs="0"/>
      <xsd:element ref="stratml:RoleType" id="uuid-9F732A4D-0A67-482a-85CC-F2FEBAF4B935" minOccurs="0" maxOccurs="2"/>
    </xsd:sequence>
    <!-- New to Part 3: -->
    <xsd:attribute name="RASCI" use="optional">
      <xsd:annotation>
        <xsd:documentation source="documentation" xml:lang="EN">An attribute enabling the designation of a role as being of one of five types, commonly known as RASCI.</xsd:documentation>
      </xsd:annotation>
      <xsd:simpleType>
        <xsd:restriction base="xsd:string">
          <xsd:enumeration value="Responsible"/>
          <xsd:enumeration value="Accountable"/>
          <xsd:enumeration value="Supportive"/>
          <xsd:enumeration value="Consulted"/>
          <xsd:enumeration value="Informed"/>
        </xsd:restriction>
      </xsd:simpleType>
    </xsd:attribute>
  </xsd:complexType>
</xsd:element>

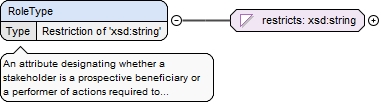

Element stratml:RoleType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

An attribute designating whether a
stakeholder is a prospective beneficiary or a performer of actions required to achieve an
objective, or both a performer and a beneficiary.
Diagram
Diagram
Type restriction of xsd:string
Properties
content simple
Facets
enumeration Performer
enumeration Beneficiary
Used by
Element stratml:Role
Source

<xsd:element name="RoleType" id="uuid-16827A64-1DE2-4cfb-AE53-E8CEE0AA3391">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">An attribute designating whether a stakeholder is a prospective beneficiary or a performer of actions required to achieve an objective, or both a performer and a beneficiary.</xsd:documentation>
  </xsd:annotation>
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="Performer"/>
      <xsd:enumeration value="Beneficiary"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

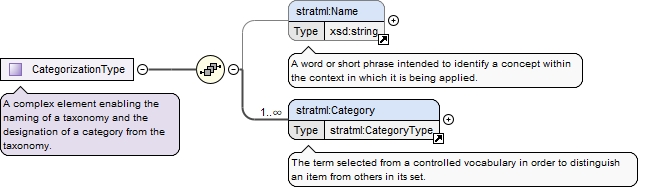

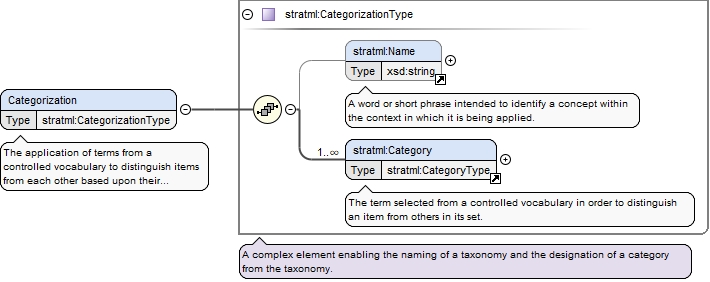

Element stratml:Categorization
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

The application of terms from a
controlled vocabulary to distinguish items from each other based upon their
characteristics.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#CategoryPart3_20260718_xsd.tmp#CategorizationType
Type stratml:CategorizationType
Properties
content complex
Used by
Model
Children stratml:Category, stratml:Name
Instance

<stratml:Categorization xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Category>{1,unbounded}</stratml:Category>
</stratml:Categorization>
Source

<xsd:element name="Categorization" type="stratml:CategorizationType" id="uuid-902c48d2-4b7e-7625-48su-a86a446988bb">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">The application of terms from a controlled vocabulary to distinguish items from each other based upon their characteristics.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

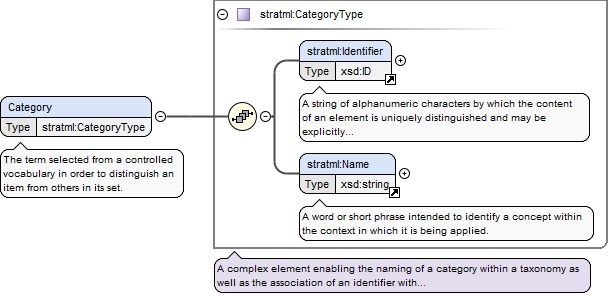

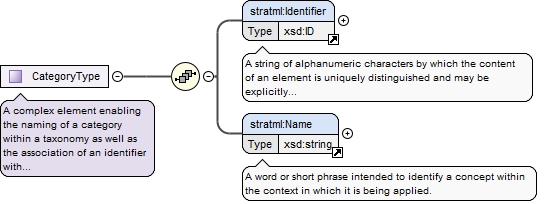

Element stratml:Category
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

The term selected from a controlled
vocabulary in order to distinguish an item from others in its set.
Diagram
DiagramPart3_20260718_xsd.tmp#IdentifierPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#CategoryType
Type stratml:CategoryType
Properties
content complex
Used by
Model
Children stratml:Identifier, stratml:Name
Instance

<stratml:Category xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Identifier>{1,1}</stratml:Identifier>
  <stratml:Name>{1,1}</stratml:Name>
</stratml:Category>
Source

<xsd:element name="Category" type="stratml:CategoryType" id="uuid-902c48d2-4b7e-5286-48su-a86a446988bb">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">The term selected from a controlled vocabulary in order to distinguish an item from others in its set.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

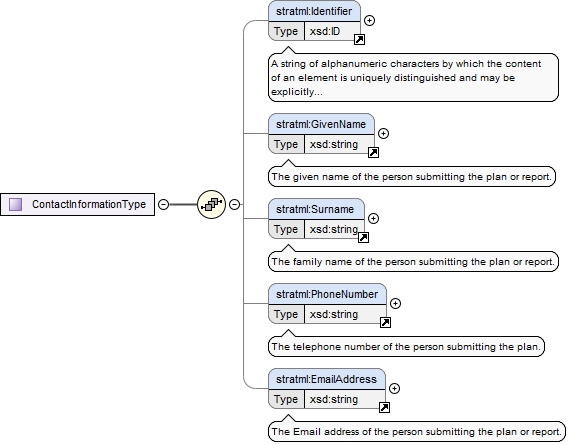

Element stratml:PointOfContact
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

The person or office to be contacted
for further information about a stakeholder or to submit comments.
Diagram
DiagramPart3_20260718_xsd.tmp#IdentifierPart3_20260718_xsd.tmp#GivenNamePart3_20260718_xsd.tmp#SurnamePart3_20260718_xsd.tmp#PhoneNumberPart3_20260718_xsd.tmp#EmailAddressPart3_20260718_xsd.tmp#ContactInformationType
Type stratml:ContactInformationType
Properties
content complex
Used by
Model
Children stratml:EmailAddress, stratml:GivenName, stratml:Identifier, stratml:PhoneNumber, stratml:Surname
Instance

<stratml:PointOfContact xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Identifier>{0,1}</stratml:Identifier>
  <stratml:GivenName>{0,1}</stratml:GivenName>
  <stratml:Surname>{0,1}</stratml:Surname>
  <stratml:PhoneNumber>{0,1}</stratml:PhoneNumber>
  <stratml:EmailAddress>{0,1}</stratml:EmailAddress>
</stratml:PointOfContact>
Source

<xsd:element name="PointOfContact" type="stratml:ContactInformationType" id="uuid-1dec258f-2396-5599-acfe-677c1cf24bf3">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">The person or office to be contacted for further information about a stakeholder or to submit comments.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

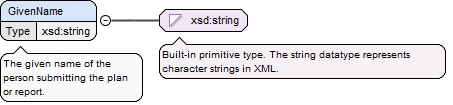

Element stratml:GivenName
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

The given name of the person
submitting the plan or report.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source

<xsd:element name="GivenName" type="xsd:string" id="uuid-a8c3e55c-96f2-404a-97b5-16022d9369ac">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">The given name of the person submitting the plan or report.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

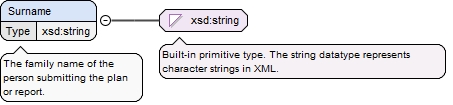

Element stratml:Surname
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

The family name of the person
submitting the plan or report.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source

<xsd:element name="Surname" type="xsd:string" id="uuid-d48842b4-9324-4f71-9502-1a991b707b38">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">The family name of the person submitting the plan or report.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

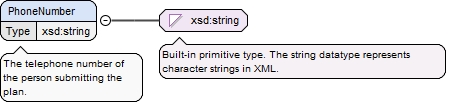

Element stratml:PhoneNumber
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

The telephone number of the person
submitting the plan.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source

<xsd:element name="PhoneNumber" type="xsd:string" id="uuid-9084c2d2-4b7e-4189-a784-a86a4469a01c">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">The telephone number of the person submitting the plan.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

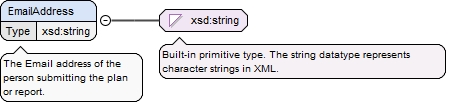

Element stratml:EmailAddress
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

The Email address of the person
submitting the plan or report.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source

<xsd:element name="EmailAddress" type="xsd:string" id="uuid-412bb450-d116-4dec-9269-a92209232df1">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">The Email address of the person submitting the plan or report.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:Competency
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A capability that is unique to the
organization, difficult for competitors to duplicate, can be leveraged broadly in multiple
products or services, and contributes perceived value to beneficiary
stakeholders.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#NameDescriptionPairTypePart3_20260718_xsd.tmp#CompetencyType_CompetencyTypeTypePart3_20260718_xsd.tmp#CompetencyType
Type stratml:CompetencyType
Type hierarchy
Properties
content complex
Used by
Model
Children stratml:Description, stratml:Name
Instance

<stratml:Competency CompetencyTypeType="" xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:Competency>
Attributes
QName Type Use Annotation
CompetencyTypeType restriction of xsd:string required

documentation

An attribute enabling the
designation of competencies as being one of three types.
Source

<xsd:element name="Competency" type="stratml:CompetencyType" id="uuid-9084c2d2-4b7e-3333-48su-a86a446988bb">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A capability that is unique to the organization, difficult for competitors to duplicate, can be leveraged broadly in multiple products or services, and contributes perceived value to beneficiary stakeholders.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:ValueProposition
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A statement of value to be delivered
by an organization and a belief on the part of intended beneficiary stakeholders that such
value will be realized.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#NameDescriptionPairType

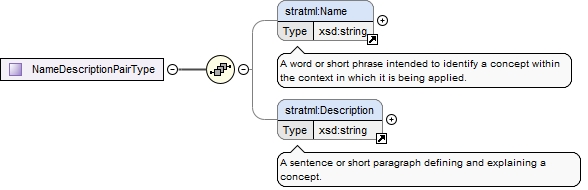

Type stratml:NameDescriptionPairType
Properties
content complex
Used by
Model
Children stratml:Description, stratml:Name
Instance

<stratml:ValueProposition xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:ValueProposition>
Source

<xsd:element name="ValueProposition" type="stratml:NameDescriptionPairType" id="uuid-9084c2d2-4b7e-3333-48su-995m446988bb">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A statement of value to be delivered by an organization and a belief on the part of intended beneficiary stakeholders that such value will be realized.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:SpecialOrganizationType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

An element enabling the naming of
other strategic planning and performance reporting entities that are not commonly
considered to be organizations and not yet included in the controlled vocabulary of
special types of organizations in the context of the StratML standard.
Diagram
DiagramPart3_20260718_xsd.tmp#SpecialOrganizationTypeTypePart3_20260718_xsd.tmp#SpecialOrganizationType_OtherOrganizationTypeName
Type extension of stratml:SpecialOrganizationTypeType
Type hierarchy
Properties
content complex
Used by
Attributes
QName Type Use Annotation
OtherOrganizationTypeName xsd:string optional

documentation

An attribute enabling the
naming of a type of organization not yet included in the enumerated listing of
special types not commonly considered to be organizations.
Source

<xsd:element name="SpecialOrganizationType" id="uuid-84d5cbbf-ea76-402c-8914-ne7v2c1a0917">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">An element enabling the naming of other strategic planning and performance reporting entities that are not commonly considered to be organizations and not yet included in the controlled vocabulary of special types of organizations in the context of the StratML standard.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:simpleContent>
      <xsd:extension base="stratml:SpecialOrganizationTypeType">
        <xsd:attribute name="OtherOrganizationTypeName" type="xsd:string">
          <xsd:annotation>
            <xsd:documentation source="documentation" xml:lang="EN">An attribute enabling the naming of a type of organization not yet included in the enumerated listing of special types not commonly considered to be organizations.</xsd:documentation>
          </xsd:annotation>
        </xsd:attribute>
      </xsd:extension>
    </xsd:simpleContent>
  </xsd:complexType>
</xsd:element>
Element stratml:Vision
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A concise and inspirational statement
implicitly relating an organization's purpose to its values, thus motivating its actions
toward a future state it strives to achieve.
Diagram
DiagramPart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#Identifier
Properties
content complex
Used by
Model
Children stratml:Description, stratml:Identifier
Instance

<stratml:Vision xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Description>{0,1}</stratml:Description>
  <stratml:Identifier>{0,1}</stratml:Identifier>
</stratml:Vision>
Source

<xsd:element name="Vision" id="uuid-5e02d6ec-d669-47c4-b443-e7716bd27528">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A concise and inspirational statement implicitly relating an organization's purpose to its values, thus motivating its actions toward a future state it strives to achieve.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:Description" id="uuid-8201c15c-8206-49f3-9bd3-d816209a8b3c" minOccurs="0"/>
      <xsd:element ref="stratml:Identifier" id="uuid-333e71c6-6b27-4bd2-bf39-c6e7b69d0404" minOccurs="0"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

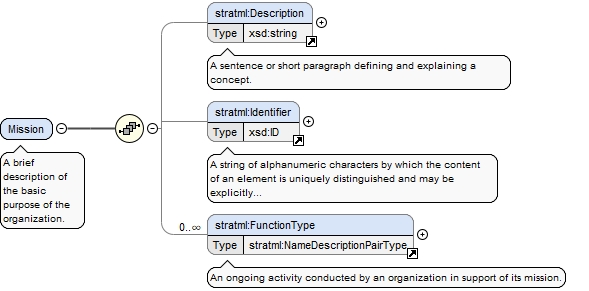

Element stratml:Mission
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A brief description of the basic
purpose of the organization.
Diagram
DiagramPart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#IdentifierPart3_20260718_xsd.tmp#FunctionType
Properties
content complex
Used by
Model
Children stratml:Description, stratml:FunctionType, stratml:Identifier
Instance

<stratml:Mission xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Description>{0,1}</stratml:Description>
  <stratml:Identifier>{0,1}</stratml:Identifier>
  <stratml:FunctionType>{0,unbounded}</stratml:FunctionType>
</stratml:Mission>
Source

<xsd:element name="Mission" id="uuid-755706ea-40d6-40f0-a8e5-998b91390620">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A brief description of the basic purpose of the organization.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:Description" id="uuid-d4000d59-fc40-4f93-bbae-f92de9808818" minOccurs="0"/>
      <xsd:element ref="stratml:Identifier" id="uuid-e8484845-ea0e-47f3-8fe2-55b54db21202" minOccurs="0"/>
      <!-- New to Part 3: -->
      <xsd:element ref="stratml:FunctionType" minOccurs="0" maxOccurs="unbounded"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

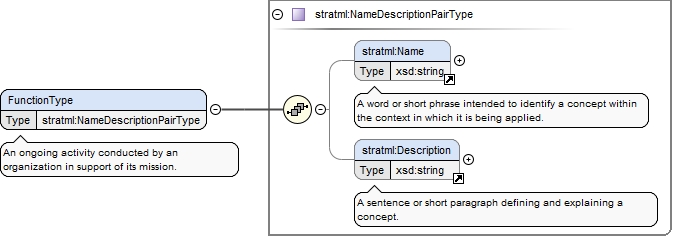

Element stratml:FunctionType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

An ongoing activity conducted by an
organization in support of its mission.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#NameDescriptionPairType
Type stratml:NameDescriptionPairType
Properties
content complex
Used by
Element stratml:Mission
Model
Children stratml:Description, stratml:Name
Instance

<stratml:FunctionType xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:FunctionType>
Source

<xsd:element name="FunctionType" type="stratml:NameDescriptionPairType" id="uuid-DB989313-6D91-46AC-926B-0805B33183C">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">An ongoing activity conducted by an organization in support of its mission.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:Value
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A principle that is important and
helps to define the essential character of the organization.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#Description
Properties
content complex
Used by
Model
Children stratml:Description, stratml:Name
Instance

<stratml:Value xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:Value>
Source

<xsd:element name="Value" id="uuid-50f98ade-573c-4afa-8696-1d0e4a2c7ff3">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A principle that is important and helps to define the essential character of the organization.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:Name" id="uuid-54768289-ad1d-4983-8b30-081f6b1fdeb3" minOccurs="0"/>
      <xsd:element ref="stratml:Description" id="uuid-f285ccf3-d061-47a5-ac0d-873a8971883b" minOccurs="0"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

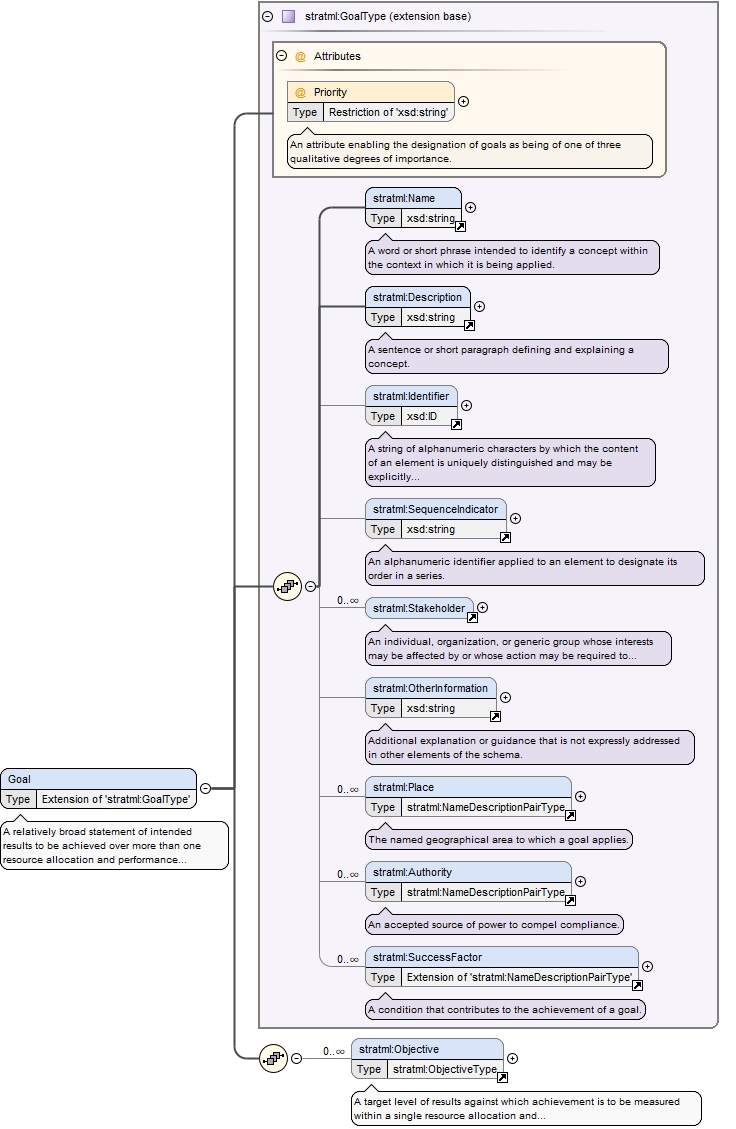

Element stratml:Goal
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A relatively broad statement of
intended results to be achieved over more than one resource allocation and performance
measurement cycle.

documentation

Supports Mission
Diagram
DiagramPart3_20260718_xsd.tmp#GoalType_PriorityPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#IdentifierPart3_20260718_xsd.tmp#SequenceIndicatorPart3_20260718_xsd.tmp#StakeholderPart3_20260718_xsd.tmp#OtherInformationPart3_20260718_xsd.tmp#PlacePart3_20260718_xsd.tmp#AuthorityPart3_20260718_xsd.tmp#SuccessFactorPart3_20260718_xsd.tmp#GoalTypePart3_20260718_xsd.tmp#Objective
Type extension of stratml:GoalType
Type hierarchy
Properties
content complex
Used by
Model
Children stratml:Authority, stratml:Description, stratml:Identifier, stratml:Name, stratml:Objective, stratml:OtherInformation, stratml:Place, stratml:SequenceIndicator, stratml:Stakeholder, stratml:SuccessFactor
Instance

<stratml:Goal Priority="" xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{1,1}</stratml:Name>
  <stratml:Description>{1,1}</stratml:Description>
  <stratml:Identifier>{0,1}</stratml:Identifier>
  <stratml:SequenceIndicator>{0,1}</stratml:SequenceIndicator>
  <stratml:Stakeholder StakeholderTypeType="">{0,unbounded}</stratml:Stakeholder>
  <stratml:OtherInformation>{0,1}</stratml:OtherInformation>
  <stratml:Place>{0,unbounded}</stratml:Place>
  <stratml:Authority>{0,unbounded}</stratml:Authority>
  <stratml:SuccessFactor Criticality="" InternalOrExternal="">{0,unbounded}</stratml:SuccessFactor>
  <stratml:Objective>{0,unbounded}</stratml:Objective>
</stratml:Goal>
Attributes
QName Type Use Annotation
Priority restriction of xsd:string optional

documentation

An attribute enabling the
designation of goals as being of one of three qualitative degrees of
importance.
Source

<xsd:element name="Goal" id="uuid-1e56b2c9-c6d6-4f79-8ad7-cdb1508a9614">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A relatively broad statement of intended results to be achieved over more than one resource allocation and performance measurement cycle.</xsd:documentation>
    <xsd:documentation source="documentation" xml:lang="EN">Supports Mission</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="stratml:GoalType">
        <xsd:sequence>
          <xsd:element ref="stratml:Objective" id="uuid-28866F8C-AE8F-43a1-8E3D-D146280CE3F2" minOccurs="0" maxOccurs="unbounded"/>
        </xsd:sequence>
      </xsd:extension>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>

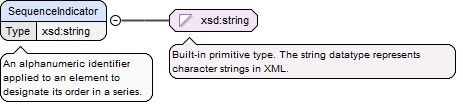

Element stratml:SequenceIndicator
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

An alphanumeric identifier applied to
an element to designate its order in a series.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source

<xsd:element name="SequenceIndicator" type="xsd:string" id="uuid-7f10f639-e7cf-4513-804c-5f4f7592c5e5">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">An alphanumeric identifier applied to an element to designate its order in a series.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:Place
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

The named geographical area to which
a goal applies.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#NameDescriptionPairType
Type stratml:NameDescriptionPairType
Properties
content complex
Used by
Complex Type stratml:GoalType
Element stratml:Goal
Model
Children stratml:Description, stratml:Name
Instance

<stratml:Place xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:Place>
Source

<xsd:element name="Place" type="stratml:NameDescriptionPairType" id="uuid-75570gjb-40d6-40f0-a8e5-998b91390620">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">The named geographical area to which a goal applies.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:Authority
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

An accepted source of power to
compel compliance.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#NameDescriptionPairType
Type stratml:NameDescriptionPairType
Properties
content complex
Used by
Complex Type stratml:GoalType
Element stratml:Goal
Model
Children stratml:Description, stratml:Name
Instance

<stratml:Authority xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:Authority>
Source

<xsd:element name="Authority" type="stratml:NameDescriptionPairType" id="uuid-902c48d2-4b7e-3333-48su-a86a446988bb">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">An accepted source of power to compel compliance.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

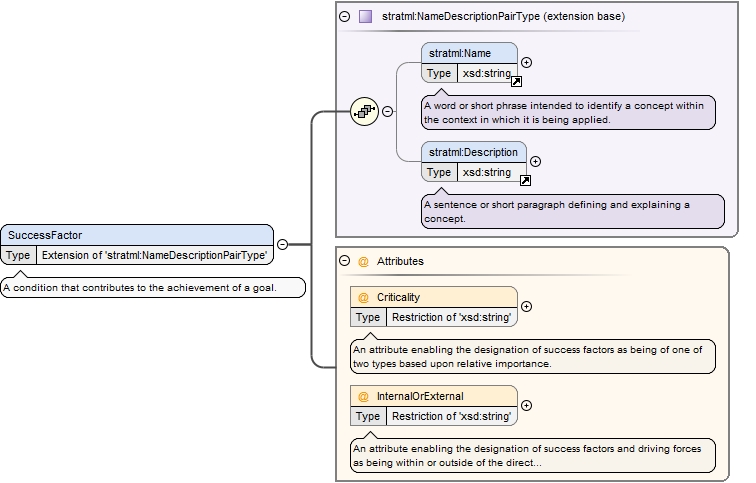

Element stratml:SuccessFactor
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A condition that contributes to the
achievement of a goal.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#NameDescriptionPairTypePart3_20260718_xsd.tmp#SuccessFactor_CriticalityPart3_20260718_xsd.tmp#SuccessFactor_InternalOrExternal
Type extension of stratml:NameDescriptionPairType
Type hierarchy
Properties
content complex
Used by
Complex Type stratml:GoalType
Element stratml:Goal
Model
Children stratml:Description, stratml:Name
Instance

<stratml:SuccessFactor Criticality="" InternalOrExternal="" xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:SuccessFactor>
Attributes
QName Type Use Annotation
Criticality restriction of xsd:string optional

documentation

An attribute enabling the
designation of success factors as being of one of two types based upon relative
importance.
InternalOrExternal restriction of xsd:string optional

documentation

An attribute enabling the
designation of success factors and driving forces as being within or outside of the
direct control of the organization compiling the plan or report.
Source

<xsd:element name="SuccessFactor" id="uuid-5e02ef4b-d669-47c4-b443-d7776bd27528">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A condition that contributes to the achievement of a goal.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="stratml:NameDescriptionPairType">
        <xsd:attribute name="Criticality" use="optional">
          <xsd:annotation>
            <xsd:documentation source="documentation" xml:lang="EN">An attribute enabling the designation of success factors as being of one of two types based upon relative importance.</xsd:documentation>
          </xsd:annotation>
          <xsd:simpleType>
            <xsd:restriction base="xsd:string">
              <xsd:enumeration value="Critical"/>
              <xsd:enumeration value="Contributory"/>
            </xsd:restriction>
          </xsd:simpleType>
        </xsd:attribute>
        <xsd:attribute name="InternalOrExternal" use="optional">
          <xsd:annotation>
            <xsd:documentation source="documentation" xml:lang="EN">An attribute enabling the designation of success factors and driving forces as being within or outside of the direct control of the organization compiling the plan or report.</xsd:documentation>
          </xsd:annotation>
          <xsd:simpleType>
            <xsd:restriction base="xsd:string">
              <xsd:enumeration value="Internal"/>
              <xsd:enumeration value="External"/>
            </xsd:restriction>
          </xsd:simpleType>
        </xsd:attribute>
      </xsd:extension>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>

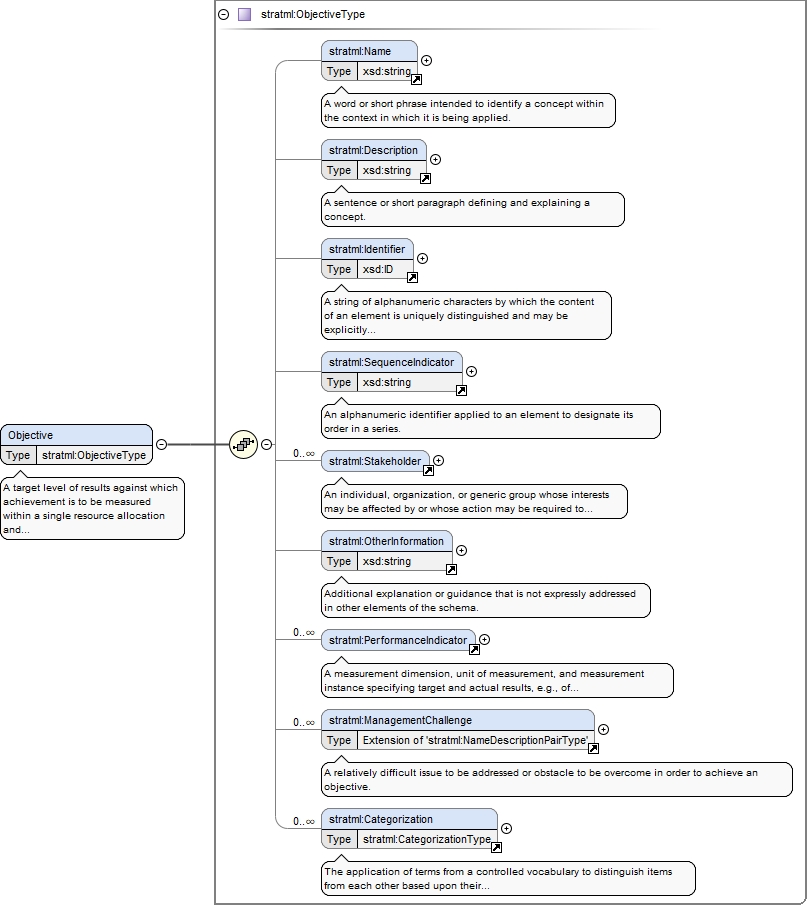

Element stratml:Objective
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A target level of results against
which achievement is to be measured within a single resource allocation and performance
execution cycle.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#IdentifierPart3_20260718_xsd.tmp#SequenceIndicatorPart3_20260718_xsd.tmp#StakeholderPart3_20260718_xsd.tmp#OtherInformationPart3_20260718_xsd.tmp#PerformanceIndicatorPart3_20260718_xsd.tmp#ManagementChallengePart3_20260718_xsd.tmp#CategorizationPart3_20260718_xsd.tmp#ObjectiveType

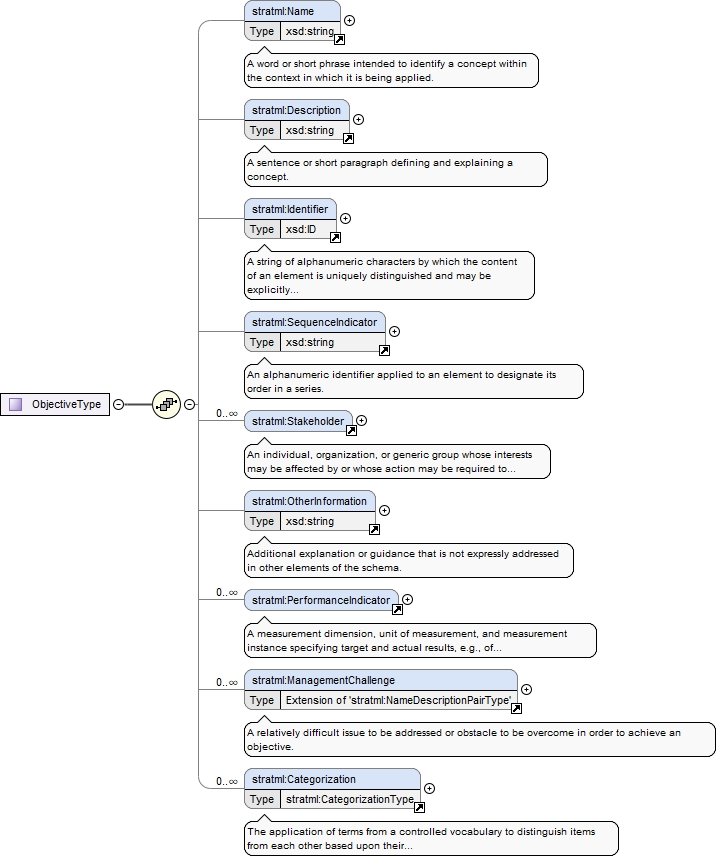

Type stratml:ObjectiveType
Properties
content complex
Used by
Element stratml:Goal
Model
Children stratml:Categorization, stratml:Description, stratml:Identifier, stratml:ManagementChallenge, stratml:Name, stratml:OtherInformation, stratml:PerformanceIndicator, stratml:SequenceIndicator, stratml:Stakeholder
Instance

<stratml:Objective xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
  <stratml:Identifier>{0,1}</stratml:Identifier>
  <stratml:SequenceIndicator>{0,1}</stratml:SequenceIndicator>
  <stratml:Stakeholder StakeholderTypeType="">{0,unbounded}</stratml:Stakeholder>
  <stratml:OtherInformation>{0,1}</stratml:OtherInformation>
  <stratml:PerformanceIndicator Keyness="" PerformanceIndicatorType="" ValueChainStage="">{0,unbounded}</stratml:PerformanceIndicator>
  <stratml:ManagementChallenge Impact="" Probability="">{0,unbounded}</stratml:ManagementChallenge>
  <stratml:Categorization>{0,unbounded}</stratml:Categorization>
</stratml:Objective>
Source

<xsd:element name="Objective" type="stratml:ObjectiveType" id="uuid-AA88DC79-BC74-4a7c-97BD-37EDD048D14C">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A target level of results against which achievement is to be measured within a single resource allocation and performance execution cycle.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

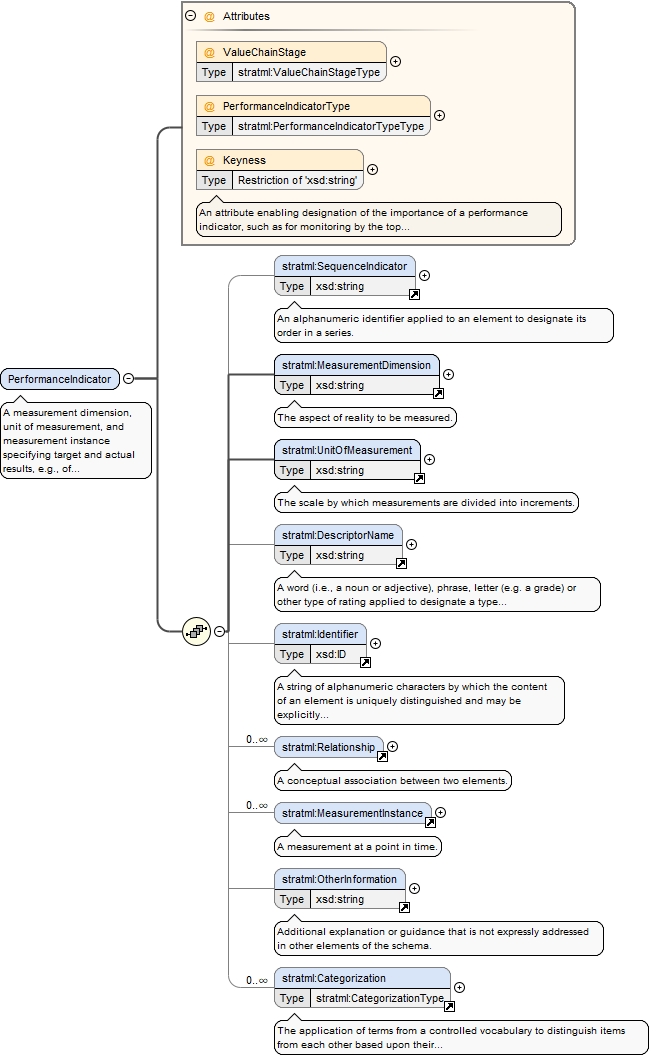

Element stratml:PerformanceIndicator
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A measurement dimension, unit of
measurement, and measurement instance specifying target and actual results, e.g., of inputs
applied, outputs produced, processes conducted, and outcomes realized.
Diagram
DiagramPart3_20260718_xsd.tmp#PerformanceIndicator_ValueChainStagePart3_20260718_xsd.tmp#PerformanceIndicator_PerformanceIndicatorTypePart3_20260718_xsd.tmp#PerformanceIndicator_KeynessPart3_20260718_xsd.tmp#SequenceIndicatorPart3_20260718_xsd.tmp#MeasurementDimensionPart3_20260718_xsd.tmp#UnitOfMeasurementPart3_20260718_xsd.tmp#DescriptorNamePart3_20260718_xsd.tmp#IdentifierPart3_20260718_xsd.tmp#RelationshipPart3_20260718_xsd.tmp#MeasurementInstancePart3_20260718_xsd.tmp#OtherInformationPart3_20260718_xsd.tmp#Categorization
Properties
content complex
Used by
Complex Type stratml:ObjectiveType
Model
Children stratml:Categorization, stratml:DescriptorName, stratml:Identifier, stratml:MeasurementDimension, stratml:MeasurementInstance, stratml:OtherInformation, stratml:Relationship, stratml:SequenceIndicator, stratml:UnitOfMeasurement
Instance

<stratml:PerformanceIndicator Keyness="" PerformanceIndicatorType="" ValueChainStage="" xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:SequenceIndicator>{0,1}</stratml:SequenceIndicator>
  <stratml:MeasurementDimension>{1,1}</stratml:MeasurementDimension>
  <stratml:UnitOfMeasurement>{1,1}</stratml:UnitOfMeasurement>
  <stratml:DescriptorName>{0,1}</stratml:DescriptorName>
  <stratml:Identifier>{0,1}</stratml:Identifier>
  <stratml:Relationship RelationshipType="">{0,unbounded}</stratml:Relationship>
  <stratml:MeasurementInstance>{0,unbounded}</stratml:MeasurementInstance>
  <stratml:OtherInformation>{0,1}</stratml:OtherInformation>
  <stratml:Categorization>{0,unbounded}</stratml:Categorization>
</stratml:PerformanceIndicator>
Attributes
QName Type Use Annotation
Keyness restriction of xsd:string optional

documentation

An attribute enabling
designation of the importance of a performance indicator, such as for monitoring by
the top managers of the organization.
PerformanceIndicatorType stratml:PerformanceIndicatorTypeType optional
ValueChainStage stratml:ValueChainStageType optional
Source

<xsd:element name="PerformanceIndicator" id="uuid-5E26BC7A-7340-48ce-A11E-D3B566026C49">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A measurement dimension, unit of measurement, and measurement instance specifying target and actual results, e.g., of inputs applied, outputs produced, processes conducted, and outcomes realized.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:SequenceIndicator" id="uuid-49339C06-33C8-4e80-8FFE-B1BF1668EE5D" minOccurs="0"/>
      <xsd:element ref="stratml:MeasurementDimension" id="uuid-17139C06-33C8-4e80-8FFE-B1BF1668ED4C"/>
      <xsd:element ref="stratml:UnitOfMeasurement" id="uuid-9E274585-8F26-456A-864A-01E0FB177A3B"/>
      <!-- DescriptorName moved here from Descriptor wrapper; minOccurs="0" added so that
           quantitative PIs without a qualitative label remain valid. -->
      <xsd:element ref="stratml:DescriptorName" id="uuid-9E274585-8F26-456A-10kl-01E0FB177A3B" minOccurs="0"/>
      <xsd:element ref="stratml:Identifier" id="uuid-5C262CB2-FB6B-4508-A0FB-2954CFC98841" minOccurs="0"/>
      <xsd:element ref="stratml:Relationship" id="uuid-537184F4-BB04-409A-BFD9-40B27AD1B9E3" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="stratml:MeasurementInstance" id="uuid-A9FC8FA2-1102-4994-AD1D-40903738999D" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="stratml:OtherInformation" id="uuid2FC2C862-2FE0-44f2-8F3A-A48A1E07BEBC" minOccurs="0"/>
      <!-- New to Part 3: -->
      <xsd:element ref="stratml:Categorization" minOccurs="0" maxOccurs="unbounded"/>
    </xsd:sequence>
    <xsd:attribute name="ValueChainStage" type="stratml:ValueChainStageType" id="uuid-6203C7DD-4373-47B4-A331-063F14B35668"/>
    <xsd:attribute name="PerformanceIndicatorType" type="stratml:PerformanceIndicatorTypeType" id="uuid-5607C853-43F1-43E5-BA82-99E08F59AB31"/>
    <!-- New to Part 3: -->
    <xsd:attribute name="Keyness" use="optional">
      <xsd:annotation>
        <xsd:documentation source="documentation" xml:lang="EN">An attribute enabling designation of the importance of a performance indicator, such as for monitoring by the top managers of the organization.</xsd:documentation>
      </xsd:annotation>
      <xsd:simpleType>
        <xsd:restriction base="xsd:string">
          <xsd:enumeration value="To_Be_Determined"/>
          <xsd:enumeration value="Key"/>
          <xsd:enumeration value="Secondary"/>
          <xsd:enumeration value="Ancillary"/>
        </xsd:restriction>
      </xsd:simpleType>
    </xsd:attribute>
  </xsd:complexType>
</xsd:element>
Element stratml:MeasurementDimension
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

The aspect of reality to be
measured.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source

<xsd:element name="MeasurementDimension" type="xsd:string" id="uuid-A81AF0C9-7900-44dd-9E2C-77F601EB13D2">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">The aspect of reality to be measured.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

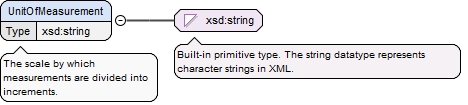

Element stratml:UnitOfMeasurement
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

The scale by which measurements are divided into increments.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source

<xsd:element name="UnitOfMeasurement" type="xsd:string" id="uuid-BCF7687F-8056-4F02-AC0F-E92B84BEC16E">
  <xsd:annotation>
    <xsd:documentation>The scale by which measurements are divided into increments.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

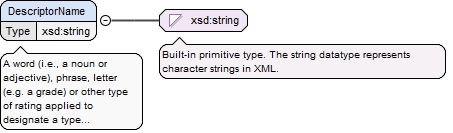

Element stratml:DescriptorName
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A word (i.e., a noun or adjective),
phrase, letter (e.g. a grade) or other type of rating applied to designate a type of
descriptor.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source

<xsd:element name="DescriptorName" type="xsd:string" id="uuid-6289d536-98a7-40bd-978c-37ade6ed5f7e">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A word (i.e., a noun or adjective), phrase, letter (e.g. a grade) or other type of rating applied to designate a type of descriptor.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

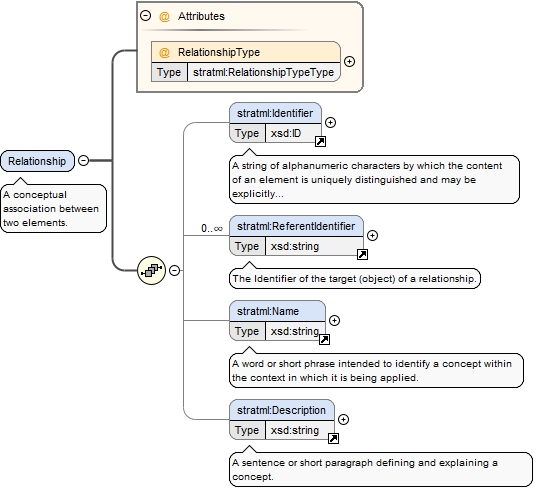

Element stratml:Relationship
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

A conceptual association between two elements.
Diagram
DiagramPart3_20260718_xsd.tmp#Relationship_RelationshipTypePart3_20260718_xsd.tmp#IdentifierPart3_20260718_xsd.tmp#ReferentIdentifierPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#Description
Properties
content complex
Used by
Model
Children stratml:Description, stratml:Identifier, stratml:Name, stratml:ReferentIdentifier
Instance

<stratml:Relationship RelationshipType="" xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Identifier>{0,1}</stratml:Identifier>
  <stratml:ReferentIdentifier>{0,unbounded}</stratml:ReferentIdentifier>
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:Relationship>
Attributes
Source

<xsd:element name="Relationship" id="uuid-13C30F4E-0687-4C56-A052-7ED466D43D68">
  <xsd:annotation>
    <xsd:documentation>A conceptual association between two elements.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:Identifier" id="uuid-ADB401CE-F9B5-4D46-A8AE-1C5F7A1CA85A" minOccurs="0" maxOccurs="1"/>
      <xsd:element ref="stratml:ReferentIdentifier" id="uuid-ADB401CE-5B9F-4D46-A8AE-1C5F7A1CA85A" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="stratml:Name" id="uuid-C8666759-562B-419C-8DF8-E736A4478EF6" minOccurs="0"/>
      <xsd:element ref="stratml:Description" id="uuid-46D15F06-AB63-4363-A87A-968EBD11EFF3" minOccurs="0"/>
    </xsd:sequence>
    <xsd:attribute name="RelationshipType" type="stratml:RelationshipTypeType" id="uuid-424EE340-4A1E-4791-B964-4CC3072BC69F"/>
  </xsd:complexType>
</xsd:element>
Element stratml:ReferentIdentifier
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

The Identifier of the target (object) of a relationship.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source

<xsd:element name="ReferentIdentifier" type="xsd:string" id="uuid-13C30F4E-7806-4C56-A052-7ED466D43D68">
  <xsd:annotation>
    <xsd:documentation>The Identifier of the target (object) of a relationship.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

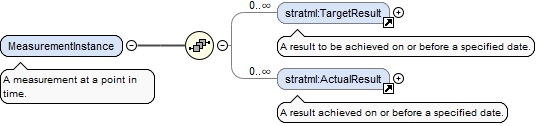

Element stratml:MeasurementInstance
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A measurement at a point in
time.
Diagram
DiagramPart3_20260718_xsd.tmp#TargetResultPart3_20260718_xsd.tmp#ActualResult
Properties
content complex
Used by
Model
Children stratml:ActualResult, stratml:TargetResult
Instance

<stratml:MeasurementInstance xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:TargetResult>{0,unbounded}</stratml:TargetResult>
  <stratml:ActualResult>{0,unbounded}</stratml:ActualResult>
</stratml:MeasurementInstance>
Source

<xsd:element name="MeasurementInstance" id="uuid-CA989313-6D91-46AC-926B-0805B331882B">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A measurement at a point in time.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:TargetResult" id="uuid-BDE57259-F01C-4aac-BB59-71A0101324E6" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="stratml:ActualResult" id="uuid-B52A1491-AC8D-4548-A1A4-628342FA525A" minOccurs="0" maxOccurs="unbounded"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

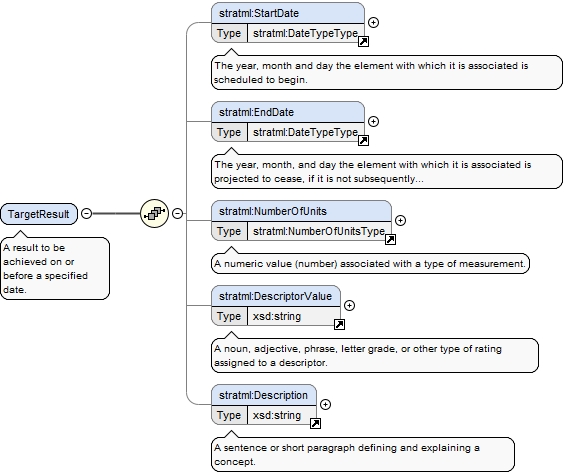

Element stratml:TargetResult
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A result to be achieved on or before
a specified date.
Diagram
DiagramPart3_20260718_xsd.tmp#StartDatePart3_20260718_xsd.tmp#EndDatePart3_20260718_xsd.tmp#NumberOfUnitsPart3_20260718_xsd.tmp#DescriptorValuePart3_20260718_xsd.tmp#Description
Properties
content complex
Used by
Model
Children stratml:Description, stratml:DescriptorValue, stratml:EndDate, stratml:NumberOfUnits, stratml:StartDate
Instance

<stratml:TargetResult xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:StartDate>{0,1}</stratml:StartDate>
  <stratml:EndDate>{0,1}</stratml:EndDate>
  <stratml:NumberOfUnits>{0,1}</stratml:NumberOfUnits>
  <stratml:DescriptorValue>{0,1}</stratml:DescriptorValue>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:TargetResult>
Source

<xsd:element name="TargetResult" id="uuid-A9278A5B-2E6A-4ad4-BA13-838E0210FD26">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A result to be achieved on or before a specified date.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:StartDate" minOccurs="0" maxOccurs="1"/>
      <xsd:element ref="stratml:EndDate" minOccurs="0" maxOccurs="1"/>
      <xsd:element ref="stratml:NumberOfUnits" minOccurs="0" maxOccurs="1"/>
      <xsd:element ref="stratml:DescriptorValue" minOccurs="0" maxOccurs="1"/>
      <xsd:element ref="stratml:Description" minOccurs="0" maxOccurs="1"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

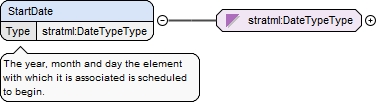

Element stratml:StartDate
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

The year, month and day the element
with which it is associated is scheduled to begin.
Diagram

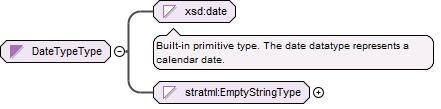

DiagramPart3_20260718_xsd.tmp#DateTypeType
Type stratml:DateTypeType
Properties
content simple
Used by
Source

<xsd:element name="StartDate" type="stratml:DateTypeType" id="uuid-11a1e9c3-959b-4c2e-b3de-5e1296eb6ab3">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">The year, month and day the element with which it is associated is scheduled to begin.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

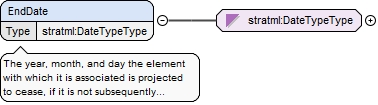

Element stratml:EndDate
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

The year, month, and day the element
with which it is associated is projected to cease, if it is not subsequently extended.
Typically the end of a calendar or fiscal year.
Diagram
DiagramPart3_20260718_xsd.tmp#DateTypeType
Type stratml:DateTypeType
Properties
content simple
Used by
Source

<xsd:element name="EndDate" type="stratml:DateTypeType" id="uuid-19977fd4-556d-41bc-be29-477e05e4c971">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">The year, month, and day the element with which it is associated is projected to cease, if it is not subsequently extended. Typically the end of a calendar or fiscal year.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

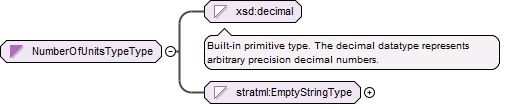

Element stratml:NumberOfUnits
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A numeric value (number) associated
with a type of measurement.
Diagram
DiagramPart3_20260718_xsd.tmp#NumberOfUnitsType
Type stratml:NumberOfUnitsType
Type hierarchy
Properties
content simple
Used by
Source

<xsd:element name="NumberOfUnits" type="stratml:NumberOfUnitsType" id="uuid-41DEC7F0-F974-4903-B535-B219F2EB284A">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A numeric value (number) associated with a type of measurement.</xsd:documentation>
  </xsd:annotation>
</xsd:element>

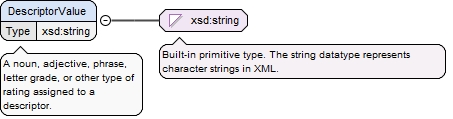

Element stratml:DescriptorValue
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A noun, adjective, phrase, letter
grade, or other type of rating assigned to a descriptor.
Diagram
Diagram
Type xsd:string
Properties
content simple
Used by
Source

<xsd:element name="DescriptorValue" type="xsd:string" id="uuid-625d9836-98a7-40bd-978c-37ade6ed5f7e">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A noun, adjective, phrase, letter grade, or other type of rating assigned to a descriptor.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:ActualResult
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A result achieved on or before
a specified date.
Diagram
DiagramPart3_20260718_xsd.tmp#StartDatePart3_20260718_xsd.tmp#EndDatePart3_20260718_xsd.tmp#NumberOfUnitsPart3_20260718_xsd.tmp#DescriptorValuePart3_20260718_xsd.tmp#Description
Properties
content complex
Used by
Model
Children stratml:Description, stratml:DescriptorValue, stratml:EndDate, stratml:NumberOfUnits, stratml:StartDate
Instance

<stratml:ActualResult xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:StartDate>{0,1}</stratml:StartDate>
  <stratml:EndDate>{0,1}</stratml:EndDate>
  <stratml:NumberOfUnits>{0,1}</stratml:NumberOfUnits>
  <stratml:DescriptorValue>{0,1}</stratml:DescriptorValue>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:ActualResult>
Source

<xsd:element name="ActualResult" id="uuid-576F1BF5-C7E4-4ad5-88E9-2781C538F8D4">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A result achieved on or before a specified date.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:StartDate" minOccurs="0" maxOccurs="1"/>
      <xsd:element ref="stratml:EndDate" minOccurs="0" maxOccurs="1"/>
      <xsd:element ref="stratml:NumberOfUnits" minOccurs="0" maxOccurs="1"/>
      <xsd:element ref="stratml:DescriptorValue" minOccurs="0" maxOccurs="1"/>
      <xsd:element ref="stratml:Description" minOccurs="0" maxOccurs="1"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>
Element stratml:ManagementChallenge
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A relatively difficult issue to be
addressed or obstacle to be overcome in order to achieve an objective.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#NameDescriptionPairTypePart3_20260718_xsd.tmp#ManagementChallenge_ProbabilityPart3_20260718_xsd.tmp#ManagementChallenge_Impact
Type extension of stratml:NameDescriptionPairType
Type hierarchy
Properties
content complex
Used by
Complex Type stratml:ObjectiveType
Model
Children stratml:Description, stratml:Name
Instance

<stratml:ManagementChallenge Impact="" Probability="" xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:ManagementChallenge>
Attributes
QName Type Use Annotation
Impact restriction of xsd:string required

documentation

An attribute documenting the
scope of the effect of a management challenge, if it were to occur.
Probability restriction of xsd:string required

documentation

An attribute documenting the
likelihood that a management challenge will occur.
Source

<xsd:element name="ManagementChallenge" id="uuid-50f98cmw-573c-4afa-wdpc-1d0e4a2c7ff3">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A relatively difficult issue to be addressed or obstacle to be overcome in order to achieve an objective.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="stratml:NameDescriptionPairType">
        <xsd:attribute name="Probability" use="required">
          <xsd:annotation>
            <xsd:documentation source="documentation" xml:lang="EN">An attribute documenting the likelihood that a management challenge will occur.</xsd:documentation>
          </xsd:annotation>
          <xsd:simpleType>
            <xsd:restriction base="xsd:string">
              <xsd:enumeration value="To_Be_Determined"/>
              <xsd:enumeration value="High"/>
              <xsd:enumeration value="Medium"/>
              <xsd:enumeration value="Low"/>
            </xsd:restriction>
          </xsd:simpleType>
        </xsd:attribute>
        <xsd:attribute name="Impact" use="required">
          <xsd:annotation>
            <xsd:documentation source="documentation" xml:lang="EN">An attribute documenting the scope of the effect of a management challenge, if it were to occur.</xsd:documentation>
          </xsd:annotation>
          <xsd:simpleType>
            <xsd:restriction base="xsd:string">
              <xsd:enumeration value="To_Be_Determined"/>
              <xsd:enumeration value="High"/>
              <xsd:enumeration value="Medium"/>
              <xsd:enumeration value="Low"/>
            </xsd:restriction>
          </xsd:simpleType>
        </xsd:attribute>
      </xsd:extension>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>
Element stratml:AdministrativeInformation
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

Useful information that is not
essential and thus not part of the core of the plans or reports.
Diagram
DiagramPart3_20260718_xsd.tmp#IdentifierPart3_20260718_xsd.tmp#StartDatePart3_20260718_xsd.tmp#EndDatePart3_20260718_xsd.tmp#PublicationDatePart3_20260718_xsd.tmp#SourcePart3_20260718_xsd.tmp#SubmitterPart3_20260718_xsd.tmp#AdministrativeInformationType
Type stratml:AdministrativeInformationType
Properties
content complex
Used by
Model
Children stratml:EndDate, stratml:Identifier, stratml:PublicationDate, stratml:Source, stratml:StartDate, stratml:Submitter
Instance

<stratml:AdministrativeInformation xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Identifier>{0,1}</stratml:Identifier>
  <stratml:StartDate>{0,1}</stratml:StartDate>
  <stratml:EndDate>{0,1}</stratml:EndDate>
  <stratml:PublicationDate>{0,1}</stratml:PublicationDate>
  <stratml:Source>{0,1}</stratml:Source>
  <stratml:Submitter>{0,1}</stratml:Submitter>
</stratml:AdministrativeInformation>
Source

<xsd:element name="AdministrativeInformation" type="stratml:AdministrativeInformationType" id="uuid-9d240214-9768-4dd9-b98a-c62448b63f26">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">Useful information that is not essential and thus not part of the core of the plans or reports.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:PublicationDate
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

The day, month, and year a plan or
report was published in its current form.
Diagram
DiagramPart3_20260718_xsd.tmp#DateTypeType
Type stratml:DateTypeType
Properties
content simple
Used by
Source

<xsd:element name="PublicationDate" type="stratml:DateTypeType" id="uuid-04d8f96c-b5fc-458e-8de4-f5e2746e8b8b">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">The day, month, and year a plan or report was published in its current form.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:Source
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

The Web address (URL) for the
authoritative source of this document.
Diagram
Diagram
Type xsd:anyURI
Properties
content simple
Used by
Source

<xsd:element name="Source" type="xsd:anyURI" id="uuid-03b90177-d13b-4e32-ada9-7c7a1eb1703b">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">The Web address (URL) for the authoritative source of this document.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:Submitter
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

The person submitting the plan or
report in StratML format.
Diagram
DiagramPart3_20260718_xsd.tmp#IdentifierPart3_20260718_xsd.tmp#GivenNamePart3_20260718_xsd.tmp#SurnamePart3_20260718_xsd.tmp#PhoneNumberPart3_20260718_xsd.tmp#EmailAddressPart3_20260718_xsd.tmp#ContactInformationType
Type stratml:ContactInformationType
Properties
content complex
Used by
Model
Children stratml:EmailAddress, stratml:GivenName, stratml:Identifier, stratml:PhoneNumber, stratml:Surname
Instance

<stratml:Submitter xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Identifier>{0,1}</stratml:Identifier>
  <stratml:GivenName>{0,1}</stratml:GivenName>
  <stratml:Surname>{0,1}</stratml:Surname>
  <stratml:PhoneNumber>{0,1}</stratml:PhoneNumber>
  <stratml:EmailAddress>{0,1}</stratml:EmailAddress>
</stratml:Submitter>
Source

<xsd:element name="Submitter" type="stratml:ContactInformationType" id="uuid-1dec258f-1656-4173-acfe-677c1cf24bf3">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">The person submitting the plan or report in StratML format.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:StrategyFramework
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

The methodology used to determine
goals and objectives.
Diagram
DiagramPart3_20260718_xsd.tmp#DrivingForcePart3_20260718_xsd.tmp#SWOTPart3_20260718_xsd.tmp#PESTLE
Properties
content complex
Used by
Model
Children stratml:DrivingForce, stratml:PESTLE, stratml:SWOT
Instance

<stratml:StrategyFramework xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:DrivingForce InhibitingOrEnabling="" InternalOrExternal="">{0,1}</stratml:DrivingForce>
  <stratml:SWOT>{0,1}</stratml:SWOT>
  <stratml:PESTLE>{0,1}</stratml:PESTLE>
</stratml:StrategyFramework>
Source

<xsd:element name="StrategyFramework" id="uuid-A9278A5B-2E6A-4ad4-31AB-838E0210FD26">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">The methodology used to determine goals and objectives.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:choice>
      <xsd:element ref="stratml:DrivingForce" minOccurs="0"/>
      <xsd:element ref="stratml:SWOT" minOccurs="0"/>
      <xsd:element ref="stratml:PESTLE" minOccurs="0"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element stratml:DrivingForce
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A dynamic that may powerfully
influence the achievement of goals.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#NameDescriptionPairTypePart3_20260718_xsd.tmp#DrivingForce_InhibitingOrEnablingPart3_20260718_xsd.tmp#DrivingForce_InternalOrExternal
Type extension of stratml:NameDescriptionPairType
Type hierarchy
Properties
content complex
Used by
Model
Children stratml:Description, stratml:Name
Instance

<stratml:DrivingForce InhibitingOrEnabling="" InternalOrExternal="" xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:DrivingForce>
Attributes
QName Type Use
InhibitingOrEnabling restriction of xsd:string optional
InternalOrExternal restriction of xsd:string optional
Source

<xsd:element name="DrivingForce" id="uuid-5e02ef4b-d669-47c4-b443-d77db6727528">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A dynamic that may powerfully influence the achievement of goals.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="stratml:NameDescriptionPairType">
        <xsd:attribute name="InhibitingOrEnabling" use="optional">
          <xsd:simpleType>
            <xsd:restriction base="xsd:string">
              <xsd:enumeration value="Enabling"/>
              <xsd:enumeration value="Inhibiting"/>
            </xsd:restriction>
          </xsd:simpleType>
        </xsd:attribute>
        <xsd:attribute name="InternalOrExternal" use="optional">
          <xsd:simpleType>
            <xsd:restriction base="xsd:string">
              <xsd:enumeration value="Internal"/>
              <xsd:enumeration value="External"/>
            </xsd:restriction>
          </xsd:simpleType>
        </xsd:attribute>
      </xsd:extension>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>
Element stratml:SWOT
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

Strengths, weaknesses,
opportunities, and threats.
Diagram
DiagramPart3_20260718_xsd.tmp#StrengthPart3_20260718_xsd.tmp#WeaknessPart3_20260718_xsd.tmp#OpportunityPart3_20260718_xsd.tmp#Threat
Properties
content complex
Used by
Model
Children stratml:Opportunity, stratml:Strength, stratml:Threat, stratml:Weakness
Instance

<stratml:SWOT xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Strength>{0,unbounded}</stratml:Strength>
  <stratml:Weakness>{0,unbounded}</stratml:Weakness>
  <stratml:Opportunity>{0,unbounded}</stratml:Opportunity>
  <stratml:Threat>{0,unbounded}</stratml:Threat>
</stratml:SWOT>
Source

<xsd:element name="SWOT" id="uuid-A9278A5B-2E6A-4ad4-31AB-838E021062fd">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">Strengths, weaknesses, opportunities, and threats.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:Strength" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="stratml:Weakness" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="stratml:Opportunity" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="stratml:Threat" minOccurs="0" maxOccurs="unbounded"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>
Element stratml:Strength
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A positive aspect of an organization
that may provide a competitive advantage.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#NameDescriptionPairType
Type stratml:NameDescriptionPairType
Properties
content complex
Used by
Element stratml:SWOT
Model
Children stratml:Description, stratml:Name
Instance

<stratml:Strength xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:Strength>
Source

<xsd:element name="Strength" type="stratml:NameDescriptionPairType" id="uuid-9084c2d2-4b7e-4189-a784-a86a446934ld">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A positive aspect of an organization that may provide a competitive advantage.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:Weakness
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A negative aspect of an organization
that may place it at a competitive disadvantage.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#NameDescriptionPairType
Type stratml:NameDescriptionPairType
Properties
content complex
Used by
Element stratml:SWOT
Model
Children stratml:Description, stratml:Name
Instance

<stratml:Weakness xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:Weakness>
Source

<xsd:element name="Weakness" type="stratml:NameDescriptionPairType" id="uuid-9084c2d2-4b7e-4189-a784-a86a44695xs9">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A negative aspect of an organization that may place it at a competitive disadvantage.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:Opportunity
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A condition upon which an
organization may wish to capitalize to benefit its stakeholders.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#NameDescriptionPairType
Type stratml:NameDescriptionPairType
Properties
content complex
Used by
Element stratml:SWOT
Model
Children stratml:Description, stratml:Name
Instance

<stratml:Opportunity xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:Opportunity>
Source

<xsd:element name="Opportunity" type="stratml:NameDescriptionPairType" id="uuid-9084c2d2-4b7e-4189-a784-a86a4469MVc5">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A condition upon which an organization may wish to capitalize to benefit its stakeholders.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:Threat
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A condition that may negatively
impact the achievement of a goal.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#NameDescriptionPairType
Type stratml:NameDescriptionPairType
Properties
content complex
Used by
Element stratml:SWOT
Model
Children stratml:Description, stratml:Name
Instance

<stratml:Threat xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:Threat>
Source

<xsd:element name="Threat" type="stratml:NameDescriptionPairType" id="uuid-9084c2d2-4b7e-4189-a784-a86a4469Mwe8">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A condition that may negatively impact the achievement of a goal.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:PESTLE
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

Political, economic, social,
technological, legal, and environmental factors.
Diagram
DiagramPart3_20260718_xsd.tmp#PoliticalFactorPart3_20260718_xsd.tmp#EconomicFactorPart3_20260718_xsd.tmp#SocialFactorPart3_20260718_xsd.tmp#TechnologicalFactorPart3_20260718_xsd.tmp#LegalFactorPart3_20260718_xsd.tmp#EnvironmentalFactor
Properties
content complex
Used by
Model
Children stratml:EconomicFactor, stratml:EnvironmentalFactor, stratml:LegalFactor, stratml:PoliticalFactor, stratml:SocialFactor, stratml:TechnologicalFactor
Instance

<stratml:PESTLE xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:PoliticalFactor>{0,unbounded}</stratml:PoliticalFactor>
  <stratml:EconomicFactor>{0,unbounded}</stratml:EconomicFactor>
  <stratml:SocialFactor>{0,unbounded}</stratml:SocialFactor>
  <stratml:TechnologicalFactor>{0,unbounded}</stratml:TechnologicalFactor>
  <stratml:LegalFactor>{0,unbounded}</stratml:LegalFactor>
  <stratml:EnvironmentalFactor>{0,unbounded}</stratml:EnvironmentalFactor>
</stratml:PESTLE>
Source

<xsd:element name="PESTLE" id="uuid-A9278A5B-2E6A-4ad4-31AB-838E021062Fd">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">Political, economic, social, technological, legal, and environmental factors.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="stratml:PoliticalFactor" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="stratml:EconomicFactor" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="stratml:SocialFactor" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="stratml:TechnologicalFactor" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="stratml:LegalFactor" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="stratml:EnvironmentalFactor" minOccurs="0" maxOccurs="unbounded"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>
Element stratml:PoliticalFactor
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A condition influenced by politics
that may affect the achievement of a goal.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#NameDescriptionPairType
Type stratml:NameDescriptionPairType
Properties
content complex
Used by
Element stratml:PESTLE
Model
Children stratml:Description, stratml:Name
Instance

<stratml:PoliticalFactor xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:PoliticalFactor>
Source

<xsd:element name="PoliticalFactor" type="stratml:NameDescriptionPairType" id="uuid-9084c2d2-4b7e-4189-a784-a86a4469ca72">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A condition influenced by politics that may affect the achievement of a goal.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:EconomicFactor
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A condition in the economy that may
affect the achievement of a goal.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#NameDescriptionPairType
Type stratml:NameDescriptionPairType
Properties
content complex
Used by
Element stratml:PESTLE
Model
Children stratml:Description, stratml:Name
Instance

<stratml:EconomicFactor xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:EconomicFactor>
Source

<xsd:element name="EconomicFactor" type="stratml:NameDescriptionPairType" id="uuid-9084c2d2-4b7e-4189-a784-a86a4469cc77">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A condition in the economy that may affect the achievement of a goal.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:SocialFactor
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A condition in society that may
affect the achievement of a goal.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#NameDescriptionPairType
Type stratml:NameDescriptionPairType
Properties
content complex
Used by
Element stratml:PESTLE
Model
Children stratml:Description, stratml:Name
Instance

<stratml:SocialFactor xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:SocialFactor>
Source

<xsd:element name="SocialFactor" type="stratml:NameDescriptionPairType" id="uuid-9084c2d2-4b7e-4189-a784-a86a446999cc">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A condition in society that may affect the achievement of a goal.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:TechnologicalFactor
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A condition associated with
technology that may affect the achievement of a goal.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#NameDescriptionPairType
Type stratml:NameDescriptionPairType
Properties
content complex
Used by
Element stratml:PESTLE
Model
Children stratml:Description, stratml:Name
Instance

<stratml:TechnologicalFactor xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:TechnologicalFactor>
Source

<xsd:element name="TechnologicalFactor" type="stratml:NameDescriptionPairType" id="uuid-9084c2d2-4b7e-4189-a784-a86a446988bb">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A condition associated with technology that may affect the achievement of a goal.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:LegalFactor
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A matter of law that may affect the
achievement of a goal.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#NameDescriptionPairType
Type stratml:NameDescriptionPairType
Properties
content complex
Used by
Element stratml:PESTLE
Model
Children stratml:Description, stratml:Name
Instance

<stratml:LegalFactor xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:LegalFactor>
Source

<xsd:element name="LegalFactor" type="stratml:NameDescriptionPairType" id="uuid-9084c2d2-47Be-4189-a784-a4a68469cc77">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A matter of law that may affect the achievement of a goal.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:EnvironmentalFactor
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A condition in the environment that
may affect the achievement of a goal.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#NameDescriptionPairType
Type stratml:NameDescriptionPairType
Properties
content complex
Used by
Element stratml:PESTLE
Model
Children stratml:Description, stratml:Name
Instance

<stratml:EnvironmentalFactor xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:Name>{0,1}</stratml:Name>
  <stratml:Description>{0,1}</stratml:Description>
</stratml:EnvironmentalFactor>
Source

<xsd:element name="EnvironmentalFactor" type="stratml:NameDescriptionPairType" id="uuid-9084c2d2-4b7e-4189-a784-a4a68469cc77">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A condition in the environment that may affect the achievement of a goal.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:FiveLevelType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A subjective rating scale comprised
of five levels.
Diagram
DiagramPart3_20260718_xsd.tmp#FiveLevelTypeType
Type stratml:FiveLevelTypeType
Properties
content simple
Facets
enumeration 1
enumeration 2
enumeration 3
enumeration 4
enumeration 5
Used by
Source

<xsd:element name="FiveLevelType" type="stratml:FiveLevelTypeType" id="uuid-1dec8252-6561-3714-afce-677c1cf24bf3">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A subjective rating scale comprised of five levels.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:RatingType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A multi-level scale by which the
quality of an actual result may be evaluated in relation to the desired target
result.
Diagram
DiagramPart3_20260718_xsd.tmp#TwoLevelTypePart3_20260718_xsd.tmp#ThreeLevelTypePart3_20260718_xsd.tmp#FiveLevelTypePart3_20260718_xsd.tmp#SevenLevelTypePart3_20260718_xsd.tmp#TenLevelType
Properties
content complex
Model
Children stratml:FiveLevelType, stratml:SevenLevelType, stratml:TenLevelType, stratml:ThreeLevelType, stratml:TwoLevelType
Instance

<stratml:RatingType xmlns:stratml="urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport">
  <stratml:TwoLevelType>{0,1}</stratml:TwoLevelType>
  <stratml:ThreeLevelType>{0,1}</stratml:ThreeLevelType>
  <stratml:FiveLevelType>{0,1}</stratml:FiveLevelType>
  <stratml:SevenLevelType>{0,1}</stratml:SevenLevelType>
  <stratml:TenLevelType>{0,1}</stratml:TenLevelType>
</stratml:RatingType>
Source

<xsd:element name="RatingType" id="uuid-A9278A5B-2E6A-4ad4-BA31-838E0210FD26">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A multi-level scale by which the quality of an actual result may be evaluated in relation to the desired target result.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:choice>
      <xsd:element ref="stratml:TwoLevelType" minOccurs="0"/>
      <xsd:element ref="stratml:ThreeLevelType" minOccurs="0"/>
      <xsd:element ref="stratml:FiveLevelType" minOccurs="0"/>
      <xsd:element ref="stratml:SevenLevelType" minOccurs="0"/>
      <xsd:element ref="stratml:TenLevelType" minOccurs="0"/>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>
Element stratml:TwoLevelType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A subjective rating scale comprised
of two levels.
Diagram
DiagramPart3_20260718_xsd.tmp#TwoLevelTypeType
Type stratml:TwoLevelTypeType
Properties
content simple
Facets
enumeration 0
enumeration 1
Used by
Source

<xsd:element name="TwoLevelType" type="stratml:TwoLevelTypeType" id="uuid-1decf852-1656-4173-afce-677c1cf24bf3">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A subjective rating scale comprised of two levels.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:ThreeLevelType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A subjective rating scale comprised
of three levels.
Diagram
DiagramPart3_20260718_xsd.tmp#ThreeLevelTypeType
Type stratml:ThreeLevelTypeType
Properties
content simple
Facets
enumeration 0
enumeration 1
enumeration 2
Used by
Source

<xsd:element name="ThreeLevelType" type="stratml:ThreeLevelTypeType" id="uuid-1dec258f-6561-4173-afce-677c1cf24bf3">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A subjective rating scale comprised of three levels.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:SevenLevelType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A subjective rating scale comprised
of seven levels.
Diagram
DiagramPart3_20260718_xsd.tmp#SevenLevelTypeType
Type stratml:SevenLevelTypeType
Properties
content simple
Facets
enumeration 1
enumeration 2
enumeration 3
enumeration 4
enumeration 5
enumeration 6
enumeration 7
Used by
Source

<xsd:element name="SevenLevelType" type="stratml:SevenLevelTypeType" id="uuid-1decf852-6561-4173-afce-677c1cf24bf3">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A subjective rating scale comprised of seven levels.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Element stratml:TenLevelType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A subjective rating scale comprised
of ten levels.
Diagram
DiagramPart3_20260718_xsd.tmp#TenLevelTypeType
Type stratml:TenLevelTypeType
Properties
content simple
Facets
enumeration 1
enumeration 2
enumeration 3
enumeration 4
enumeration 5
enumeration 6
enumeration 7
enumeration 8
enumeration 9
enumeration 10
Used by
Source

<xsd:element name="TenLevelType" type="stratml:TenLevelTypeType" id="uuid-1dec258f-1656-4173-afce-677c1cf24bf3">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A subjective rating scale comprised of ten levels.</xsd:documentation>
  </xsd:annotation>
</xsd:element>
Complex Type stratml:CategorizationType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A complex element enabling the
naming of a taxonomy and the designation of a category from the taxonomy.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#Category
Used by
Model
Children stratml:Category, stratml:Name
Source

<xsd:complexType name="CategorizationType">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A complex element enabling the naming of a taxonomy and the designation of a category from the taxonomy.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element ref="stratml:Name" minOccurs="0"/>
    <xsd:element ref="stratml:Category" maxOccurs="unbounded"/>
  </xsd:sequence>
</xsd:complexType>
Complex Type stratml:CategoryType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A complex element enabling the
naming of a category within a taxonomy as well as the association of an identifier with the
category.
Diagram
DiagramPart3_20260718_xsd.tmp#IdentifierPart3_20260718_xsd.tmp#Name
Used by
Model
Children stratml:Identifier, stratml:Name
Source

<xsd:complexType name="CategoryType">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A complex element enabling the naming of a category within a taxonomy as well as the association of an identifier with the category.</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:element ref="stratml:Identifier"/>
    <xsd:element ref="stratml:Name"/>
  </xsd:sequence>
</xsd:complexType>
Complex Type stratml:ContactInformationType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Diagram
DiagramPart3_20260718_xsd.tmp#IdentifierPart3_20260718_xsd.tmp#GivenNamePart3_20260718_xsd.tmp#SurnamePart3_20260718_xsd.tmp#PhoneNumberPart3_20260718_xsd.tmp#EmailAddress
Used by
Model
Children stratml:EmailAddress, stratml:GivenName, stratml:Identifier, stratml:PhoneNumber, stratml:Surname
Source

<xsd:complexType name="ContactInformationType" id="uuid-b07e1586-6676-4212-8a6a-4a365a4977ec">
  <xsd:sequence>
    <xsd:element ref="stratml:Identifier" id="uuid-3AA1341B-C021-43a9-94D3-5AE78BEA9B90" minOccurs="0"/>
    <xsd:element ref="stratml:GivenName" id="uuid-be2396f2-cdf9-498c-82ef-1ce1b9209086" minOccurs="0"/>
    <xsd:element ref="stratml:Surname" id="uuid-3d5034e0-328a-46a0-b5fb-776e070cca5f" minOccurs="0"/>
    <xsd:element ref="stratml:PhoneNumber" id="uuid-160fe527-9d1d-423a-bc95-ad48f3257276" minOccurs="0"/>
    <xsd:element ref="stratml:EmailAddress" id="uuid-9e408a3b-034a-486f-b045-7cc74505b44d" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>
Complex Type stratml:CompetencyType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

A complex element enabling the
naming and description of competencies with attribution as being one of three
types.
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#NameDescriptionPairTypePart3_20260718_xsd.tmp#CompetencyType_CompetencyTypeType
Type extension of stratml:NameDescriptionPairType
Type hierarchy
Used by
Model
Children stratml:Description, stratml:Name
Attributes
QName Type Use Annotation
CompetencyTypeType restriction of xsd:string required

documentation

An attribute enabling the
designation of competencies as being one of three types.
Source

<xsd:complexType name="CompetencyType">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">A complex element enabling the naming and description of competencies with attribution as being one of three types.</xsd:documentation>
  </xsd:annotation>
  <xsd:complexContent>
    <xsd:extension base="stratml:NameDescriptionPairType">
      <xsd:attribute name="CompetencyTypeType" use="required">
        <xsd:annotation>
          <xsd:documentation source="documentation" xml:lang="EN">An attribute enabling the designation of competencies as being one of three types.</xsd:documentation>
        </xsd:annotation>
        <xsd:simpleType>
          <xsd:restriction base="xsd:string">
            <xsd:enumeration value="Core"/>
            <xsd:enumeration value="Supporting"/>
            <xsd:enumeration value="Ancillary"/>
          </xsd:restriction>
        </xsd:simpleType>
      </xsd:attribute>
    </xsd:extension>
  </xsd:complexContent>
</xsd:complexType>
Complex Type stratml:NameDescriptionPairType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#Description
Used by
Model
Children stratml:Description, stratml:Name
Source

<xsd:complexType name="NameDescriptionPairType">
  <xsd:sequence>
    <xsd:element ref="stratml:Name" minOccurs="0"/>
    <xsd:element ref="stratml:Description" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type stratml:SpecialOrganizationTypeType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Board_of_Directors
enumeration Committee
enumeration Conference
enumeration Consortium
enumeration Cooperative
enumeration Exposition
enumeration Family
enumeration Individual
enumeration Initiative
enumeration Investment
enumeration Program
enumeration Project
enumeration Student
enumeration System
enumeration Virtual
enumeration Work_Group
enumeration Other
Used by
Source

<xsd:simpleType name="SpecialOrganizationTypeType">
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Board_of_Directors"/>
    <xsd:enumeration value="Committee"/>
    <xsd:enumeration value="Conference"/>
    <xsd:enumeration value="Consortium"/>
    <xsd:enumeration value="Cooperative"/>
    <xsd:enumeration value="Exposition"/>
    <xsd:enumeration value="Family"/>
    <xsd:enumeration value="Individual"/>
    <xsd:enumeration value="Initiative"/>
    <xsd:enumeration value="Investment"/>
    <xsd:enumeration value="Program"/>
    <xsd:enumeration value="Project"/>
    <xsd:enumeration value="Student"/>
    <xsd:enumeration value="System"/>
    <xsd:enumeration value="Virtual"/>
    <xsd:enumeration value="Work_Group"/>
    <xsd:enumeration value="Other"/>
  </xsd:restriction>
</xsd:simpleType>
Complex Type stratml:GoalType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Diagram
DiagramPart3_20260718_xsd.tmp#GoalType_PriorityPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#IdentifierPart3_20260718_xsd.tmp#SequenceIndicatorPart3_20260718_xsd.tmp#StakeholderPart3_20260718_xsd.tmp#OtherInformationPart3_20260718_xsd.tmp#PlacePart3_20260718_xsd.tmp#AuthorityPart3_20260718_xsd.tmp#SuccessFactor
Used by
Element stratml:Goal
Model
Children stratml:Authority, stratml:Description, stratml:Identifier, stratml:Name, stratml:OtherInformation, stratml:Place, stratml:SequenceIndicator, stratml:Stakeholder, stratml:SuccessFactor
Attributes
QName Type Use Annotation
Priority restriction of xsd:string optional

documentation

An attribute enabling the
designation of goals as being of one of three qualitative degrees of
importance.
Source

<xsd:complexType name="GoalType" id="uuid-3604D5A8-2B17-41b1-88E9-F71866006E23">
  <xsd:sequence>
    <xsd:element ref="stratml:Name" id="uuid-0b19dff1-b98e-470f-ac80-92a755d8aa37"/>
    <xsd:element ref="stratml:Description" id="uuid-b454f40f-721c-42a1-ba43-3a56ef37766e"/>
    <xsd:element ref="stratml:Identifier" id="uuid-f0543f96-c5be-4d77-a86d-d2f04122a5ea" minOccurs="0"/>
    <xsd:element ref="stratml:SequenceIndicator" id="uuid-af23adab-d9d6-46b2-a627-8cd2547d8192" minOccurs="0"/>
    <xsd:element ref="stratml:Stakeholder" id="uuid-93270a8d-75b5-4052-974e-19e5bd9c5931" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element ref="stratml:OtherInformation" id="uuid-edd05fe8-91ca-4511-8f5b-c360ac07ebe8" minOccurs="0"/>
    <!-- New to Part 3. Because Objective is appended by the global Goal element's
         extension of GoalType, the following Goal-level Part 3 elements must precede
         all Objective children in instance documents. -->
    <xsd:element ref="stratml:Place" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element ref="stratml:Authority" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element ref="stratml:SuccessFactor" minOccurs="0" maxOccurs="unbounded"/>
  </xsd:sequence>
  <!-- New to Part 3: -->
  <xsd:attribute name="Priority" use="optional">
    <xsd:annotation>
      <xsd:documentation source="documentation" xml:lang="EN">An attribute enabling the designation of goals as being of one of three qualitative degrees of importance.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleType>
      <xsd:restriction base="xsd:string">
        <xsd:enumeration value="To_Be_Determined"/>
        <xsd:enumeration value="High"/>
        <xsd:enumeration value="Medium"/>
        <xsd:enumeration value="Low"/>
      </xsd:restriction>
    </xsd:simpleType>
  </xsd:attribute>
</xsd:complexType>
Complex Type stratml:ObjectiveType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Diagram
DiagramPart3_20260718_xsd.tmp#NamePart3_20260718_xsd.tmp#DescriptionPart3_20260718_xsd.tmp#IdentifierPart3_20260718_xsd.tmp#SequenceIndicatorPart3_20260718_xsd.tmp#StakeholderPart3_20260718_xsd.tmp#OtherInformationPart3_20260718_xsd.tmp#PerformanceIndicatorPart3_20260718_xsd.tmp#ManagementChallengePart3_20260718_xsd.tmp#Categorization
Used by
Model
Children stratml:Categorization, stratml:Description, stratml:Identifier, stratml:ManagementChallenge, stratml:Name, stratml:OtherInformation, stratml:PerformanceIndicator, stratml:SequenceIndicator, stratml:Stakeholder
Source

<xsd:complexType name="ObjectiveType" id="uuid-A494052D-115D-4452-B49B-DC0FF3089A79">
  <xsd:sequence>
    <xsd:element ref="stratml:Name" id="uuid-36e8852b-2761-460d-b911-0c01c7bdecd3" minOccurs="0"/>
    <xsd:element ref="stratml:Description" id="uuid-687daacf-3b29-4e91-b1e7-8e9191d17338" minOccurs="0"/>
    <xsd:element ref="stratml:Identifier" id="uuid-8e762c3e-85b6-4f5c-93d1-a2513667507f" minOccurs="0"/>
    <xsd:element ref="stratml:SequenceIndicator" id="uuid-abbc7e84-6083-4c89-9c8e-30a9d09616d2" minOccurs="0"/>
    <xsd:element ref="stratml:Stakeholder" id="uuid-3c9c0a38-4d9b-4641-a0f0-f05e722e6f4c" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element ref="stratml:OtherInformation" id="uuid-75d113e5-ae18-4c6f-87ca-1811557471fb" minOccurs="0"/>
    <xsd:element ref="stratml:PerformanceIndicator" id="uuid-87F2E84B-2216-4D56-9B58-250CD8D52CB8" minOccurs="0" maxOccurs="unbounded"/>
    <!-- New to Part 3: -->
    <xsd:element ref="stratml:ManagementChallenge" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element ref="stratml:Categorization" minOccurs="0" maxOccurs="unbounded"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type stratml:RelationshipTypeType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Broader_Than
enumeration Peer_To
enumeration Narrower_Than
Used by
Source

<xsd:simpleType name="RelationshipTypeType">
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Broader_Than"/>
    <xsd:enumeration value="Peer_To"/>
    <xsd:enumeration value="Narrower_Than"/>
  </xsd:restriction>
</xsd:simpleType>
Simple Type stratml:DateTypeType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Diagram
DiagramPart3_20260718_xsd.tmp#EmptyStringType
Type union of(xsd:date, stratml:EmptyStringType)
Used by
Source

<xsd:simpleType name="DateTypeType">
  <xsd:union memberTypes="xsd:date stratml:EmptyStringType"/>
</xsd:simpleType>
Simple Type stratml:NumberOfUnitsType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Diagram
DiagramPart3_20260718_xsd.tmp#NumberOfUnitsTypeType
Type stratml:NumberOfUnitsTypeType
Type hierarchy
Used by
Source

<xsd:simpleType name="NumberOfUnitsType">
  <xsd:restriction base="stratml:NumberOfUnitsTypeType"/>
</xsd:simpleType>
Simple Type stratml:NumberOfUnitsTypeType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Diagram
DiagramPart3_20260718_xsd.tmp#EmptyStringType
Type union of(xsd:decimal, stratml:EmptyStringType)
Used by
Source

<xsd:simpleType name="NumberOfUnitsTypeType">
  <xsd:union memberTypes="xsd:decimal stratml:EmptyStringType"/>
</xsd:simpleType>
Simple Type stratml:ValueChainStageType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Outcome
enumeration Output_Processing
enumeration Output
enumeration Input_Processing
enumeration Input
Used by
Source

<xsd:simpleType name="ValueChainStageType">
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Outcome"/>
    <xsd:enumeration value="Output_Processing"/>
    <xsd:enumeration value="Output"/>
    <xsd:enumeration value="Input_Processing"/>
    <xsd:enumeration value="Input"/>
  </xsd:restriction>
</xsd:simpleType>
Simple Type stratml:PerformanceIndicatorTypeType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration Quantitative
enumeration Qualitative
Used by
Source

<xsd:simpleType name="PerformanceIndicatorTypeType">
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value="Quantitative"/>
    <xsd:enumeration value="Qualitative"/>
  </xsd:restriction>
</xsd:simpleType>
Complex Type stratml:AdministrativeInformationType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Diagram
DiagramPart3_20260718_xsd.tmp#IdentifierPart3_20260718_xsd.tmp#StartDatePart3_20260718_xsd.tmp#EndDatePart3_20260718_xsd.tmp#PublicationDatePart3_20260718_xsd.tmp#SourcePart3_20260718_xsd.tmp#Submitter
Used by
Model
Children stratml:EndDate, stratml:Identifier, stratml:PublicationDate, stratml:Source, stratml:StartDate, stratml:Submitter
Source

<xsd:complexType name="AdministrativeInformationType" id="uuid-32864389-230a-4f77-9c09-c083386fcad9">
  <xsd:sequence>
    <xsd:element ref="stratml:Identifier" id="uuid-A36D9558-9F96-4972-91FA-B4F311A7735D" minOccurs="0"/>
    <xsd:element ref="stratml:StartDate" id="uuid-9bafe734-ca3f-4d53-bbb1-2d904412a09e" minOccurs="0"/>
    <xsd:element ref="stratml:EndDate" id="uuid-63418B7E-0941-4964-9523-BC6034048730" minOccurs="0"/>
    <xsd:element ref="stratml:PublicationDate" id="uuid-6ebfbf00-e08c-4118-8980-aba1f91c3936" minOccurs="0"/>
    <xsd:element ref="stratml:Source" id="uuid-f2e49267-3f70-497a-827e-3b65644badd8" minOccurs="0"/>
    <!-- Submitter moved here from root PerformancePlanOrReport, conforming to Part 1.
         minOccurs="0" so that administrative dates may be recorded without requiring
         a submitter entry. -->
    <xsd:element ref="stratml:Submitter" id="uuid-f2e49267-3q70-497a-827e-3b65622badd8" minOccurs="0"/>
  </xsd:sequence>
</xsd:complexType>
Simple Type stratml:EmptyStringType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Diagram
Diagram
Type restriction of xsd:string
Facets
enumeration
Source

<xsd:simpleType name="EmptyStringType">
  <xsd:restriction base="xsd:string">
    <xsd:enumeration value=""/>
  </xsd:restriction>
</xsd:simpleType>
Simple Type stratml:FiveLevelTypeType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Diagram
Diagram
Type restriction of xsd:nonNegativeInteger
Facets
enumeration 1
enumeration 2
enumeration 3
enumeration 4
enumeration 5
Used by
Source

<xsd:simpleType name="FiveLevelTypeType">
  <xsd:restriction base="xsd:nonNegativeInteger">
    <xsd:enumeration value="1"/>
    <xsd:enumeration value="2"/>
    <xsd:enumeration value="3"/>
    <xsd:enumeration value="4"/>
    <xsd:enumeration value="5"/>
  </xsd:restriction>
</xsd:simpleType>
Simple Type stratml:TwoLevelTypeType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Diagram
Diagram
Type restriction of xsd:nonNegativeInteger
Facets
enumeration 0
enumeration 1
Used by
Source

<xsd:simpleType name="TwoLevelTypeType">
  <xsd:restriction base="xsd:nonNegativeInteger">
    <xsd:enumeration value="0"/>
    <xsd:enumeration value="1"/>
  </xsd:restriction>
</xsd:simpleType>
Simple Type stratml:ThreeLevelTypeType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Diagram
Diagram
Type restriction of xsd:nonNegativeInteger
Facets
enumeration 0
enumeration 1
enumeration 2
Used by
Source

<xsd:simpleType name="ThreeLevelTypeType">
  <xsd:restriction base="xsd:nonNegativeInteger">
    <xsd:enumeration value="0"/>
    <xsd:enumeration value="1"/>
    <xsd:enumeration value="2"/>
  </xsd:restriction>
</xsd:simpleType>
Simple Type stratml:SevenLevelTypeType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Diagram
Diagram
Type restriction of xsd:nonNegativeInteger
Facets
enumeration 1
enumeration 2
enumeration 3
enumeration 4
enumeration 5
enumeration 6
enumeration 7
Used by
Source

<xsd:simpleType name="SevenLevelTypeType">
  <xsd:restriction base="xsd:nonNegativeInteger">
    <xsd:enumeration value="1"/>
    <xsd:enumeration value="2"/>
    <xsd:enumeration value="3"/>
    <xsd:enumeration value="4"/>
    <xsd:enumeration value="5"/>
    <xsd:enumeration value="6"/>
    <xsd:enumeration value="7"/>
  </xsd:restriction>
</xsd:simpleType>
Simple Type stratml:TenLevelTypeType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Diagram
Diagram
Type restriction of xsd:nonNegativeInteger
Facets
enumeration 1
enumeration 2
enumeration 3
enumeration 4
enumeration 5
enumeration 6
enumeration 7
enumeration 8
enumeration 9
enumeration 10
Used by
Source

<xsd:simpleType name="TenLevelTypeType">
  <xsd:restriction base="xsd:nonNegativeInteger">
    <xsd:enumeration value="1"/>
    <xsd:enumeration value="2"/>
    <xsd:enumeration value="3"/>
    <xsd:enumeration value="4"/>
    <xsd:enumeration value="5"/>
    <xsd:enumeration value="6"/>
    <xsd:enumeration value="7"/>
    <xsd:enumeration value="8"/>
    <xsd:enumeration value="9"/>
    <xsd:enumeration value="10"/>
  </xsd:restriction>
</xsd:simpleType>
Simple Type stratml:PercentageType
Namespace urn:ISO:std:iso:17469:tech:xsd:PerformancePlanOrReport
Annotations

documentation

An element enabling the designation
of an individual qualitative performance indicator as comprising from zero to 100 percent
of an overall subjective performance assessment rating based upon the sum of a set of one or
more qualitative performance indicators totaling 100 percent.
Diagram
Diagram
Type restriction of xsd:string
Facets
pattern ((100)|(\d{0,2}))
Source

<xsd:simpleType name="PercentageType">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">An element enabling the designation of an individual qualitative performance indicator as comprising from zero to 100 percent of an overall subjective performance assessment rating based upon the sum of a set of one or more qualitative performance indicators totaling 100 percent.</xsd:documentation>
  </xsd:annotation>
  <xsd:restriction base="xsd:string">
    <xsd:pattern value="((100)|(\d{0,2}))"/>
  </xsd:restriction>
</xsd:simpleType>
Attribute stratml:Role / @RASCI
Namespace No namespace
Annotations

documentation

An attribute enabling the
designation of a role as being of one of five types, commonly known as
RASCI.
Type restriction of xsd:string
Properties
use optional
Facets
enumeration Responsible
enumeration Accountable
enumeration Supportive
enumeration Consulted
enumeration Informed
Used by
Element stratml:Role
Source

<xsd:attribute name="RASCI" use="optional">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">An attribute enabling the designation of a role as being of one of five types, commonly known as RASCI.</xsd:documentation>
  </xsd:annotation>
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="Responsible"/>
      <xsd:enumeration value="Accountable"/>
      <xsd:enumeration value="Supportive"/>
      <xsd:enumeration value="Consulted"/>
      <xsd:enumeration value="Informed"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:attribute>
Attribute stratml:Stakeholder / @StakeholderTypeType
Namespace No namespace
Annotations

documentation

An attribute indicating whether
the stakeholder is an individual person, an organization, a generic group of people,
or an AI agent.
Type restriction of xsd:string
Properties
use optional
Facets
enumeration Person
enumeration Organization
enumeration Generic_Group
enumeration AI_Agent
Used by
Source

<xsd:attribute name="StakeholderTypeType" use="optional" id="uuid-F64605F4-D372-487C-9C5D-D68F1031BA86">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">An attribute indicating whether the stakeholder is an individual person, an organization, a generic group of people, or an AI agent.</xsd:documentation>
  </xsd:annotation>
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="Person"/>
      <xsd:enumeration value="Organization"/>
      <xsd:enumeration value="Generic_Group"/>
      <xsd:enumeration value="AI_Agent"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:attribute>
Attribute stratml:CompetencyType / @CompetencyTypeType
Namespace No namespace
Annotations

documentation

An attribute enabling the
designation of competencies as being one of three types.
Type restriction of xsd:string
Properties
use required
Facets
enumeration Core
enumeration Supporting
enumeration Ancillary
Used by
Complex Type stratml:CompetencyType
Source

<xsd:attribute name="CompetencyTypeType" use="required">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">An attribute enabling the designation of competencies as being one of three types.</xsd:documentation>
  </xsd:annotation>
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="Core"/>
      <xsd:enumeration value="Supporting"/>
      <xsd:enumeration value="Ancillary"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:attribute>
Attribute stratml:SpecialOrganizationType / @OtherOrganizationTypeName
Namespace No namespace
Annotations

documentation

An attribute enabling the
naming of a type of organization not yet included in the enumerated listing of
special types not commonly considered to be organizations.
Type xsd:string
Properties
content simple
Used by
Source

<xsd:attribute name="OtherOrganizationTypeName" type="xsd:string">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">An attribute enabling the naming of a type of organization not yet included in the enumerated listing of special types not commonly considered to be organizations.</xsd:documentation>
  </xsd:annotation>
</xsd:attribute>
Attribute stratml:SuccessFactor / @Criticality
Namespace No namespace
Annotations

documentation

An attribute enabling the
designation of success factors as being of one of two types based upon relative
importance.
Type restriction of xsd:string
Properties
use optional
Facets
enumeration Critical
enumeration Contributory
Used by
Source

<xsd:attribute name="Criticality" use="optional">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">An attribute enabling the designation of success factors as being of one of two types based upon relative importance.</xsd:documentation>
  </xsd:annotation>
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="Critical"/>
      <xsd:enumeration value="Contributory"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:attribute>
Attribute stratml:SuccessFactor / @InternalOrExternal
Namespace No namespace
Annotations

documentation

An attribute enabling the
designation of success factors and driving forces as being within or outside of the
direct control of the organization compiling the plan or report.
Type restriction of xsd:string
Properties
use optional
Facets
enumeration Internal
enumeration External
Used by
Source

<xsd:attribute name="InternalOrExternal" use="optional">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">An attribute enabling the designation of success factors and driving forces as being within or outside of the direct control of the organization compiling the plan or report.</xsd:documentation>
  </xsd:annotation>
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="Internal"/>
      <xsd:enumeration value="External"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:attribute>
Attribute stratml:GoalType / @Priority
Namespace No namespace
Annotations

documentation

An attribute enabling the
designation of goals as being of one of three qualitative degrees of
importance.
Type restriction of xsd:string
Properties
use optional
Facets
enumeration To_Be_Determined
enumeration High
enumeration Medium
enumeration Low
Used by
Complex Type stratml:GoalType
Source

<xsd:attribute name="Priority" use="optional">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">An attribute enabling the designation of goals as being of one of three qualitative degrees of importance.</xsd:documentation>
  </xsd:annotation>
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="To_Be_Determined"/>
      <xsd:enumeration value="High"/>
      <xsd:enumeration value="Medium"/>
      <xsd:enumeration value="Low"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:attribute>
Attribute stratml:Relationship / @RelationshipType
Namespace No namespace
Type stratml:RelationshipTypeType
Properties
content simple
Facets
enumeration Broader_Than
enumeration Peer_To
enumeration Narrower_Than
Used by
Source

<xsd:attribute name="RelationshipType" type="stratml:RelationshipTypeType" id="uuid-424EE340-4A1E-4791-B964-4CC3072BC69F"/>
Attribute stratml:PerformanceIndicator / @ValueChainStage
Namespace No namespace
Type stratml:ValueChainStageType
Properties
content simple
Facets
enumeration Outcome
enumeration Output_Processing
enumeration Output
enumeration Input_Processing
enumeration Input
Used by
Source

<xsd:attribute name="ValueChainStage" type="stratml:ValueChainStageType" id="uuid-6203C7DD-4373-47B4-A331-063F14B35668"/>
Attribute stratml:PerformanceIndicator / @PerformanceIndicatorType
Namespace No namespace
Type stratml:PerformanceIndicatorTypeType
Properties
content simple
Facets
enumeration Quantitative
enumeration Qualitative
Used by
Source

<xsd:attribute name="PerformanceIndicatorType" type="stratml:PerformanceIndicatorTypeType" id="uuid-5607C853-43F1-43E5-BA82-99E08F59AB31"/>
Attribute stratml:PerformanceIndicator / @Keyness
Namespace No namespace
Annotations

documentation

An attribute enabling
designation of the importance of a performance indicator, such as for monitoring by
the top managers of the organization.
Type restriction of xsd:string
Properties
use optional
Facets
enumeration To_Be_Determined
enumeration Key
enumeration Secondary
enumeration Ancillary
Used by
Source

<xsd:attribute name="Keyness" use="optional">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">An attribute enabling designation of the importance of a performance indicator, such as for monitoring by the top managers of the organization.</xsd:documentation>
  </xsd:annotation>
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="To_Be_Determined"/>
      <xsd:enumeration value="Key"/>
      <xsd:enumeration value="Secondary"/>
      <xsd:enumeration value="Ancillary"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:attribute>
Attribute stratml:ManagementChallenge / @Probability
Namespace No namespace
Annotations

documentation

An attribute documenting the
likelihood that a management challenge will occur.
Type restriction of xsd:string
Properties
use required
Facets
enumeration To_Be_Determined
enumeration High
enumeration Medium
enumeration Low
Used by
Source

<xsd:attribute name="Probability" use="required">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">An attribute documenting the likelihood that a management challenge will occur.</xsd:documentation>
  </xsd:annotation>
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="To_Be_Determined"/>
      <xsd:enumeration value="High"/>
      <xsd:enumeration value="Medium"/>
      <xsd:enumeration value="Low"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:attribute>
Attribute stratml:ManagementChallenge / @Impact
Namespace No namespace
Annotations

documentation

An attribute documenting the
scope of the effect of a management challenge, if it were to occur.
Type restriction of xsd:string
Properties
use required
Facets
enumeration To_Be_Determined
enumeration High
enumeration Medium
enumeration Low
Used by
Source

<xsd:attribute name="Impact" use="required">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">An attribute documenting the scope of the effect of a management challenge, if it were to occur.</xsd:documentation>
  </xsd:annotation>
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="To_Be_Determined"/>
      <xsd:enumeration value="High"/>
      <xsd:enumeration value="Medium"/>
      <xsd:enumeration value="Low"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:attribute>
Attribute stratml:DrivingForce / @InhibitingOrEnabling
Namespace No namespace
Type restriction of xsd:string
Properties
use optional
Facets
enumeration Enabling
enumeration Inhibiting
Used by
Source

<xsd:attribute name="InhibitingOrEnabling" use="optional">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="Enabling"/>
      <xsd:enumeration value="Inhibiting"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:attribute>
Attribute stratml:DrivingForce / @InternalOrExternal
Namespace No namespace
Type restriction of xsd:string
Properties
use optional
Facets
enumeration Internal
enumeration External
Used by
Source

<xsd:attribute name="InternalOrExternal" use="optional">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="Internal"/>
      <xsd:enumeration value="External"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:attribute>
Attribute stratml:PerformancePlanOrReport / @Type
Namespace No namespace
Type restriction of xsd:string
Properties
use required
Facets
enumeration Strategic_Plan
enumeration Performance_Plan
enumeration Performance_Report
Used by
Source

<xsd:attribute name="Type" use="required" id="uuid-F64605F4-D373-487C-9C5D-D68F1031BA86">
  <xsd:simpleType>
    <xsd:restriction base="xsd:string">
      <xsd:enumeration value="Strategic_Plan"/>
      <xsd:enumeration value="Performance_Plan"/>
      <xsd:enumeration value="Performance_Report"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:attribute>
Attribute stratml:PerformancePlanOrReport / @Language
Namespace No namespace
Annotations

documentation

The language tag for the text
of the document, expressed as an XML language value such as en, en-US, pt-BR, or
zh-Hant.
Type xsd:language
Properties
default en
Used by
Source

<xsd:attribute name="Language" type="xsd:language" default="en">
  <xsd:annotation>
    <xsd:documentation source="documentation" xml:lang="EN">The language tag for the text of the document, expressed as an XML language value such as en, en-US, pt-BR, or zh-Hant.</xsd:documentation>
  </xsd:annotation>
</xsd:attribute>
XML Schema documentation generated by ® XML Editor.
